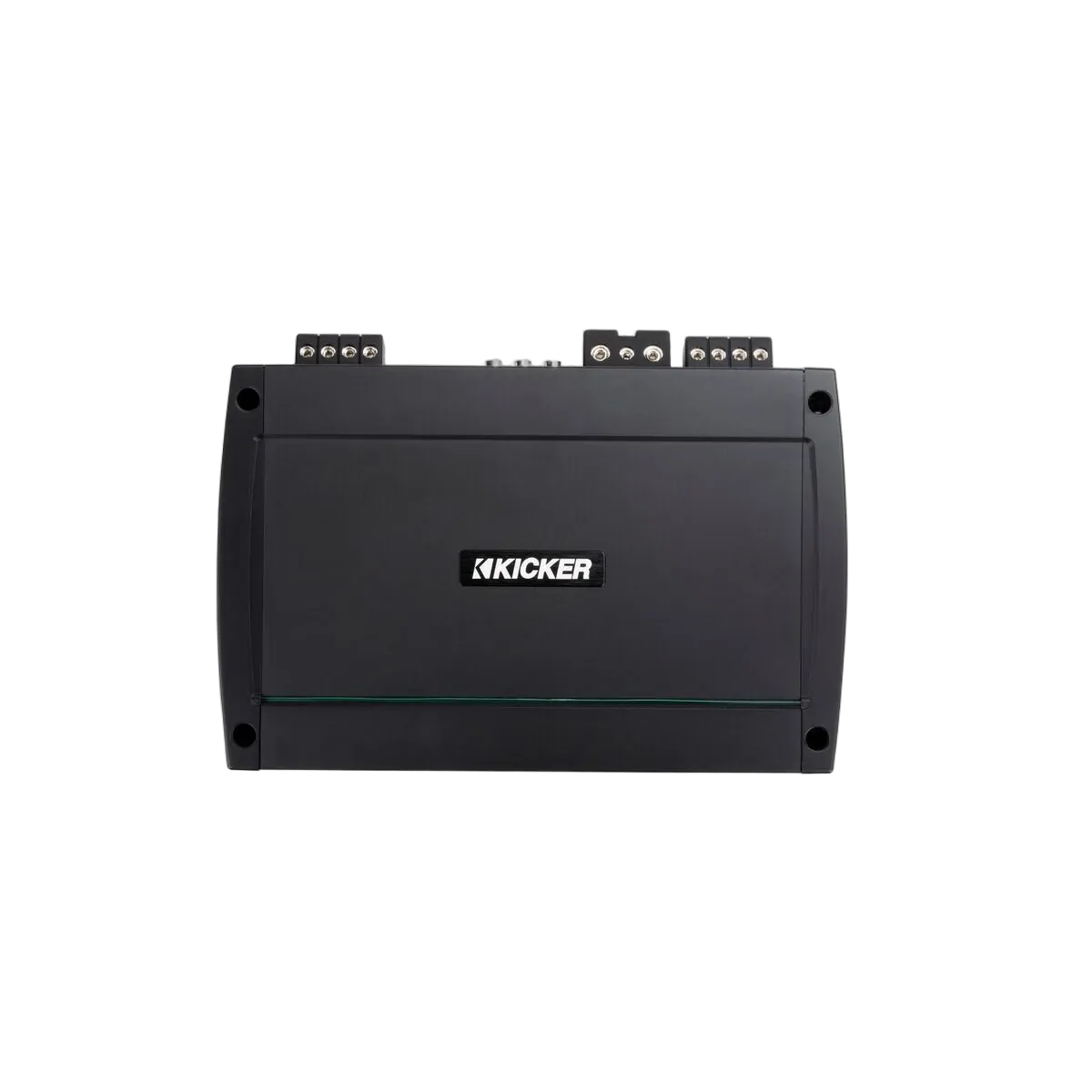

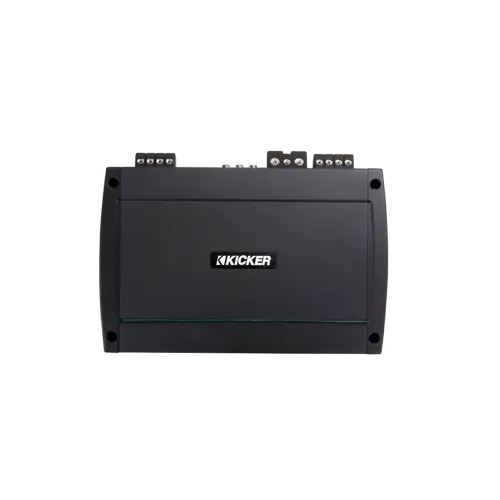

KXMA800.4 Marine Amplifier

Gain, crossover and bass-boost controls are protected behind a gasket-sealed panel, as is the control cover hiding the settings, creating a water-resistant barrier to key controls. KickEQ™ delivers as much as an 6dB of extra bump with a simple turn of the knob. A powerful 24dB crossover is also included, letting you quickly tune your system to perfection. A full-range RCA output allows you to easily add another amplifier without running new signal cable to your KICKER KMC Media Center.

Class D Amplifier
Gain Control With “Gain Match” LED Indicator
FIT2™ (Fail-safe Integration Technology) Circuitry
Variable 24dB Crossover
DSP-Controlled Preamp
KickEQ™ 6dB Variable Bass Boost
ABYC/NMMA-Compliant Power Terminals
Conformal-Coated Circuit Boards
Easy Access to Settings behind Gasket-Sealed Cover Panel
Black Anodized Aluminum Chassis
Top-Mounted, Teal LED Light Pipe
Stainless-Steel Mounting Hardware Included
Want setup help? Go to KICKER U for a free woofer-and-amp configuration app!

This KXMA amplifier delivers as much as 200 watts into four full-range channels, or 400 watts into two sets of bridged channels. See below for more details.

Specifications
POWER [watts/ch], 2 OHM STEREO
200 x 4
POWER [watts/ch], 4 OHM STEREO
100 x 4
POWER [watts/ch], 4 OHM BRIDGED MONO:
400 x 2
DYNAMIC POWER [watts]:
1100
DIMENSIONS [in] all models 2-1/8H x 8-5/16W x ___L
11-9/16
DIMENSIONS [cm] all models 5.4H x 21.0W x ___L
29.4
FREQUENCY RESPONSE [Hz]
10-20k, +0/-1dB
INPUT SENSITIVITY
High Level 250mV-10V, Low Level 125mV-5V
SIGNAL-TO-NOISE RATIO
>95dB, a-weighted, re: rated power
ACTIVE CROSSOVER
(amp 1) 24dB/octave, variable 10-5kHz w/ 10x switch, selectable high pass, low pass or all pass
(amp 2) 24dB/octave, variable high pass 10-500Hz, variable low pass 40-5kHz w/10x switch, selectable high pass, low pass, all pass or band pass
KickEQ™ BOOST
Variable 0-6dB, centered @ 40Hz (only on amp 2)
COMES WITH WIRED REMOTE
No
RMS Power test @ 14.4v @ </- 1% THD+N, Audio Precision® APx500 analyzer, see www.kicker.com/amp-power-testing for details.

Dynamic Power test @ 14.4v @ </- 10% THD+N, Audio Precision APx500 analyzer, see www.kicker.com/amp-power-testing for details.
