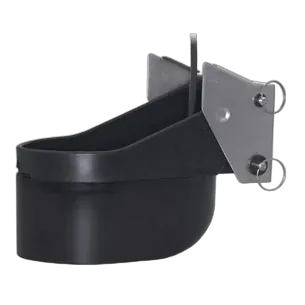

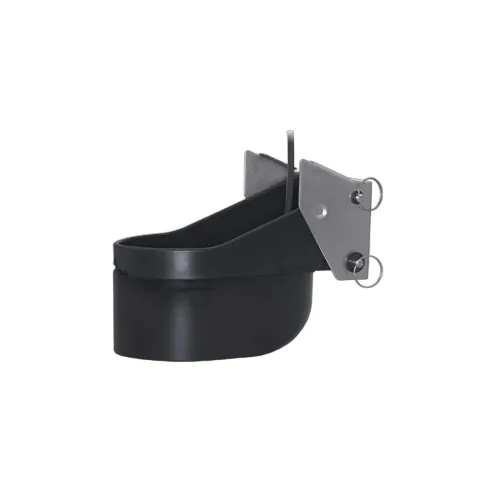

TM275LH-W - Plastic 1kW Transom-Mounted Low/High-Wide Depth and Temperature transducer. 9-pin connector and 10m cable.

Features

• Depth and fast-response water-temperature sensor
• 1 kW for great deep-water performance from the low frequency
• Low frequency: 42 to 65 kHz
• 25° to 16° beam
• Maximum depth of 914 m (3,000')
• High frequency: 150 to 250 kHz
• 25° constant beamwidth
• Maximum depth of 914 m (3,000')
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Transom mount, urethane transducer
• Stainless steel, kick-up bracket locks in the “up” position and will not damage the transom

Specifications

• Weight: 4 kg (8.9 lb.)
• Recommended Boat Length: 10 m (32') and up
• Transom Angle: 3° to 21°
• Acoustic Window: Urethane
• Includes: Stainless steel bracket and mounting hardware
• Transducer Element: Eight internal broadband ceramic assemblies
