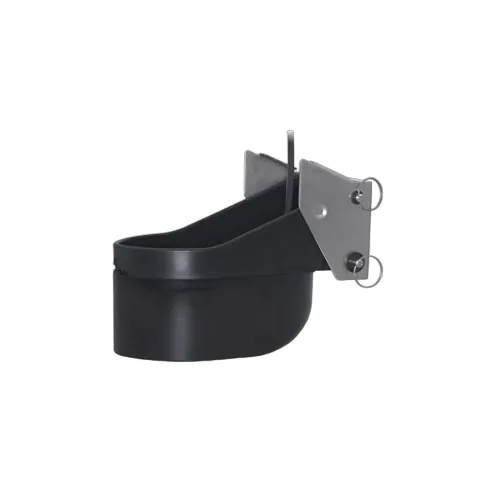

TM185HW - Plastic 1kW Transom-Mounted High-Wide Chirp Depth and Temperature transducer. 9-pin connector and 10m cable.

Features

• Depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 152 m (500')
• High frequency: 150 to 250 kHz
• Constant 25° beamwidth
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• High-frequency band yields excellent shallow to mid-depth performance, bottom detail, and fish-target separation
• High wide beamwidth delivers more coverage for detecting fish in the upper-water column
• Urethane transom transducer
• Stainless steel bracket for installation on outboard and I/O powered boats
• Recommended for use on planing and displacement hulls
• Exclusive Xducer ID® technology

Specifications

• Weight: 4.2 kg (9.2 lb.)
• Recommended Boat Length: Up to 10 m (32')
• Transom Angle: 3° to 21°
• Acoustic Window: Urethane
• Includes: Adjustable, stainless steel bracket and mounting hardware
• Transducer Element: One internal broadband ceramic assembly
