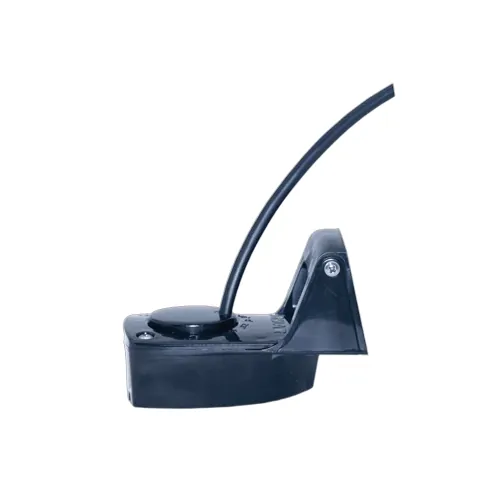

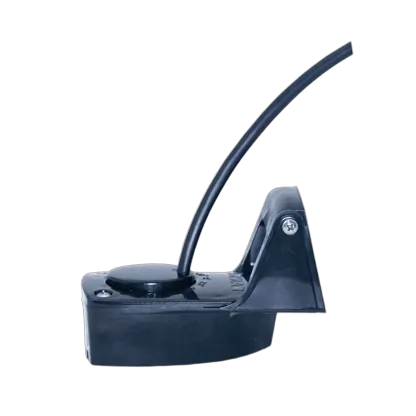

TM150M - Plastic 300W Transom Mount Medium-Chirp Transducer. 9pin connector and 10m cable.
The TM150M delivers a great combination of shallow and deep-water performance. Operating at a frequency range of 95 to 155 kHz, this transducer reveals fish in shallow waters and deeper depths down to 183 m (600') with ultra-clear target resolution.
The TM150M is an excellent choice for freshwater and saltwater boats up to 8 m (25').
Features
- Depth and fast-response water-temperature sensor
- 300 W with depth performance to 183 m (600')
- Medium frequency: 95 to 155 kHz
- 26° to 17° beamwidth put more energy on targets for great target separation
- 60 kHz of total bandwidth from one transducer ideal for inshore or coastal fishing
- Narrow beam angles are perfect for detecting fish holding close to structures and suspended fish
- Ideal for freshwater, inshore or coastal fishing in shallow to medium depths
- Plastic release bracket protects housing from frontal impact
- Recommended for outboard and I/O powered boats
- Recommended for planing hulls
Specifications
Weight: | 0.45 kg (1.1 lb.) |
Recommended Boat Length | Up to 8 m (25') |
Transom Angle | 3° to 20° |
Acoustic Window | Urethane |
Includes | Plastic transom bracket and mounting hardware |
Transducer Element | One internal broadband ceramic assembly |
SKU | 000-13944-001 |
---|---|
Barcode # | 9420024163344 |
Brand | Airmar |
Shipping Weight | 1.4000kg |
Shipping Width | 0.250m |
Shipping Height | 0.100m |
Shipping Length | 0.200m |
