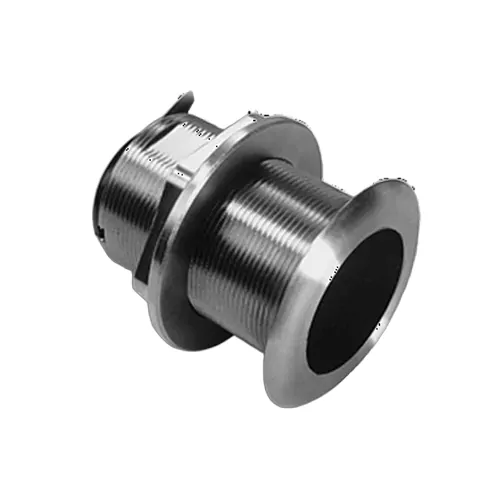

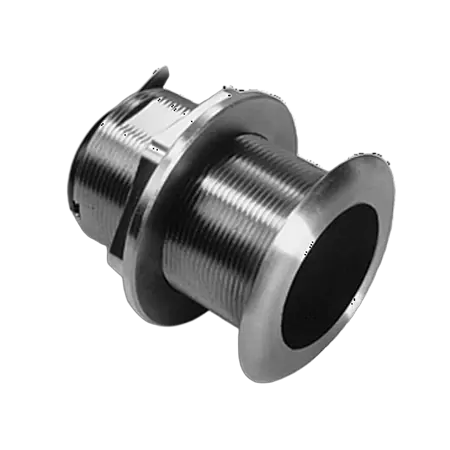

SS60 (0°) - Stainless Steel 600 W Through-Hull 50/200 kHz Depth/Temperature Sonar Transducer. Black 9pin connector and 10m (33ft) cable.

SS60 Depth/Temperature Transducer 0° Tilt

The SS60 is a Stainless Steel, thru-hull, tilted, dual-frequency, depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Features

• Depth and water temperature
• 600 W
• 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200')
• 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
• Perfect for center-console or trailered boats
• Low-profile protrusion extends only 5 mm (3/16") outside the hull
• No effect on your boat’s running performance
• Stainless steel housing for use on all hull materials

Specifications

• Weight: 1.4 kg (3 lb.)
• Recommended Boat Length: Up to 8 m (25')
• Hull Material: Compatible with all hull materials
• Hull Deadrise: 0°-7°
• Acoustic Window: Urethane

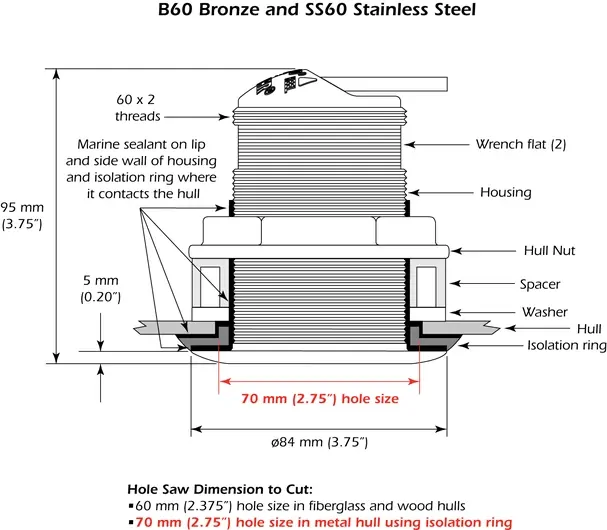

• Hole Diameter: 60 mm (2-3/8") (fiberglass or wood hull), 70 mm or 2-3" (metal hull)
