SS260 - Stainless Steel 1kW Fairing-Block Through-Hull 50/200 kHz Depth/Temperature Transducer. Black 9pin connector and 10m (33ft) cable.

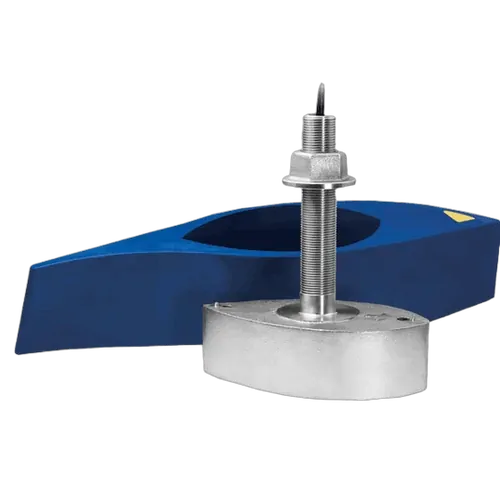

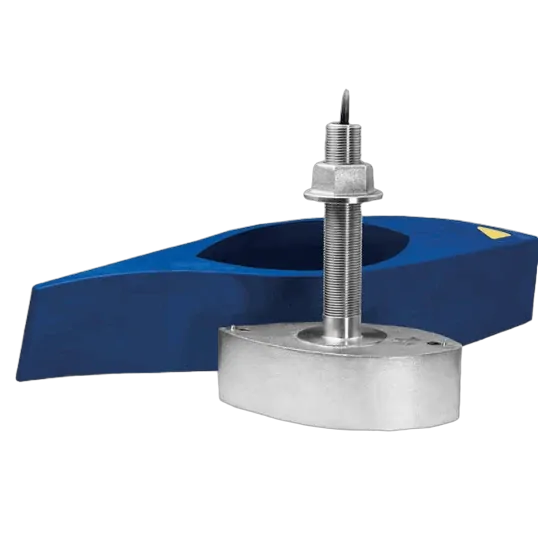

SS260 Depth/Temperature Transducer
The combination of power and sensitivity has made this the high-performing transducer of choice with conventional fishfinders. Operating at 50 and 200 kHz, the narrow, 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz is excellent at deep-water detection, and the wide, 19° beam yields broad coverage under the boat.
SS260 features a stainless steel housing which is compatible with all hull materials. Installed with the included, custom-fitting, high-performance fairing, the SS260 gives excellent results at speeds up to 30 knots (34 MPH).
Features
- Depth and fast-response water-temperature sensor
- 1 kW Dual-frequency element
- 50 kHz with a 19° beamwidth for depth performance to 762 m (2,500')
- 200 kHz with a 6° beamwidth for depth performance to 294 m (1,000')
- Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual-transmission-line fishfinders
- Stainless steel housing with high-performance fairing for optimal performance speed
- Also available in transom (TM260) and in-hull (M260).
Specifications
- Weight: 7.3 kg (16 lb.)
- Recommended Boat Length: Over 9 m (30')
- Hull Material: Compatible with all hull materials
- Hull Deadrise: Up to 20° with fairing
- Acoustic Window: Urethane

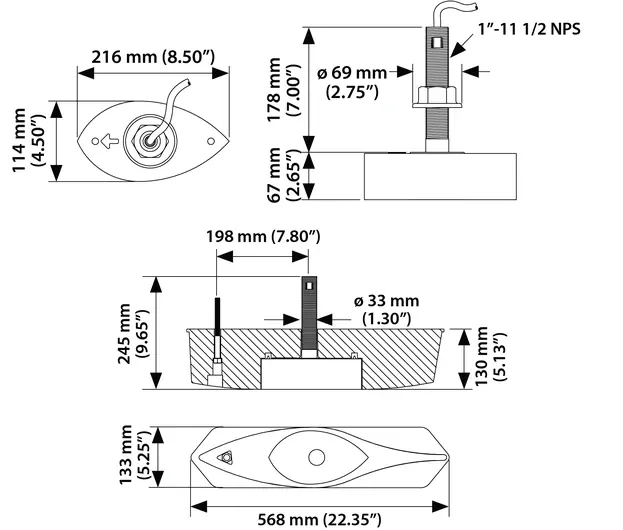

- Hole Diameter:
- Fiberglass or wood hull—33 mm or 1-5/16"
- Metal hull—35 mm or 1-3/8"
- Includes: High-performance fairing and mounting hardware
Transducer Specifications
Frequency | 50/200 kHz |
Power Rating | 1kW |
Speed Sensor | No |
Temperature Sensor | Yes |
Mounting Style | Stainless Steel Thru-Hull |
Beamwidth | 50 kHz—19°, 200 kHz—6° |
Q at 50 kHz—8 Q at 200 kHz—8
SKU | 000-13783-001 |
---|---|
Barcode # | 9420024161944 |
Brand | Airmar |
Shipping Weight | 11.1000kg |
Shipping Width | 0.648m |
Shipping Height | 0.178m |
Shipping Length | 0.457m |
