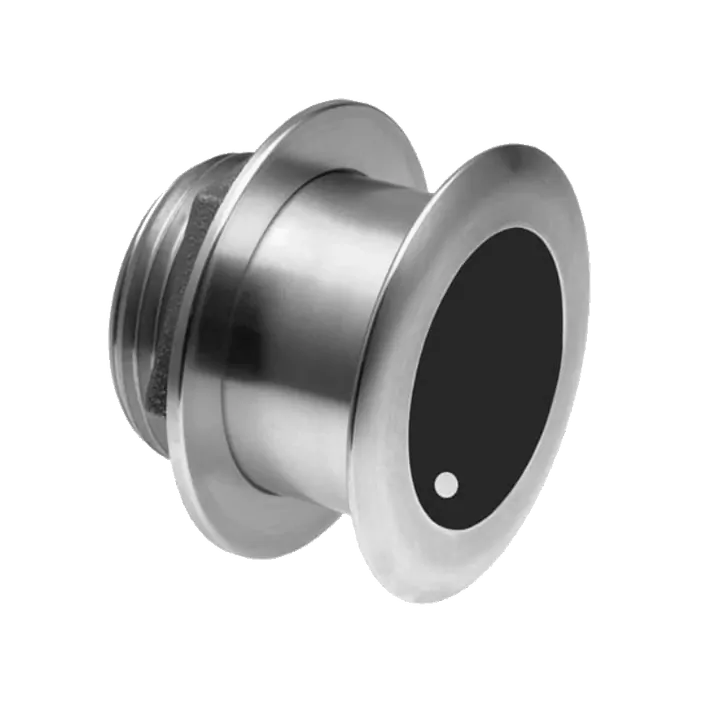

SS175L - Stainless Steel 1kW Low-CHIRP Through Hull Depth/Temperature Transducer. 9pin connector and 10m (33ft) cable.

Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band is the deep-water performer delivering excellent coverage and tracking. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.

The SS175L transmits across the Low-Chirp frequency 40 to 60 kHz

Tilted Element™ transducers have the ceramic element fixed at a 20°, 12° or 0° angle within the housing. The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The SS175L is available in three Tilted Element models:

  • Fixed 20° tilted version for 16° to 24° hull deadrise
  • Fixed 12° tilted version for 8° to 15° hull deadrise
  • Fixed 0° tilted version for 0° to 7° hull deadrise

Features

  • Depth and fast-response water-temperature sensor
  • 1 kW with maximum depth to 762 m (2,500')
  • Low frequency: 40 to 60 kHz
  • 32° to 21° beamwidth
  • Great deep-water performance
  • Low-profile, thru-hull housing provides good resolution at speed when installed properly
  • Stainless steel housing for use on stepped, planing or displacement hull

Specifications

Weight 2.7 kg (6 lb.)
Recommended Boat Length Up to 11 m (36')
Hull Material Compatible with all hull materials
Hull Deadrise 16-24°
Acoustic Window Urethane

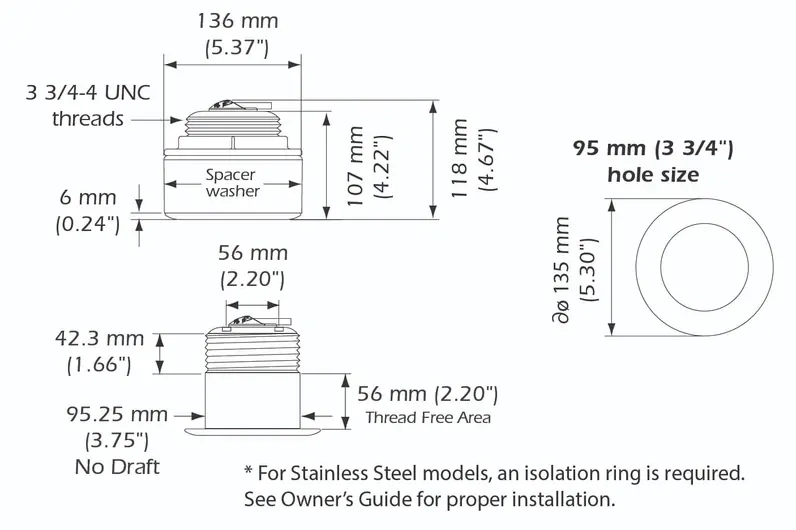

Hole Diameter Fiberglass or wood hull—95 mm or 3-3/4"
Hole Diameter Metal hull—105 mm or 4-1/8"
Transducer Element Seven internal broadband ceramic assemblies
SKU 000-13776-001
Barcode # 9420024161876
Brand Airmar
Shipping Weight 5.2000kg
Shipping Width 0.267m
Shipping Height 0.122m
Shipping Length 0.188m

Airmar XSONIC Airmar SS175L (20°)

SKU: 000-13776-001
Sale price
$2,152.00
RRP $2,299.00
Earn 21,520 Outback Rewards Points
Sale price
$2,152.00
DON'T PAY RRP $2,299.00
PayPal Checkout
4 payments of $538.00

afterpay More info.

Make 4 payments of $538.00 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $538.00

Calculate Shipping
