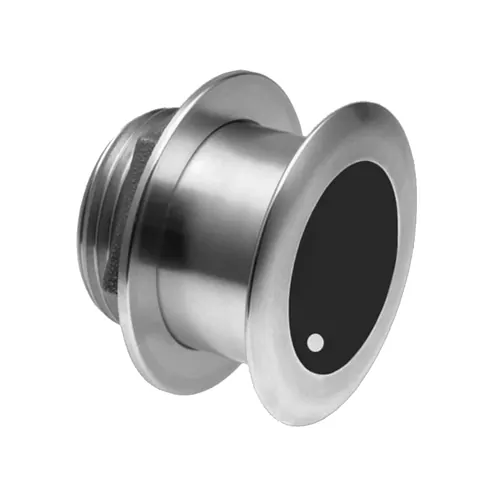

SS175H-W - Stainless Steel 1kW High-Wide-CHIRP Through Hull Depth/Temperature Transducer. 9pin connector and 10m (33ft) cable.
Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam, transducer options.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500’).
Tilted Element™ transducers have the element fixed at either a 20°, 12° or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise and orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
The SS175HW transmits across the High Chirp frequency 150 to 250 kHz
The SS175HW is available in three Tilted Element models:
- Fixed 20° tilted version for 16° to 24° hull deadrise
- Fixed 12° tilted version for 8° to 15° hull deadrise
- Fixed 0° tilted version for 0° to 7° hull deadrise
Features
- Depth and fast-response water-temperature sensor
- 1 kW with a maximum depth of 152 m (500')
- High frequency: 150 to 250 kHz
- Constant 25° beam
- 100 kHz of total bandwidth from one transducer
- Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
- High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
- High wide beamwidth yields more coverage for detecting fish in the upper-water column
- Low-profile, thru-hull housing provides good resolution at speed when installed properly
- Stainless steel housing for use on stepped, planing or displacement hulls made of fiberglass, wood or metal
- Stainless steel housing for use on stepped, planing or displacement hulls
Specifications
| Weight | 2.7 kg (6 lb.) |
| Recommended Boat Length | Up to 11 m (36') |
| Hull Material | Compatible with all hull materials |
| Hull Deadrise | 8-15° |
| Acoustic Window | Urethane |

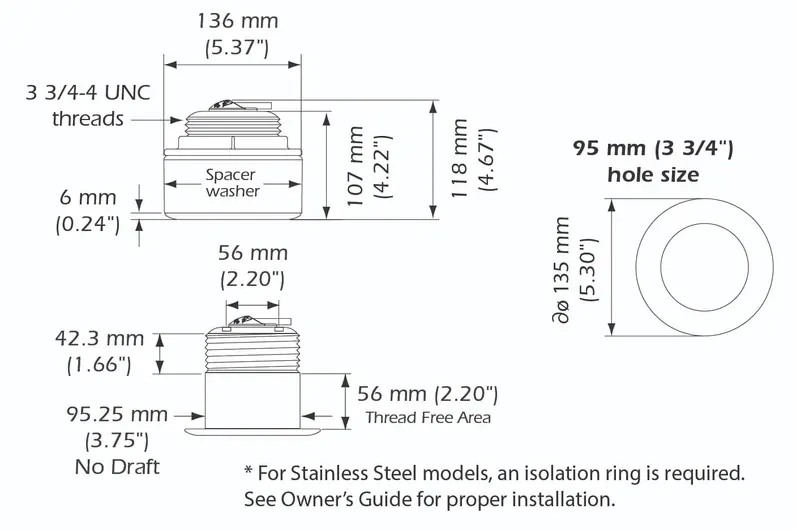

| Hole Diameter | Fiberglass or wood hull—95 mm or 3-3/4" |
| Hole Diameter | Metal hull—105 mm or 4-1/8" |
| Transducer Element | One internal ceramic assembly |
| SKU | 000-13781-001 |
|---|---|
| Barcode # | 9420024161920 |
| Brand | Airmar |
| Shipping Weight | 5.2000kg |
| Shipping Width | 0.267m |
| Shipping Height | 0.122m |
| Shipping Length | 0.188m |
