SS164 (0°) - Stainless Steel 1kW Through-Hull 50/200 kHz Depth/Temperature Sonar Transducer. Black 9pin connector and 10m (33ft) cable.

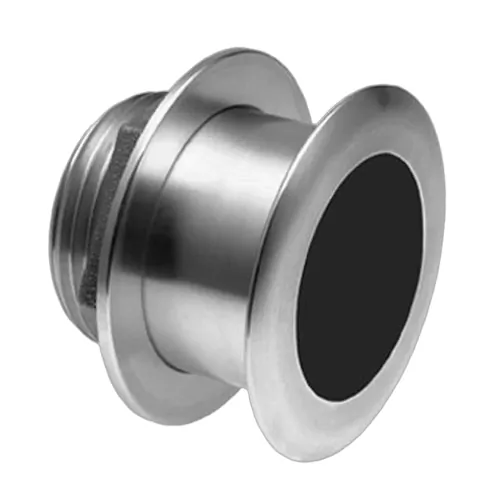

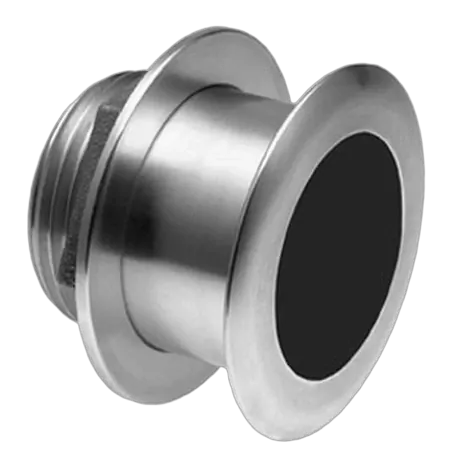

SS164 Depth/Temperature Transducer (0°)

This 1 kW, flush-mount transducer is perfect for fast, trailered, tournament and sport-fishing vessels that cannot accommodate a high-performance fairing. The flush-mounted, stainless steel housing protrudes less than 6.35 mm (1/4") outside your hull, so it can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing, providing the perfect vertical beam with maximum energy on what is directly below the boat.

Features

• Depth and fast-response water-temperature sensor
• 1 kW power for depth performance to 500 m (1,640'):
• 50 kHz with a wide 22° beam (Max 500m)
• 200 kHz with a 6° beam (Max 244m)
• Interfaces to any 600 W or 1 kW echosounder
• Engineered for center-console and trailered boats
• Low-profile design protrudes less than 6.35 mm (1/4") outside your hull
• No effect on boat’s running performance
• Stainless steel housing for use on all hull materials

Specifications

• Weight: 2.7 kg (6 lb.)
• Recommended Boat Length: Up to 11 m (35')
• Hull Material: Compatible with all hull materials
• 20° tilted version for 16° to 24° hull deadrise
• 12° tilted version for 8° to 15° hull deadrise
• 0° tilted version for 0° to 7° hull deadrise
• Acoustic Window: Urethane

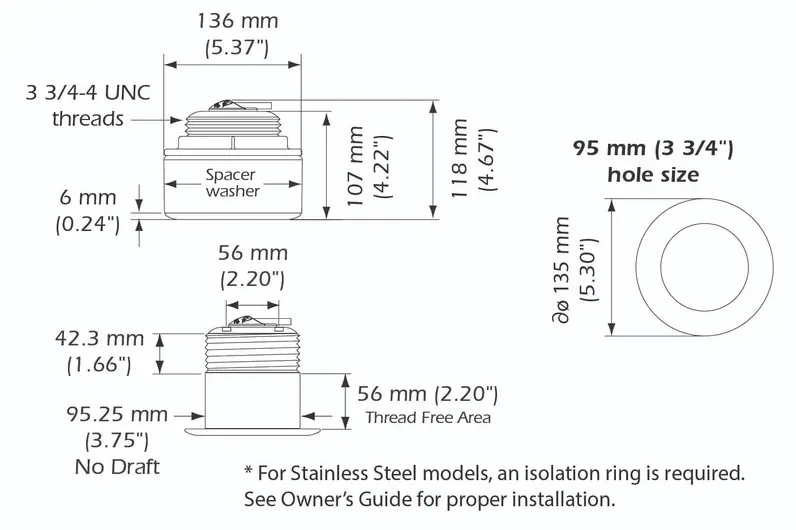

• Hole Diameter: 95 mm or 3-3/4" (fiberglass or wood hull), 105 mm or 4-1/8" (metal hull)
