P319 - Plastic 600W Thru-Hull 50/200kHz Depth/Temperature. Black 9-pin connector and 10m (33ft) cable.

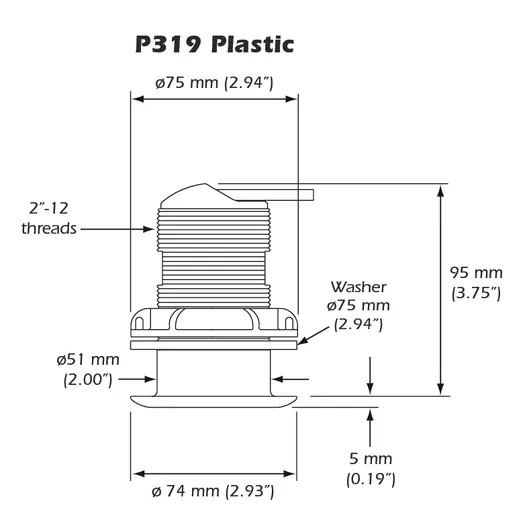

The P319 features a 50/200 kHz, dual-frequency, single, ceramic element in a low-profile, plastic housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features
- Depth only or depth and temperature
- 600 W Dual-frequency element
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Right-angle cable exit saves space and protects transducer if stepped on
- Included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Low-profile housing has minimum drag
- Plastic housing is ABYC H-27 compliant
- Stainless steel (SS60) model is also available to accommodate all hull materials.
Specifications
Weight | 0.6 kg (1.3 lb.) |
Recommended Boat Length | Up to 8 m (25') |
Hull Material | Fiberglass or metal |
Hull Deadrise | Best performance 0-7°. Can accommodate up to 12°. |
Acoustic Window | Urethane |
Hole Diameter | 51 mm (2") |
SKU | 000-13915-001 |
---|---|
Barcode # | OEBC672405 |
Brand | Airmar |
Shipping Weight | 5.0000kg |
