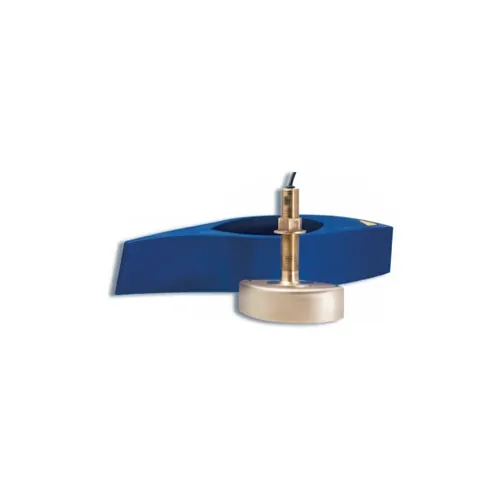

B258 - Bronze 1kW Fairing-Block Through-Hull 50/200 kHz Depth/Temperature Transducer. Black 9pin connector and 10m (33ft) cable.

The B258 is an excellent, economical, 1 kW, dual-frequency transducer for anglers. Its unique four ceramic-element construction produces an elliptical beam that covers a wider area and produces excellent target resolution. The combination of 50 and 200 kHz make it a great option for both shallow and deep-water use. The included high-performance fairing gives excellent results at speeds up to 30 knots (34 MPH).

Features

• Depth and fast-response water-temperature sensor
• 1 kW
• 50/200 kHz producing elliptical patterns for wider coverage
• 50 kHz with a 15° x 21° beamwidth (Max 671m)
• 200 kHz with a 3° x 5° beamwidth (Max 305m)
• Bronze-stem housing with high-performance fairing for optimal performance at speed
• Greater surface area resulting in better sensitivity

Specifications

• Weight: 3.6 kg (7.9 lb.)
• Recommended Boat Length: More than 9 m (30')
• Hull Material: Fiberglass or wood
• Hull Deadrise: Up to 26° with fairing
• Acoustic Window: Epoxy/urethane
• Hole Diameter: 30 mm or 1-3/16"
• Includes: High-performance fairing and mounting hardware
