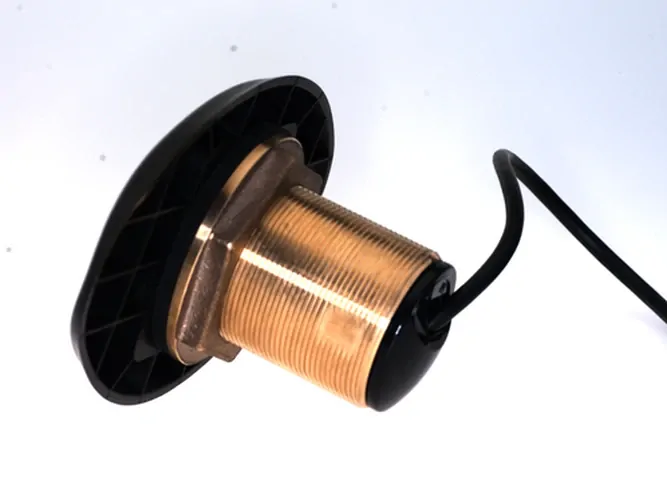

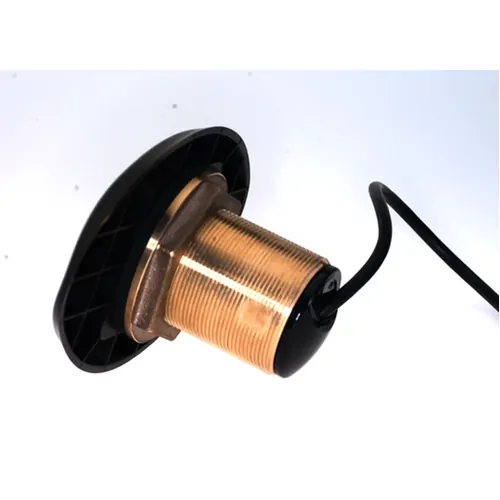

Through-Hull Bronze HDI Transducer. 50/200kHz 455/800 kHz DownScan. Black 9 Pin pin connector and 10m (33ft) cable.

Hybrid Dual Imaging™ (HDI) Bronze Through-Hull transducer.

• 50/200kHz Traditional
• 455/800kHz DownScan Imaging
• Temperature sensor
• 0° tilt for 0-7° Hullrise
• 12° tilt for 8-15° Hullrise
• 20° tilt for 16-24° Hullrise
• 10m (33ft) cable

Performance

Beam Width at -3dB

• 50kHz 45°
• 200kHz 11°
• 455kHz
• Fore to aft 2.8°
• Port to starboard 56°
• 800kHz
• Fore to aft 1.6°
• Port to starboard 32°

Connection

The transducer comes with a 10m (33ft) cable and black 9-pin connector which plugs directly into a compatible echosounder. The transducer must be selected in the installation menu on the device (HDI 50/200).
