Ark’s XO Series Jockey Wheels are the toughest, most advanced Jockey Wheels in Australia today.

Not only are they tough, but versatile also – with multiple height options, a highly manoeuvrable trailing yoke design, different yoke locking positions and now available in many sizes, weight ratings and styles.

Thoroughly tested and continually improved, the XO Series Jockey Wheels have fast become a standard within the camper trailer and caravan industry.

New Heavy duty extra long body with 750kg rating
• Increased main body length to provide extra height while retaining a heavy-duty 750kg rating
• Minimum Height of 295mm
• Maximum Height of 850mm

Heavy duty swivel clamp
• 4 bolt pivot point ensures no more bowing under weight

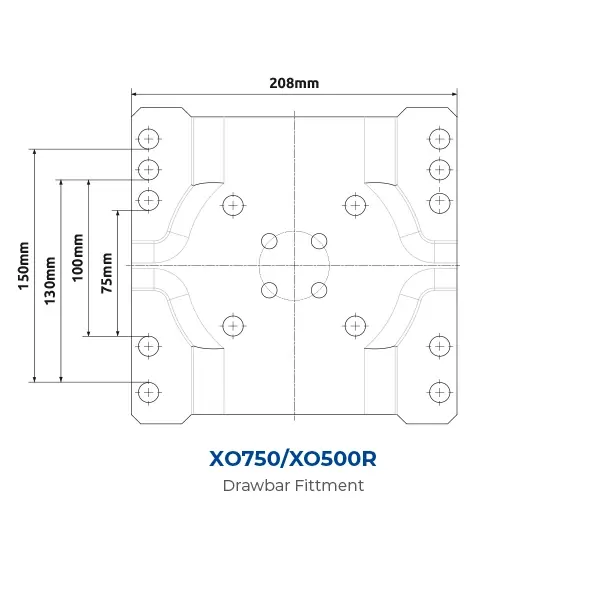

• Suitable for 75mm, 100mm, 130mm and 150mm drawbars
• Comes with mounting hardware – no more welding onto drawbars

6 x adjustable height positions
• 250mm height adjustability at each of the 4 positions, whilst maintaining a central swivel point for extra strength

Dual wheel with sealed bearings & Off road tread
• 2 x 8? Premium wheels
• Increases off road grip and spreads the load

Variable yoke lock
• Allows you to lock the yoke in 1 of 5 positions when the jockey wheel is stowed, to allow for clearance of stone guards, toolboxes, jerry can holders etc

Easy-pivot trailing yoke design
• Wheel pivots easily, even under heavy load or on soft ground

Magnetic, removable, side-winding handle
• Easier raising & lowering of trailers/caravans – away from stone guards, toolboxes or jerry can holders
• Magnetic, removable handle ensures safe stowage and prevents damage in offroad situations

Rust resistant finish
• Salt spray tested for 600 hours

SKU ORJW750XL
Barcode # ORJW750XL
Brand Ark
Shipping Weight 19.0000kg
Assembled Length 0.070m
Assembled Height 0.300m
Assembled Width 0.400m

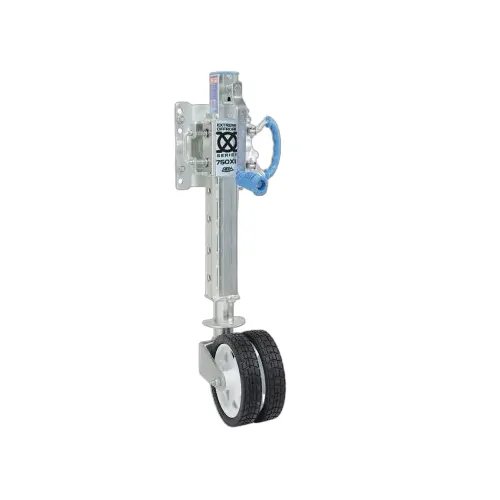

ARK XO750 Jockey Wheel XL
