WR10 Wireless Autopilot Remote. Includes NMEA2000 connected Bluetooth base station.

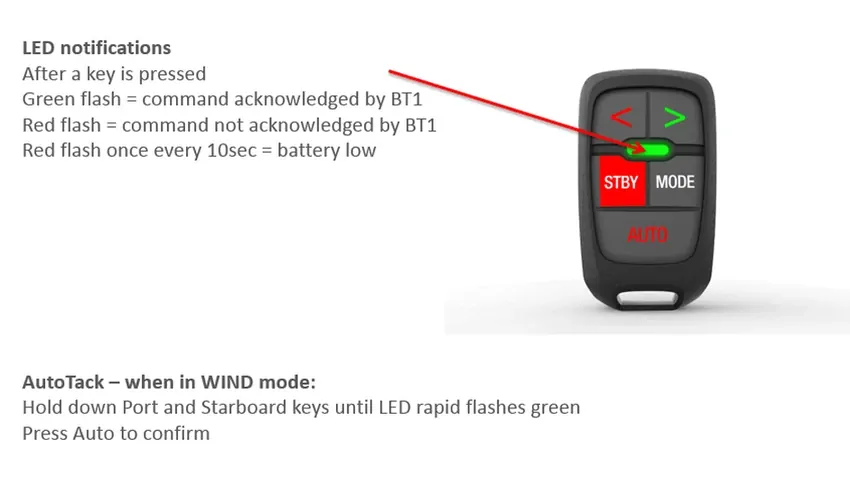

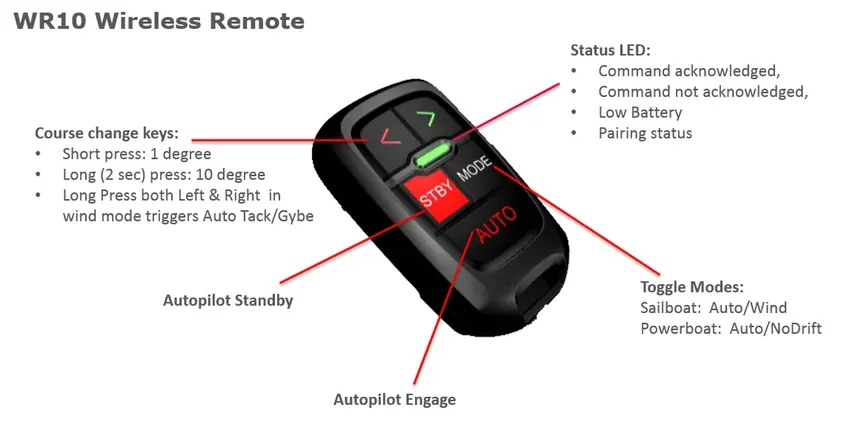

Easy to Use The WR10 uses just five simple buttons to deliver intuitive autopilot control. Steer or adjust autopilot heading in precise one-degree or quick 10-degree increments. Easily switch between full autopilot to navigate to the next waypoint on your current route, and NoDrift steering to automatically maintain your current heading. Dedicated Standby and Engage buttons mean you can be sure your autopilot is on or off with a single button press – even if you don’t know what state it’s in to begin with. The WR10’s multi-coloured LED indicates when each command has been successfully received by your autopilot, and displays a low battery warning so you’ll never be caught out.

Easy to Carry A remote is only useful when it’s in your hand. Compact and lightweight, the WR10 was designed with this in mind: the included lanyard offers a range of attachment options, or the WR10 can be wrist-mounted for even quicker and easier access. Though compact, the WR10 was also designed to maximise button size; this remote is easy to use by any fingers in any conditions.

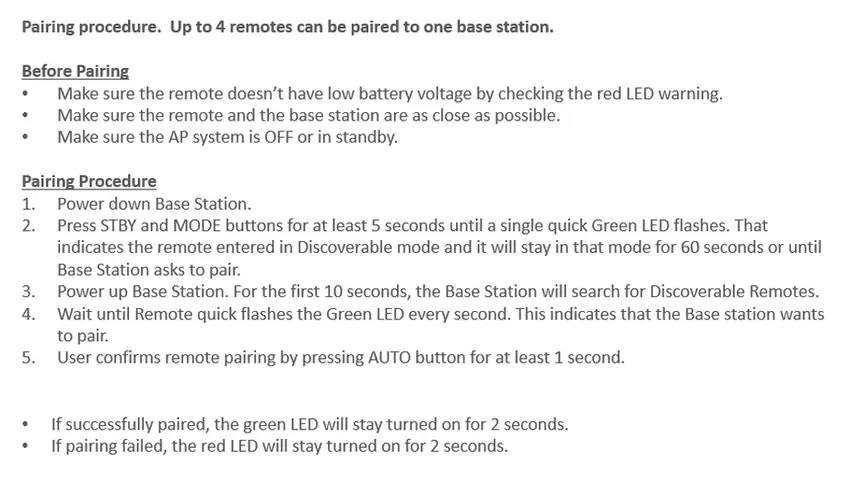

Easy to Install The WR10 is a simple do-it-yourself upgrade to any compatible Simrad autopilot system. The included BT1 Bluetooth base station quickly connects to your boat’s NMEA 2000® network with one plug: there’s no need for any complex wiring or a separate power supply. The compact and waterproof BT1 can be deck or pole mounted, offers up to 30 metres range, and can be paired with up to four WR10 remotes. One remote is included in this pack..

Key Features

  • Easy to use, simple to install
  • Compact, lightweight remote with large buttons
  • Steer or set heading in 1° and 10° increments
  • Dedicated autopilot standby and engage buttons
  • Wristband or lanyard attachment
  • Up to 30 metres range
  • Waterproof base station with deck or pole-mount options

Specifications

Base station

Power supply and interface 9-16 V DC via Micro-C network
Power consumption <100 mA at 12 V DC
Temperature Operating -25°C to +60°C, Storage: -40°C to +85°C
Humidity 66°C, 95% RH, 18 hrs
Environmental protection IPx7
In-rush current 2 A for 20 ms (@ internal 5 V)
Connection cable Micro-C drop cable 1.8 m (6 ft)
Signal wire gauge 24 AWG
Power wire gauge 22 AWG
Power wire resistance 5.7 ohms per 100 meters
Maximum current 3 A
Connector Micro-C T-Joiner

Remote controller

Power supply 2 AAA batteries
Temperature Operating -20°C to +55°C, Storage: -30°C to +70°C
Humidity 66°C, 95% RH, 18 hrs
Environmental protection IPx6, IPx7
Operation 5 buttons
Communication Bluetooth via Base station, range >30 m
Mounting Lanyard strap or wrist mounted
SKU 000-12316-001
Barcode # 9420024140062
Brand Lowrance
Shipping Weight 0.7000kg
Shipping Width 0.280m
Shipping Height 0.102m
Shipping Length 0.203m

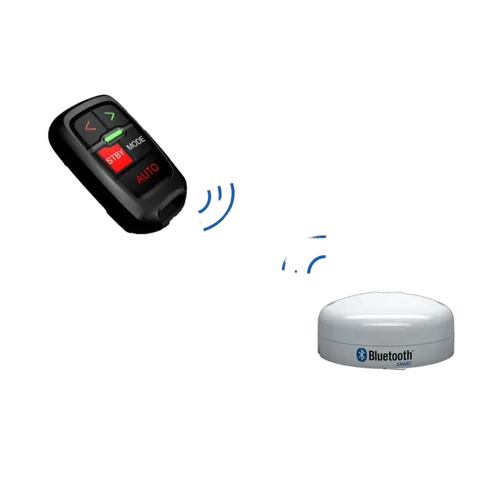

Lowrance WR10 Wireless Autopilot Remote

SKU: 000-12316-001
Sale price
$579.00
PayPal Checkout
4 payments of $144.75

afterpay More info.

Make 4 payments of $144.75 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $144.75

Calculate Shipping
