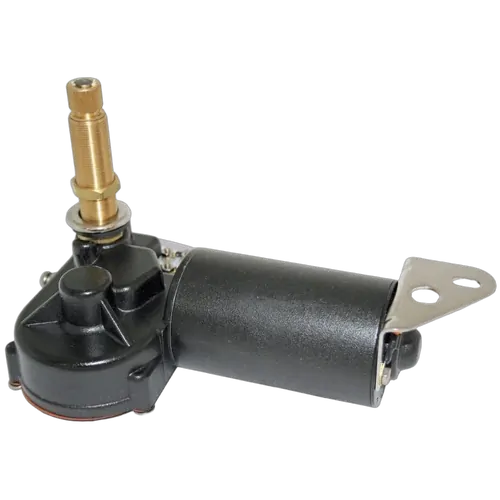

An excellent quality heavy duty wiper motor offering superior durability and performance at minimal cost.
This 2 speed, self parking wiper motor has user adjustable sweep angles (110 degrees, 80 deg etc) and is available in 12 or 24 volt versions. Adustable self park left or right.

• 2 speed (slow: 32-40 sweeps a minute / fast: 52-60 sweeps a minute) and self parking
• Adjustable sweep angles (factory set at 80° or 110° right angle drive but can be set to left angle drive) from 40° right up to 110°
• High torque motor
• Robust construction
• Shaft size - 65mm length x 16mm diameter
• Shaft to mount plate 158.5mm
• Motor diameter 52mm
• Overall height (including shaft) 119mm approx
• Overall length (excluding bracket) 165mm approx
• Overall length (including bracket) 190mm approx
• Overall width 100mm approx

Powers up to 500mm length wiper arm and blade combination.
Suitable for use with AFI wiper arm and blade combinations up to 500mm length

Pantographic arms will only function properly with wiper motor sweep angles of 80 degree or less. Wiper motor angle can be easily adjusted.
