| RWB5807 | 12 volt 63mm shaft length (plus knurled arm nut) |

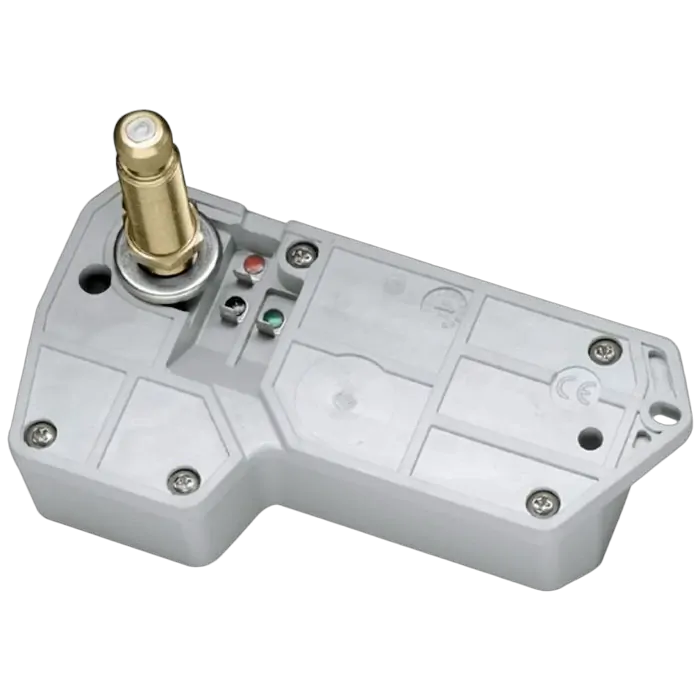

The AFI 1000 heavy duty wiper motor is fully waterproof with a thermoplastic cover and powers wiper arm & blade combinations up to 450mm (18”) length. 2 drive shaft lengths are available.
- Fully waterproof heavy duty motor

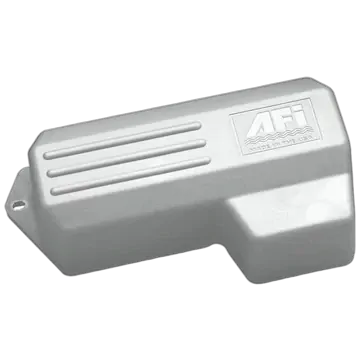

- Sealed UV resistant thermo-plastic cover
- Solid brass 16mm diameter drive shaft and knurled nut
- Single speed motor
- Coast to park feature. Adjustable right or left park.
- RF shielded circuitry
- 110 deg sweep angle. Adjustable 50, 65, 80 or 110 degrees
- Includes 5 amp fuse & fuse holder
- Full 3 year limited warranty. CE certifi ed.
No load current 0.8 to 1.2 amp. Stall current 10 amps.
Stall torque 63kgf/cm 6.2 Nm
- Motor Length : 169mm
- Width : 84mm
- Depth : 51mm - plus drive arm
12 volt only. 2 shaft lengths are available
The AFI 1000 wiper motor suits a variety of AFI arms and blades up to 450mm length as shown on following pages of this catalogue.
Pantographic arms will only function properly with wiper motor sweep angles of 80 degree or less. Wiper motor angle can be easily adjusted.
| SKU | RWB5807 |
|---|---|
| Barcode # | 35028371108 |
| Brand | AFI |
| Shipping Weight | 2.0000kg |
| Assembled Length | 0.150m |
| Assembled Height | 0.150m |
| Assembled Width | 0.150m |

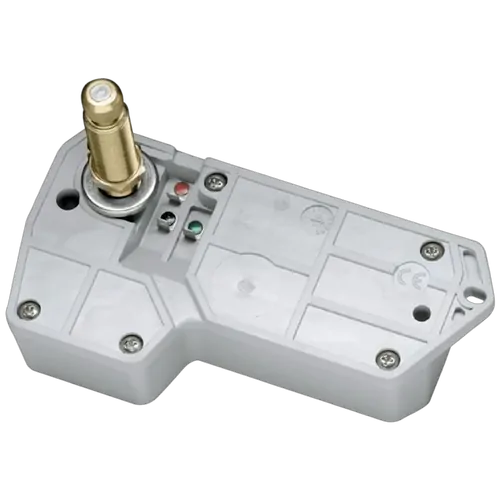

Af1000 Waterproof Windscreen Wiper Motor 110D 63mm 12V
