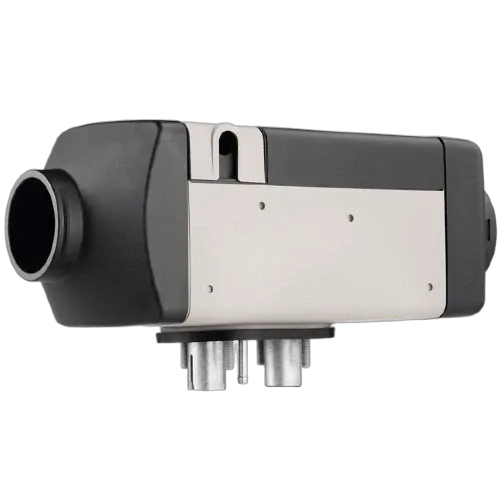

Webasto KTH-1OUTW12V-PGM 12V Diesel Heater Single Outlet with Digital Controller. 12V 2kW diesel fired Air Top heater operates quickly and powerfully, is virtually noiseless and highly economical in fuel and power consumption. Used while the vehicle is stationary, the unit not only warms the cab interior but also dehumidifies for complete comfort. Normal operation of this device would see the heater using 1L of diesel fuel every 5-6hrs. The Air Top heaters are easy to install inside the vehicle due to their compact design and come with a 2 year Australia-wide warranty.

FEATURES AND BENEFITS:

• Low energy consumption
• Quiet operation
• Diesel fuel burner
• Normal operation of this device would see the heater using 1L of diesel fuel every 5-6hrs
• Completely enclosed, no naked flame
• Compact, space saving design
• 2 Year Manufacturers Warranty

SPECIFICATIONS:

• Voltage – 12V
• Height (mm) – 121
• Width (mm) – 120
• Depth (mm)- 317
• Net Weight (kg) – 2.6 Kg
• Fuel Consumption – is 0.12-0.24L per hour (partial-full load)
• Fuel – Diesel

WHAT IS INCLUDED:

• 1x Webasto KTH-1OUTW12V-PGM 12V Diesel Heater Single Outlet with Digital Controller
• 1x Air Top 2000 STC diesel heater unit
• 1x Programmable digital multi-control
• 1x Fuel connector kit: fuel connector (1), fuel clamps (2), fuel filter (1) & exhaust end cap (1)
• 1x Fuel pump harness (7m length)
• 1x Fuel pump kit with mounting hardware
• 1x Exhaust silencer with mounting hardware
• 1x Combustion kit: combustion air silencer (1), combustion air intake (400mm) (1), hose clamp (1)
• 1x Rubber mounting gasket and air grille
• 1x 620 Ohm resistor
• 1x RV main harness

Documentation

• 1x Single outlet accessory kit:
• 1x Stainless steel floor mount heater bracket
• 1x 1m length 60mm ducting
• 4x 47-70mm ducting clamps
• 1x 45° air outlet
• 1x Vent collar
• 1x Vent 60mm flat open
• 1x 0.8m length exhaust pipe
• 1x 6m length fuel line
