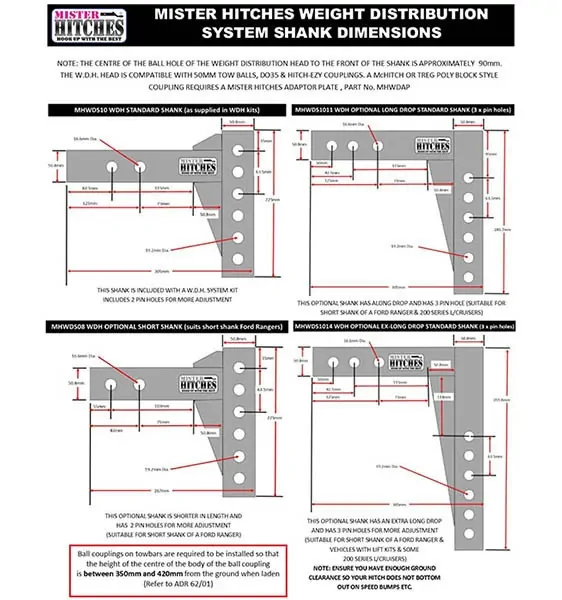

Description
- THIS SHANK HAS A SHORTER SHANK LENGTH THAN THE STANDARD SHANK (APPROX 2" SHORTER IN LENGTH)
- THIS SHANK ALSO HAS 2 X PIN HOLES (SUITABLE FOR SOME For Ford RANGERS)
- 1. CENTRE OF PIN HOLE TO END OF SHANK = 55MM, 2. CENTRE OF PIN HOLE TO END OF SHANK = 83MM
- DROP (TOP OF SHANK TO TOP OF BALL PLATFORM) = 63.5MM
- RISE (TOP OF SHANK TO TOP OF BALL PLATFORM) = 165MM
- SHANK OVERALL HEIGHT = 220MM
- SHANK IS SOLID STEEL 50.8MM SQUARE SUITS HAYMAN REESE STYLE TOWBAR RECEIVERS
Specifications
| SKU | MHWDS08 |
|---|---|
| Barcode # | 0000006794767 |
| Brand | Mister Hitches |
| Shipping Weight | 8.0000kg |

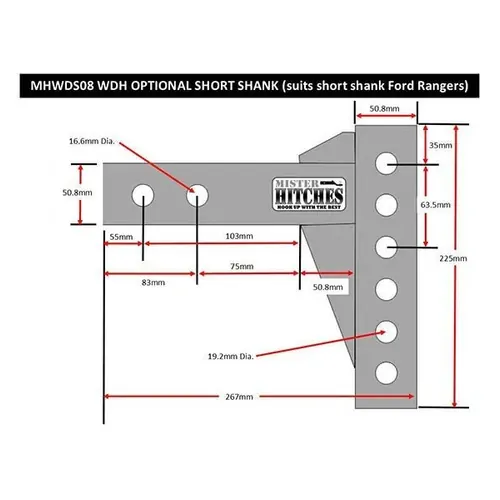

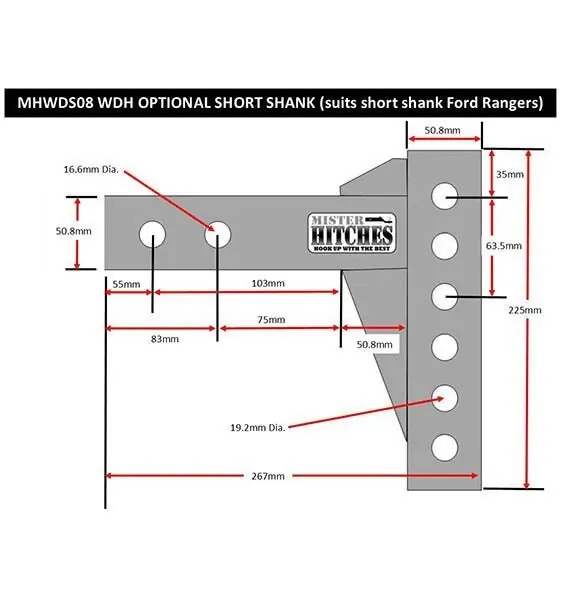

Mister Hitches Wdh Shank 8.5 Shank With 2 X Pin Holes (Suits For Ford Ranger)"
SKU: MHWDS08
More infoMake 4 payments of $43.25 over 8 weeks and get it now!
This 8.5" Shank from Mister Hitches is shorter than a standard shank and is constructed of solid steel for added durability.
