watersnake geo-spot 65lb
The Watersnake Geo-Spot GPS Bow Mount Electric Motor packs all of the essential features of a GPS electric motor into an energy-smart design. The Anchor, Pilot, Cruise and Navigation Modes, deliver maximum boat control while only requiring a single 12-volt battery for power. The result is a simplified installation process and reduced running costs.
Equipped with 65lbs of thrust, the Geo-Spot packs plenty of power for most trailer boats. The motor is also efficient and draws a maximum of just 50 amps. Under typical usage conditions and with a suitable battery, the Geo-Spot motor provides hours of on-water operation.

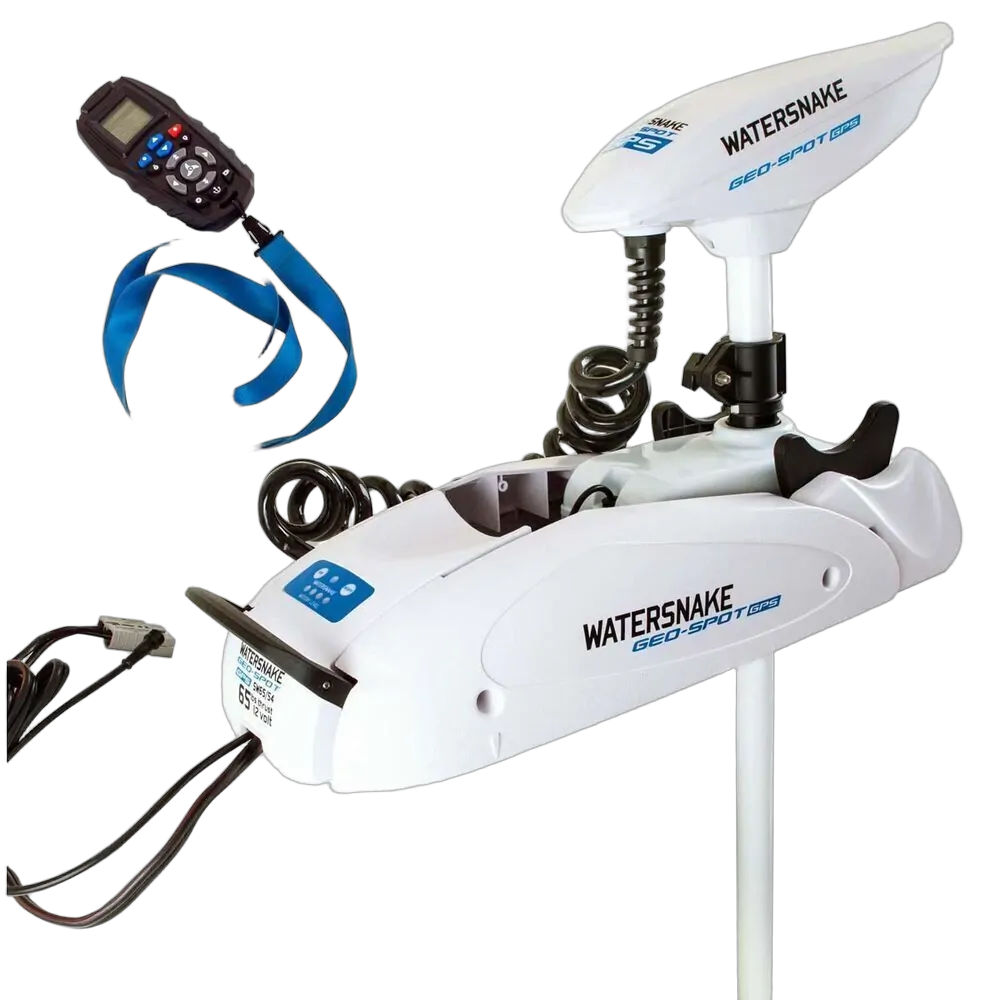

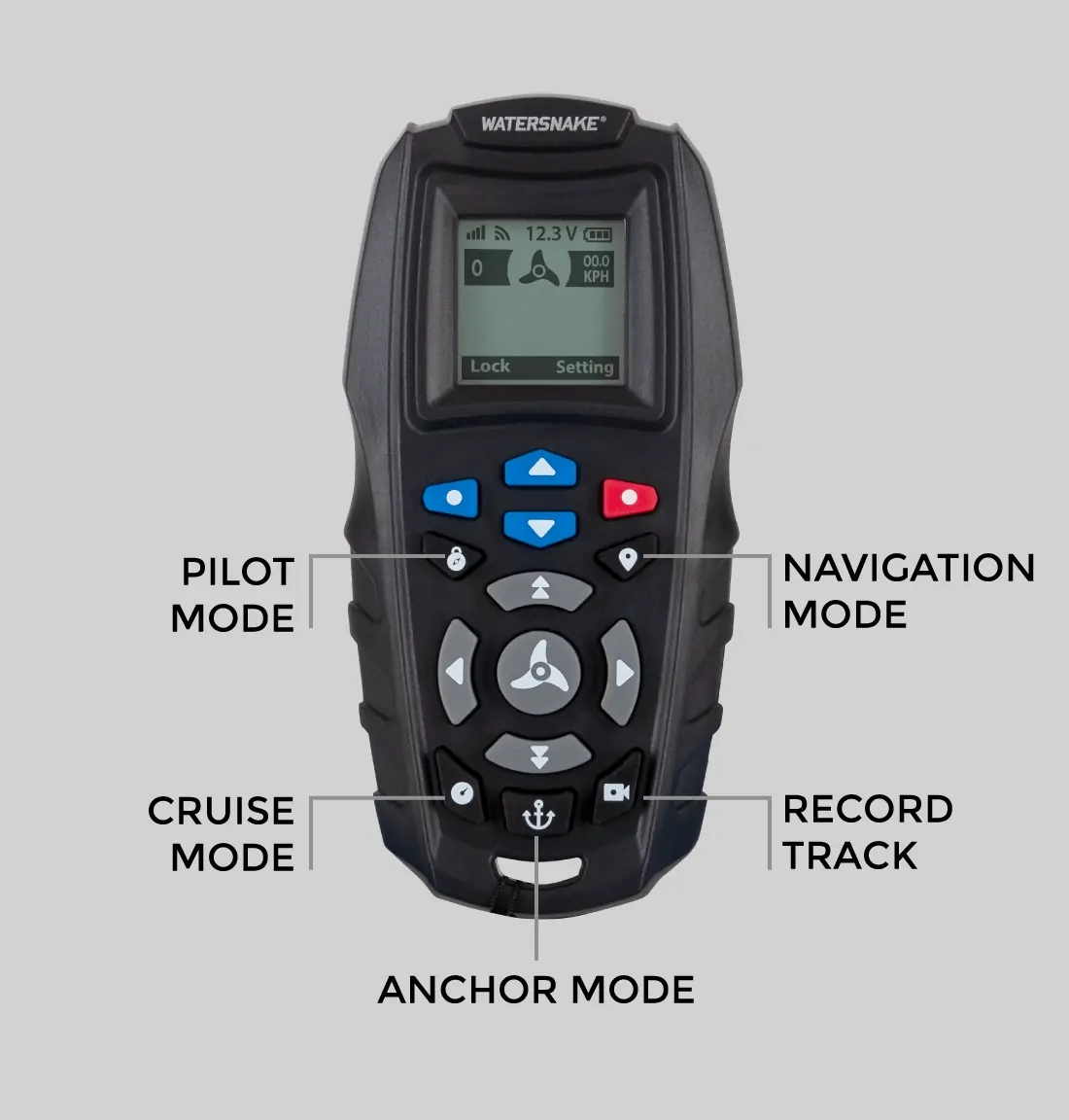

The Geo-Spot GPS motor includes a heavy-duty and splash-proof handheld remote fob which enables wireless control from anywhere on your boat. It also comes with in-built voltage protection for safety and an Anderson plug system for fast and simple connection.
Packed with features, simple to operate, and designed for a 12-volt system, the addition of a GPS-enabled electric motor has never been so easy and affordable.
Simply press the Anchor Mode button on the remote fob to hold your position over a selected mark regardless of wind, tide or current. It’s the perfect option for fishing over reefs, wrecks or for locking position on fishing hotspots. Save up to 16 of your favourite spots and return to them at any time.
Select a preferred ground speed and maintain it regardless of wind, tide or current. Cruise Mode enables you to move and fish at a consistent pace. It’s great for covering ground and fishing through selected areas. Cruise Mode is also handy for trolling at a set speed.
Record a track along a shoreline or through a productive fishing area and then automatically retrace the saved path at any time. When activated, the motor will navigate to the track and then follow it. This convenient feature removes the need for manual control and lets you focus on the fishing. The Geo-Spot can record and store 16 tracks (up to 5km long per track). This mode is ideal for repeatedly fishing through your favourite fishing areas.
Other Features :
Anderson Plugs
For a fast and simple connection to the battery
Protection Built-in
Voltage protection, current protection and overheating temperature control. An external circuit breaker is not needed.
Efficient Motor
The motor draws a maximum of just 50 amps while outputting 65lb thrust.
Ready for Saltwater
Includes a sacrificial anode, composite shaft and high-quality coatings.
Watersnake Quick Release Bracket Nylon White

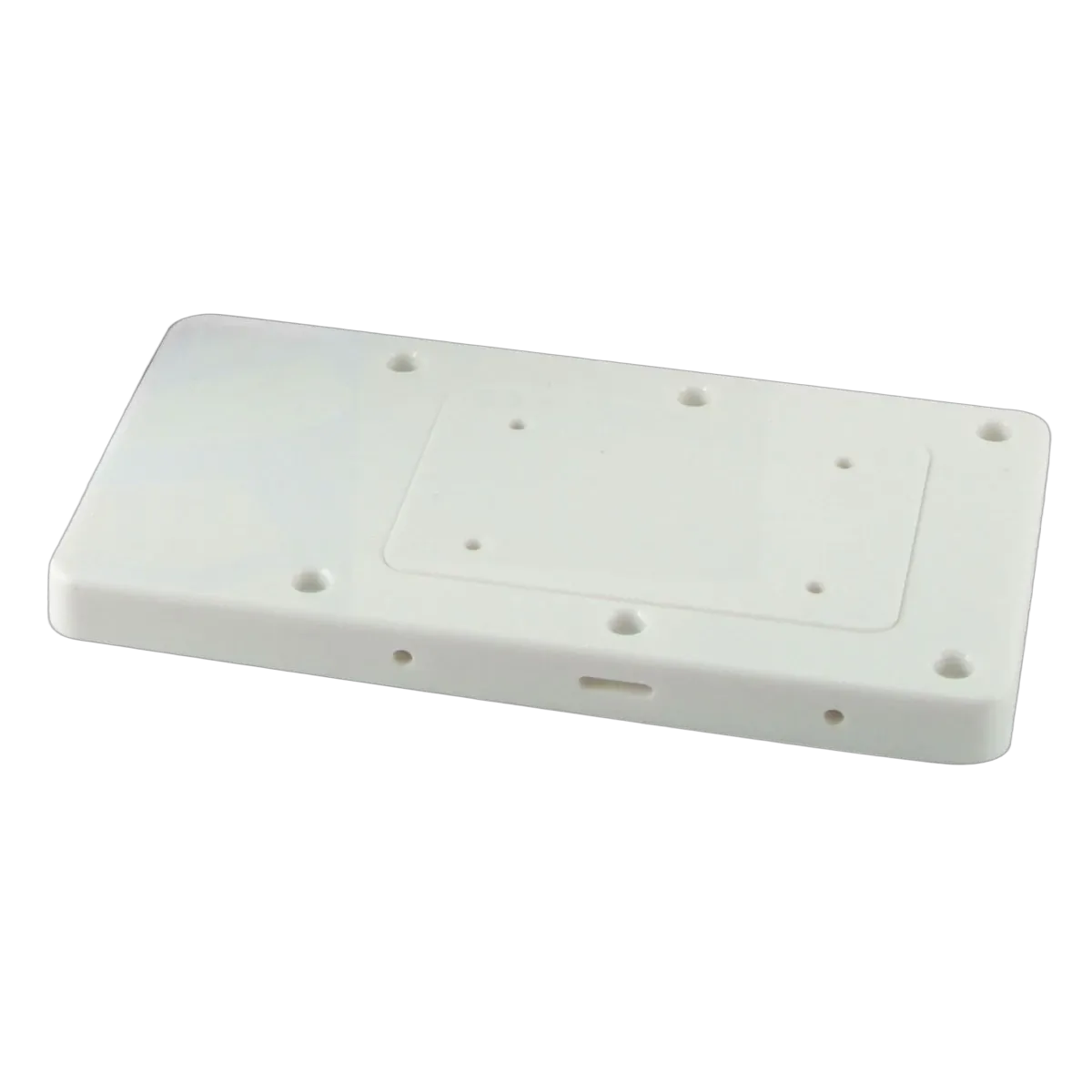

The Quick Release Nylon Bracket allows the user to quickly attach or remove a bow mount motor from their boat. It comprises two plates: one attaches to the motor's bow mount while the other is fixed on the foredeck. It can be used with either a standard bow mount or a scissor bow mount.
| Feature | Geo-Spot GPS SW65/54 | Geo-Spot GPS SW65/60 | Geo-Spot GPS SW65/66 |
|---|---|---|---|
| CODE | 55313 | 55316 | 55314 |
| THRUST | 65lb | 65lb | 65lb |
| VOLTS | 12V | 12V | 12V |
| AMP DRAW | 0–50A | 0–50A | 0–50A |
| WATTS (MAX) | 420W | 420W | 420W |
| SPEEDS | Variable | Variable | Variable |
| MAX PROP RPM | 1650rpm | 1650rpm | 1650rpm |
| MOTOR WEIGHT | 15kg | 15kg | 15kg |
| SHAFT | 54" (137cm) | 60" (152cm) | 66" (167cm) |
| SHAFT DIA. | 1.2 Inches (30mm) | 1.2 Inches (30mm) | 1.2 Inches (30mm) |
| SHAFT WALL THICKNESS | 4.25mm | 4.25mm | 4.25mm |
| STEERING | GPS, Remote Control Fob | GPS, Remote Control Fob | GPS, Remote Control Fob |
| PROP | 3-Blade (94mm Pitch) | 3-Blade (94mm Pitch) | 3-Blade (94mm Pitch) |
| REMOTE CONTROL | Digital Fob | Digital Fob | Digital Fob |
| MOUNTING | Bow Mount XB Bracket | Bow Mount XB Bracket | Bow Mount XB Bracket |
| WIRE GAUGE | 10AWG | 10AWG | 10AWG |
| BATTERY REQUIRED | 12V Deep Cycle or LiFePO4 Lithium | 12V Deep Cycle or LiFePO4 Lithium | 12V Deep Cycle or LiFePO4 Lithium |
| SUGGESTED MINIMUM BATTERY CAPACITY | 100 Amp hours or more | 100 Amp hours or more | 100 Amp hours or more |
| SUGGESTED MAXIMUM BOAT WEIGHT | Up to 750kg | Up to 750kg | Up to 750kg |
Installing the WaterSnake Electric Motor Video
| SKU | 55314-55502-KT |
|---|---|
| Brand | Watersnake |
| Shipping Weight | 26.0000kg |
| Shipping Width | 0.420m |
| Shipping Height | 0.300m |
| Shipping Length | 2.400m |
| Shipping Cubic | 0.302400000m3 |
