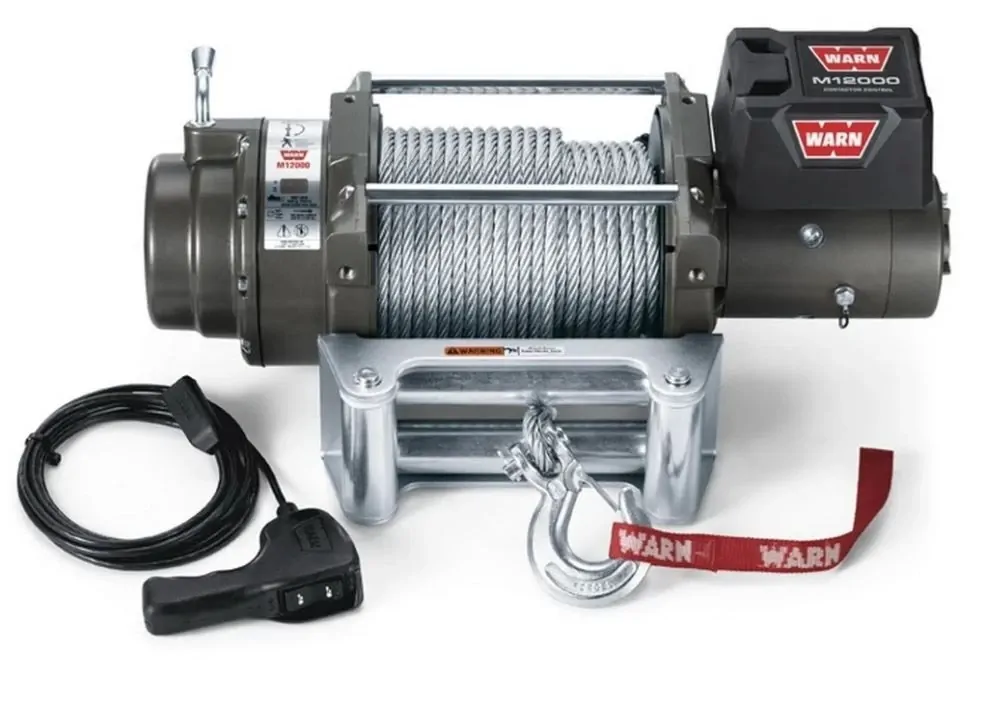

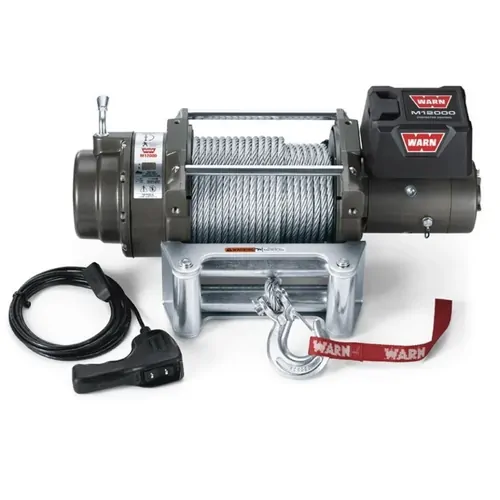

Warn 12v self recovery winch 38m wire rope, cem12000-87801
A reliable workhorse to meet heavy winching needs
Champion workhorse for heavy-duty winching. 3-stage planetary gear train combined with a 4.6hp series wound motor produce 12,000 lbs. of pulling power. Design is low profile so it fits where you want it.
- 12,000 lb. (5,440 kg) pulling capacity (single line)
- Large frame winch design is designed to handle heavier winch loads
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Brake provides superior control while winching
- Remote-mount control box allows for various mounting options
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Remote control with 12′ (3.7m) lead
- Chip-resistant powder-coated finish
- 125′ of 3/8″ (38m of 9.5mm) diameter wire rope
M12000 SPECIFICATIONS
Part Number: CEM12000-87801 (12V) |
Rated line pull: 12000 lbs., (5440 kgs.) single-line |
Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp |
Electrical controls: Contactor |
Remote Control: Remote switch, 12 in (3.7m) lead |
Geartrain: 3-Stage Planetary |
Gear ratio: 261:1 |
Clutch (freespooling): Rotating Ring Gear |
Brake: Automatic mechanical cone |
Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm) |
Weight: 136 lbs. (62kgs.) |
Wire rope: 125 ft , 3/8 in diameter (38m, 9.5mm diam.) |
Fairlead: Roller |
Recommended Battery: 650 CCA minimum for winching |
Battery leads: 2 gauge, 72 in (1.83m) |
Finish: Argent Gray Powder Coat |
Winch Dimensions: 24.37 in L. x 8.45 in D. x 11 in H. (619mm L. x 214.63mm D. x 279mm H.) |
Mounting Bolt Pattern: 10.0 in x 4.5 in (254mm x 114.3mm) |
12V DC PERFORMANCE SPECIFICATIONS (1ST LAYER OF DRUM)
Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
0 | 30(9.14) | 67 amps | 1/12000(5443) |
2000(910) | 14(4.27) | 140 amps | 2/11120(5044) |
4000(1810) | 8.62(2.63) | 210 amps | 3/10340(4690) |
6000(2720) | 6.92(2.11) | 250 amps | 4/9770(4432) |
8000(3630) | 5.80(1.77) | 320 amps | 5/9250(4196) |
10000(4540) | 4.39(1.34) | 370 amps | |
12000(5440) | 3.86(1.18) | 440 amps |
24V DC PERFORMANCE SPECIFICATIONS (1ST LAYER OF DRUM)
Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
0 | 31.94(9.57) | 24 amps | 1/12000(5443) |
2000(910) | 11.7(3.57) | 105 amps | 2/11120(5044) |
4000(1810) | 9.5(2.90) | 129 amps | 3/10340(4690) |
6000(2720) | 8.5(2.59) | 152 amps | 4/9770(4432) |
8000(3630) | 7.5(2.29) | 175 amps | 5/9250(4196) |
10000(4540) | 6.5(1.98) | 198 amps | |
12000(5440) | 6.0(1.83) | 221 amps |
WINCH DIMENSIONS
Dimensions | 24.37″ L. x 8.45″ D. x 11″ H. (6.19mm L. x 214.63mm D. x 279mm H.) |
---|---|
Mounting Bolt Pattern | 10.0″ x 4.5″ (254mm x 114.3mm) |
SKU | CEM12000-265072 |
---|---|
Barcode # | OEBC536232 |
Brand | WARN |
Shipping Weight | 44.0000kg |
Shipping Width | 0.250m |
Shipping Height | 0.300m |
Shipping Length | 0.650m |
