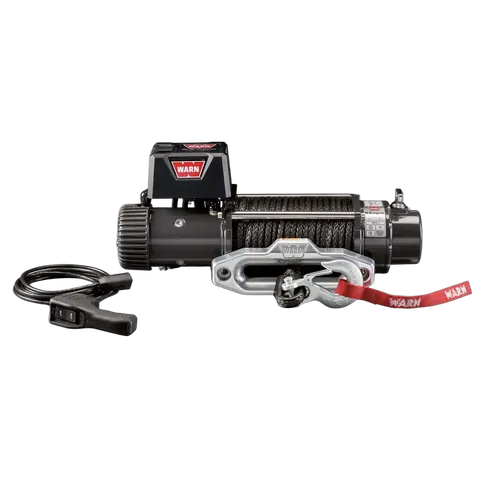

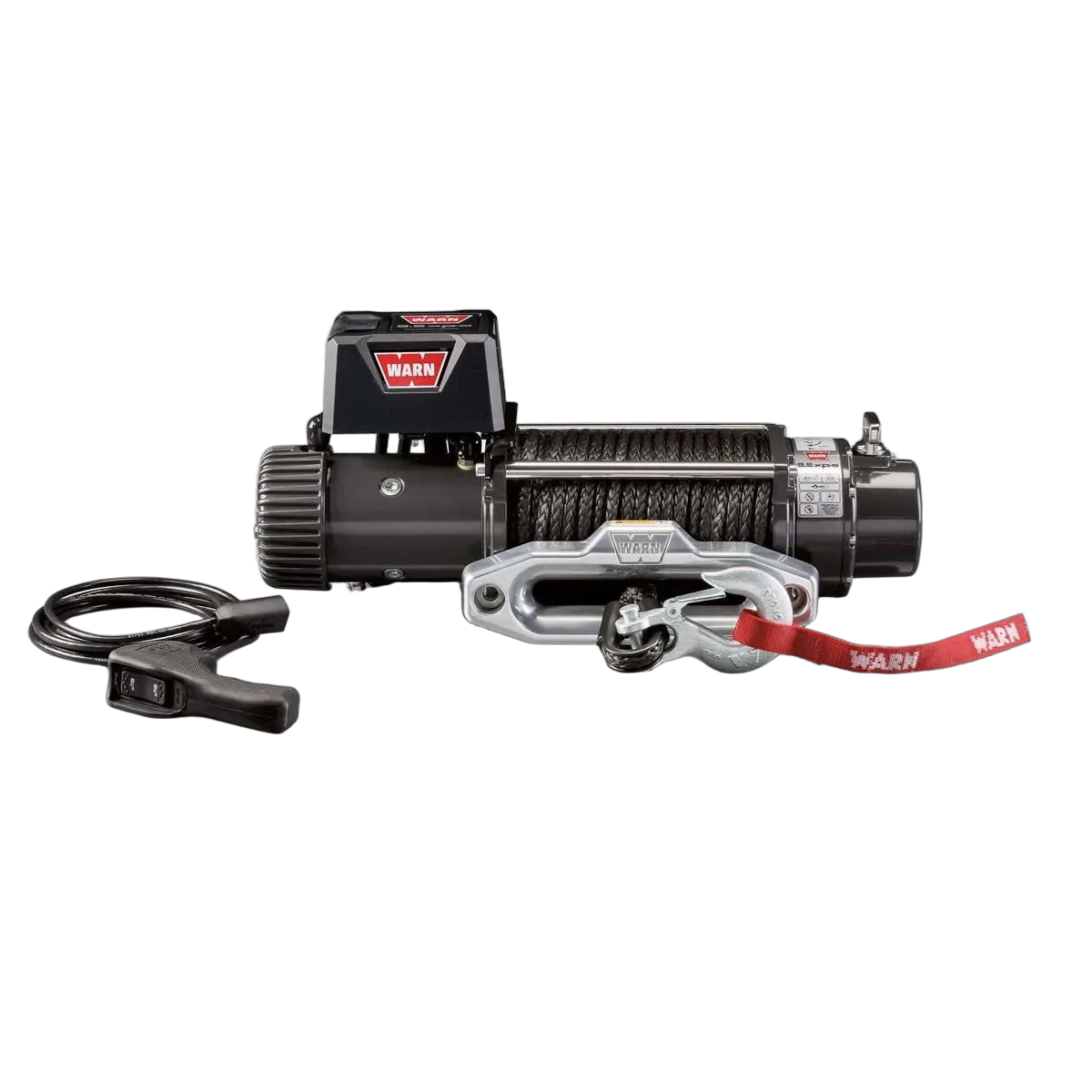

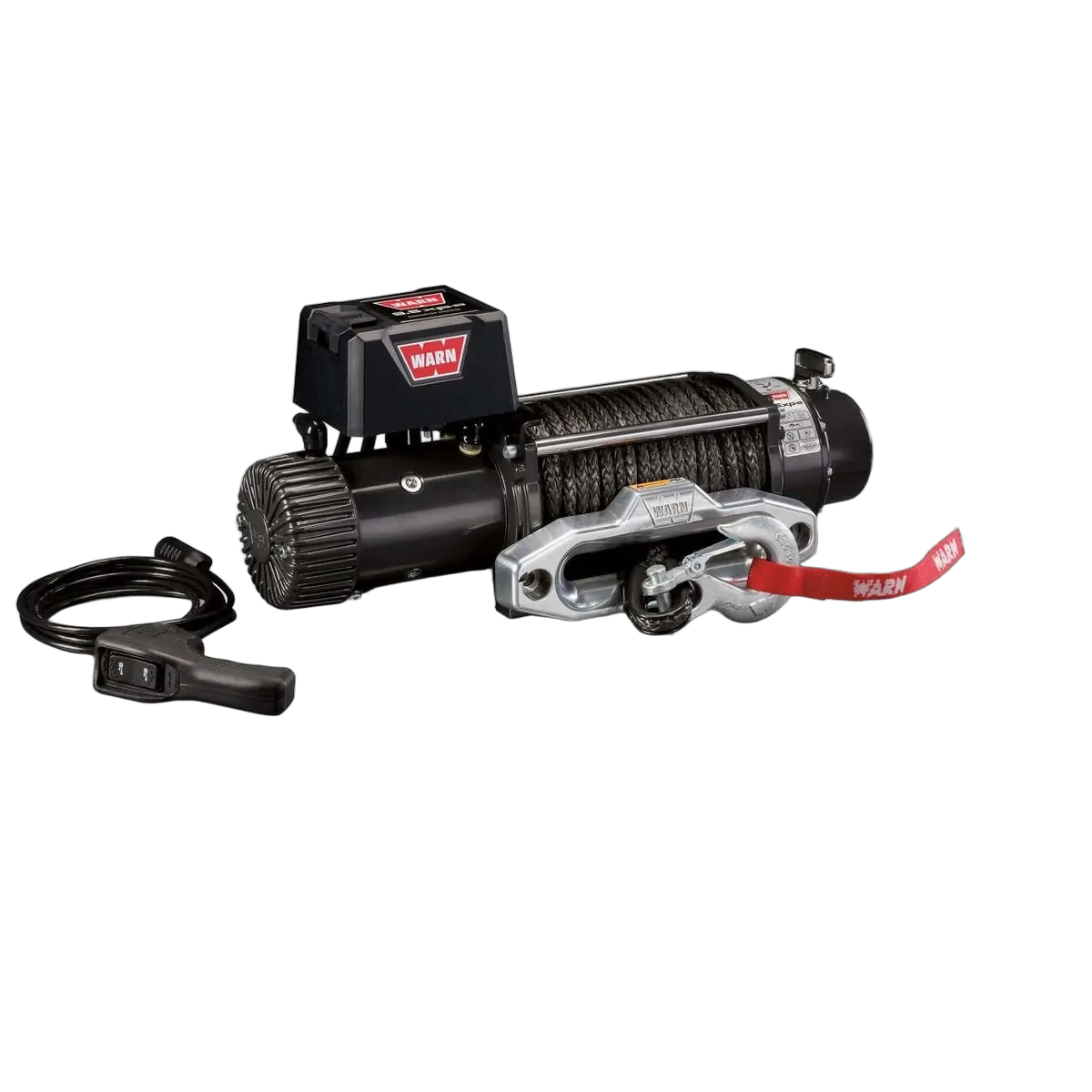

The Ultimate Winch Now With Synthetic Rope

The 9.5XP-S Extreme Performance winch is designed to offer the highest performance in the harshest conditions. From its fast line speeds and strong 4,310 kg pull rating, to its extreme-duty sealing and contactor control, the 9.5XP-S is the winch you want when the trail gets tough.

SPECIFICATIONS:

• Part number: 9500XP-87310
• Rated line pull: 9,500 lbs., (4310 kg) single-line
• Motor: 12V 6 hp (4.48kw), High output parallel series wound
• Electrical controls: Contactor
• Remote Control: Remote switch, 12′ (3.7m) lead and
• Gear train: 3-Stage Planetary
• Gear ratio: 156:1
• Clutch (free spooling): Sliding Ring Gear
• Brake: Automatic Direct Drive Cone
• Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
• Weight: 68 lbs. (30.8 kg)
• Synthetic Rope: 80′, 3/8″ diameter (24.38m, 9.5mm diam.)
• Fairlead: Polished Aluminium Hawse
• Recommended Battery: 650 CCA minimum for winching
• Battery leads: 2 gauge, 72″ (1.83m)
• Finish: High-gloss powder coat over primer undercoating

Dimensions 22.7″ L. x 6.3″ D. x 7.7″ H. (577mm L. x 160mm D. x 196mm H.)

Mounting Bolt Pattern 10.0″ x 4.5″(254mm x 114.3mm)
