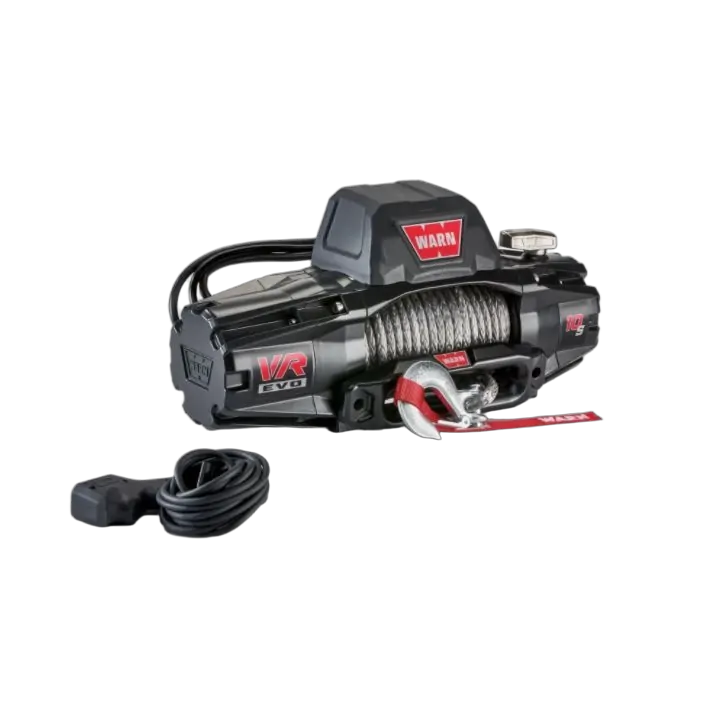

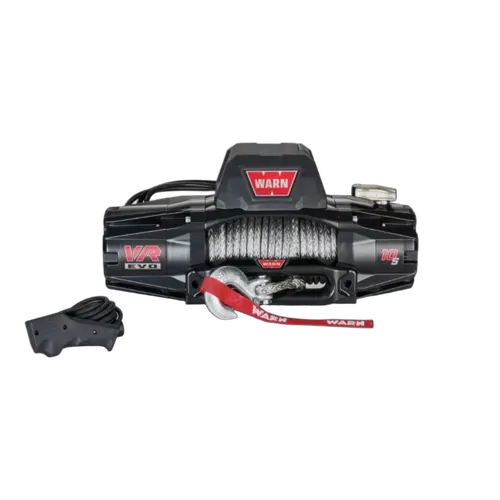

Ideal weight capacity and line speed for Utes and larger 4x4s. The EVO 10 distributed by Canyon Off-Road features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the EVO series of winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.

SPECIFICATIONS:

• Part number: EVO-10-S-103253
• Rated line pull: 4536kg (10000 lbs.)
• Motor: 12V series wound
• Electrical controls: Albright Contactor
• Remote Control: 2 in 1 plug-in remote with wireless capability and 3.5M lead
• Gear train: 3-Stage Planetary
• Gear ratio: 218:1
• Clutch (free spooling): Rotating ring gear
• Brake: Spring brake
• Drum diameter/Length: 6.73cm/23cm (2.5″/ 9.0″)
• Shipping weight: 32.84 kg (72.4 lbs.)
• Net product weight: 25.04 kg (55.2 lbs.)
• Rope: 9.5mm x 27.4m (3/8″ x 90′)
• Fairlead: Die cast hawse
• Recommended Battery: 650 CCA minimum for winching
• Battery leads: 25m x 2M
• Finish: Powder coating over primer undercoating

Winch Dimensions: 534mm L x 160.5mm D x 256mm H (21″ L x 6.3″ D x 10.1″ H)

Mounting Bolt Pattern: 254mm x 114.3mm (10.0″ x 4.5″)
