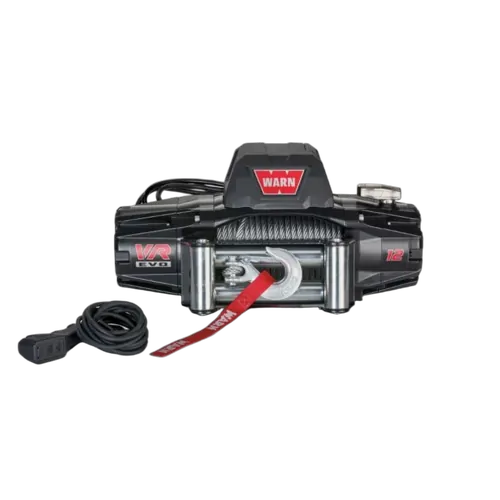

Ideal for 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The EVO 12 and 12-S distributed by Canyon Off-Road feature IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the EVO series of winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.

SPECIFICATIONS:

• Part number: EVO-12-103254
• Rated line pull: 5443kg (12000 lbs.)
• Motor: 12V series wound
• Electrical controls: Albright Contactor
• Remote Control: 2 in 1 plug-in remote with wireless capability and 3.5M lead
• Gear train: 3-Stage Planetary
• Gear ratio: 234:1
• Clutch (free spooling): Rotating ring gear
• Brake: Spring brake
• Drum diameter/Length: 6.73cm/23cm (2.5″/ 9.0″)
• Shipping weight: 41.19 kg (90.81 lbs.)
• Net product weight: 33.39 kg (73.61 lbs.)
• Rope: 9.5mm x 25.9m (3/8″ x 85′)
• Fairlead: Roller
• Recommended Battery: 650 CCA minimum for winching
• Battery leads: 25m x 2M
• Finish: Powder coating over primer undercoating

Winch Dimensions: 534mm L x 160.5mm D x 256mm H (21″ L x 6.3″ D x 10.1″ H)

Mounting Bolt Pattern: 254mm x 114.3mm (10.0″ x 4.5″)
