Speed, Reliability and Synthetic Rope

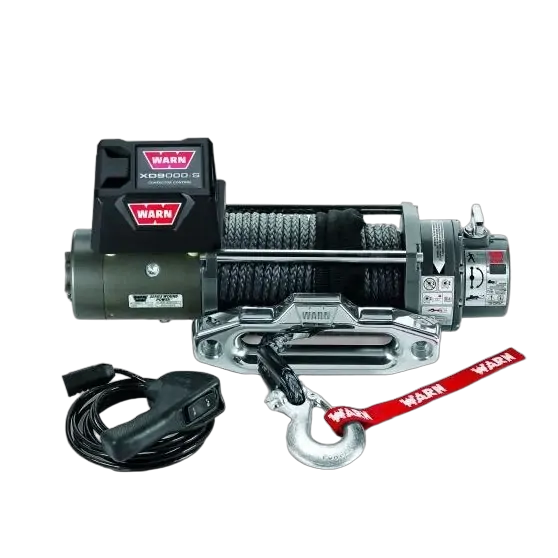

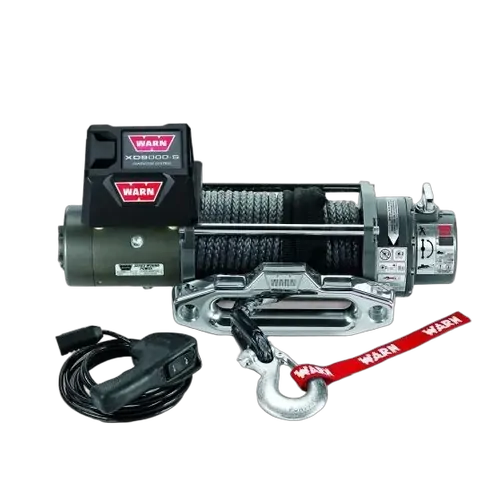

Long-time best seller. A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 80 ft. of 3/8″ (24.38m of 9.5mm) WARN Spydura synthetic rope, hook, remote control on 12′ (3.7m) lead and polished aluminium hawse fairlead

SPECIFICATIONS:

• Winch model: WARN XD9000-S
• Part number: CEXD9000-88550
• Rated line pull: 9,000 lbs., (4080 kg) single-line
• Motor: Series Wound
• Electrical controls: Contactor
• Remote Control: Remote switch 12′ (3.7m) lead
• Gear train: 3-Stage Planetary
• Gear ratio: 156:1
• Clutch (free spooling): Sliding Ring Gear
• Brake: Automatic Direct Drive Cone
• Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
• Weight: 59 lbs. (26.8 kg)
• Synthetic Rope: 80′, 3/8″ diameter (24.38m, 9.5mm diam.)
• Fairlead: Polished Aluminium Hawse
• Recommended Battery: 650 CCA minimum for winching
• Battery leads: 2 gauge, 72″ (1.83m)
• Finish: Argent Grey Powder Coat

Dimensions 21.8″ L. x 6.3″ D. x 7.6″ H. (555mm L. x 160mm D. x 193mm H.)

Mounting Bolt Pattern 10.0″ x 4.5″ (254mm x 114.3mm)
