Highest capacity, most technologically advanced winch for big trucks

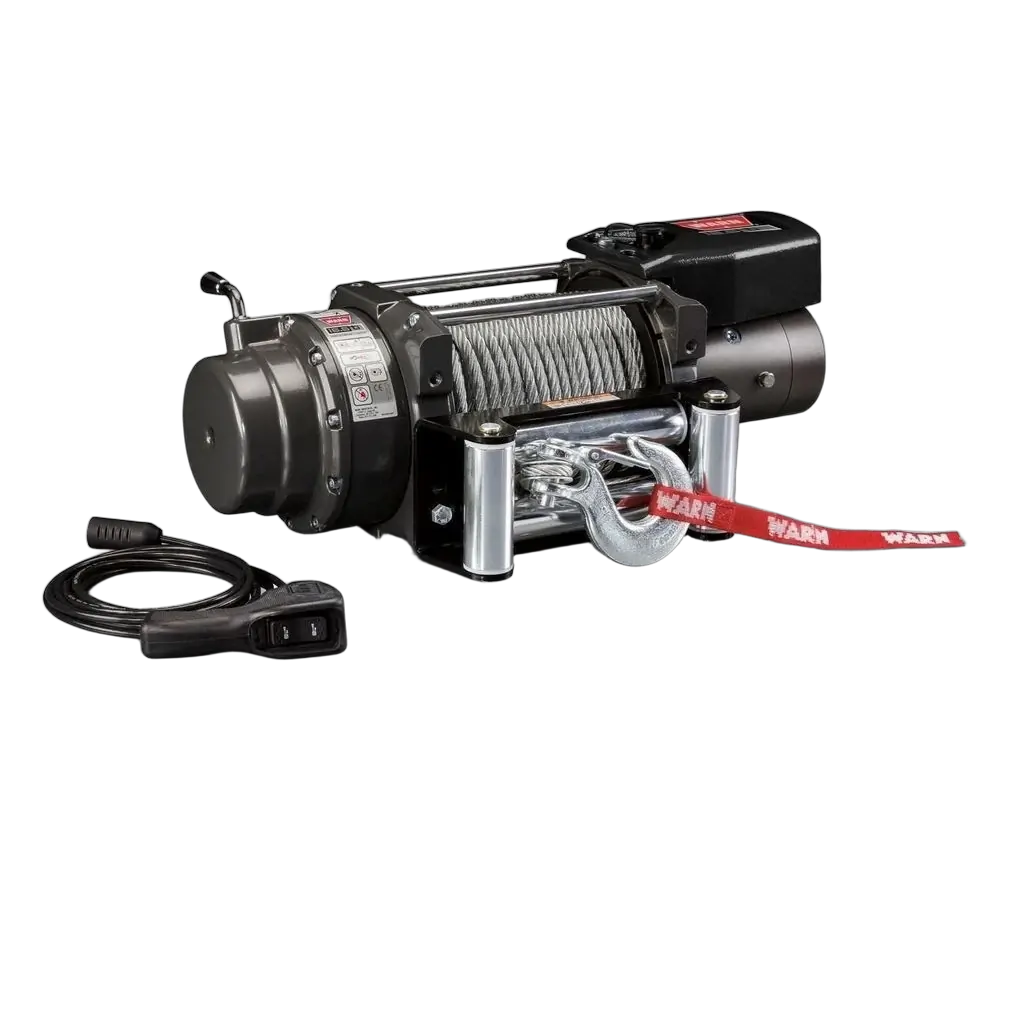

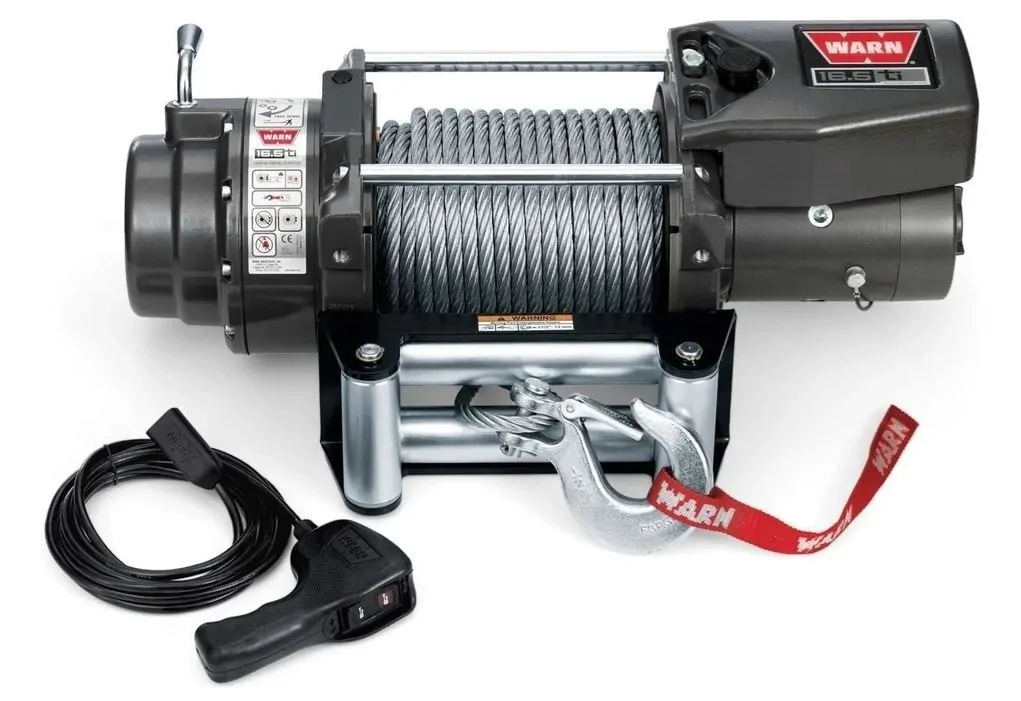

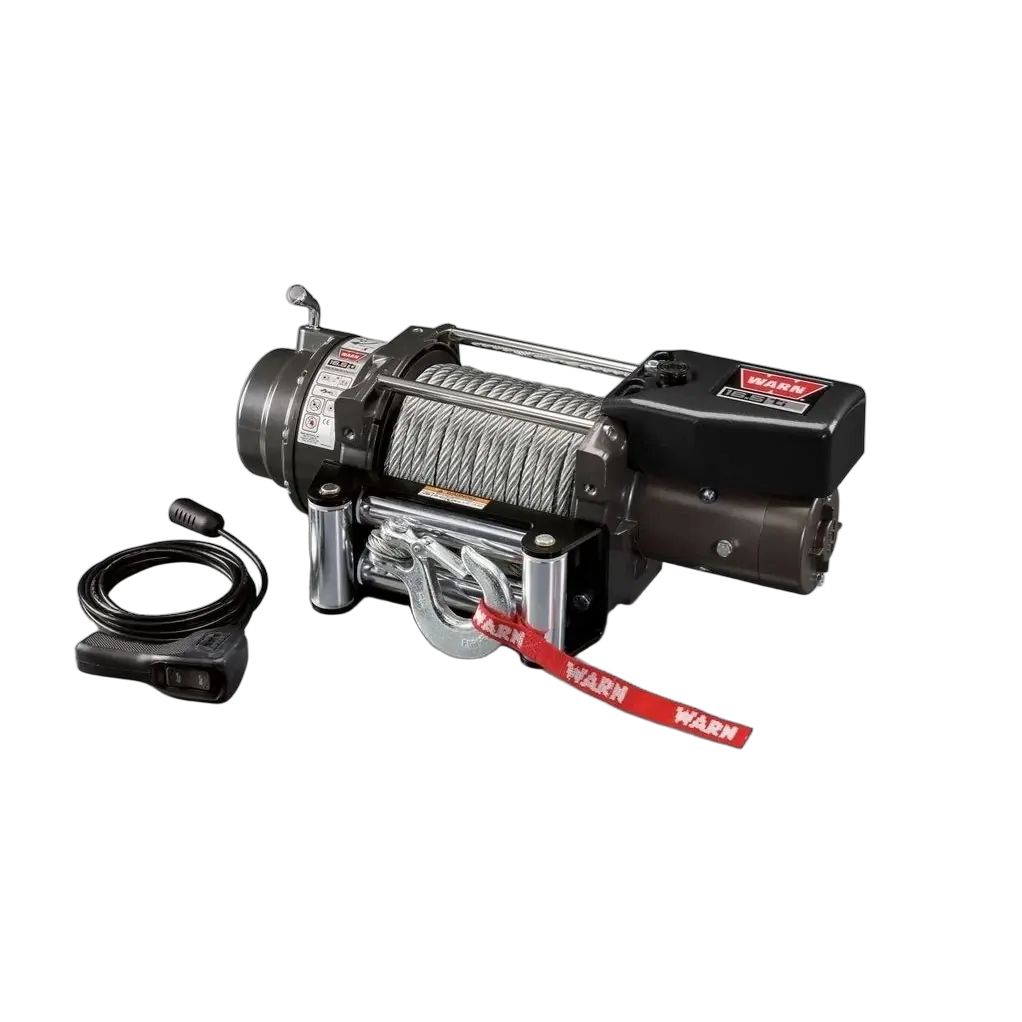

The 16.5ti distributed by Canyon Off-Road features the full diagnostic ability of WARN thermometric technology, plus the extreme sealing, durability, and reliability that the WARN TI-series of winches are known for. Series-wound motor combined with a 3-stage planetary gear train delivers 16,500 lbs. of pulling power. Thermometric indicator LED provides operator feedback on motor temperature.

SPECIFICATIONS:

• Part Number: 16500TI-68801
• Rated Line Pull: 16,500 lbs. (7484 kgs) single-line
• Motor: 12V 4.6 hp, Gen II, Series Wound
• Electrical Control: Solenoid Control Pack
• Remote control: Remote switch, with LED indicator 12 ft (3.7m) lead
• Gear train: 3-stage planetary
• Gear ratio: 315:1
• Clutch (free spooling): Rotating ring gear
• Brake: Automatic direct drive cone
• Wire rope: 90 ft, 7/16 in diameter (27m, 11mm diam.)
• Fairlead: Roller
• Recommended battery: 650 CCA minimum for winching
• Battery leads: 2 gauge, 72 in. (1.83m)
• Finish: High-gloss powder coat over primer undercoating
• Drum diameter/length: 3.5 in /8.2 in (9cm/21cm)
• Weight: 138 lbs. (63 kgs.)

Dimensions 24.2″ L. x 8.5″ D. x 9.7″ H. (628mm L. x 216mm D. x 247mm H.)

Mounting Bolt Pattern 10.0″ x 4.5″ (254mm x 114.3mm)
