Enough capacity for the heaviest loads

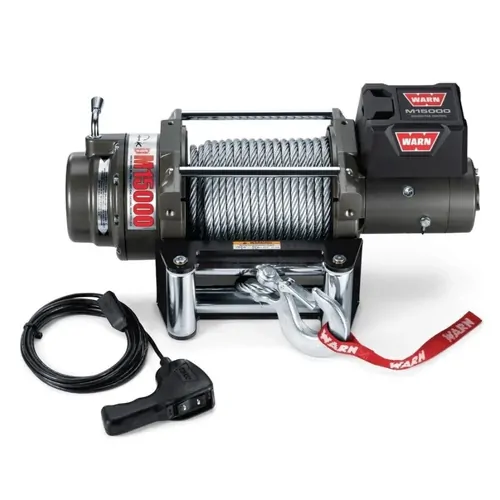

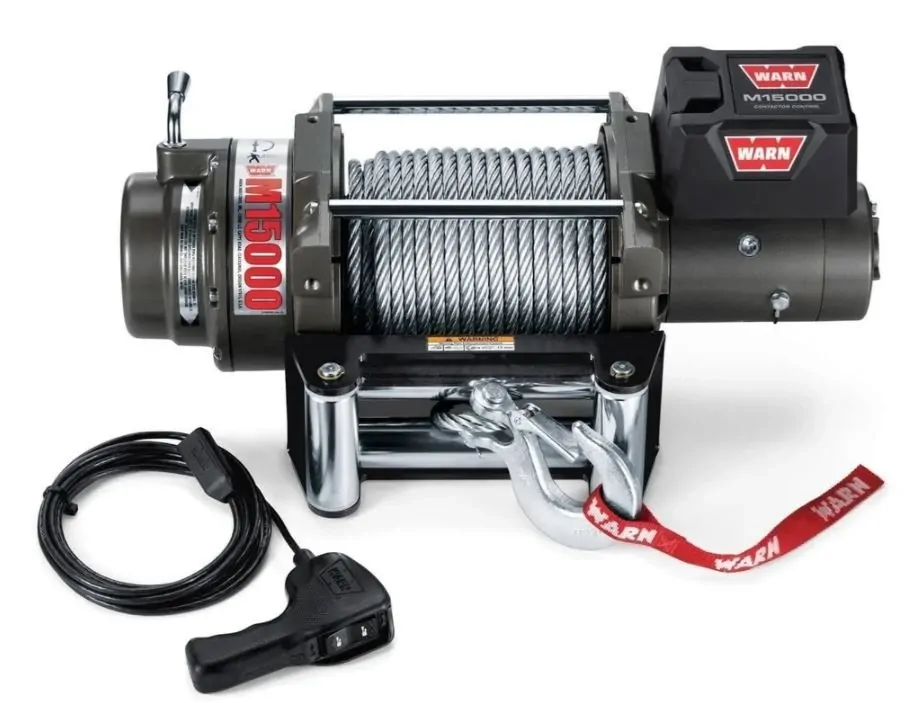

A heavy-duty 15,000 lb. capacity winch with a 4.6hp series wound motor. Direct drive cone braking system. Control pack is designed for clearance and ease of access. Comes with 90′ of 7/16″ wire rope.
SPECIFICATIONS:
- Part number: M15000-47801 (12V)
- Rated Line Pull: 15,000 lbs. (6804 kgs) single-line
- Motor: Series Wound, 12V 4.6 hp
- Electrical controls: Contactor
- Remote Control: Remote switch, 12 ft (3.7m) lead
- Gear train: 3-Stage Planetary
- Gear ratio: 315:1
- Clutch (free spooling): Rotating Ring Gear
- Brake: Automatic mechanical cone
- Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm)
- Weight: 136 lbs. (62kgs.)
- Wire rope: 90 ft, 7/16 in (27m, 11mm) diameter
- Fairlead: Roller
- Recommended Battery: 650 CCA minimum for winching
- Battery leads: 2 gauge, 72 in (1.83m)
- Finish: Argent Grey Powder Coat
Dimensions 25.2″ L. x 8.5″ D. x 11″ H. (640mm L. x 215mm D. x 279mm H.)
Mounting Bolt Pattern 10.0″ x 4.5″ (254mm x 114.3mm)
SKU | M15000-47801 |
---|---|
Barcode # | OEBC536233 |
Brand | WARN |
Shipping Weight | 62.0000kg |
Shipping Width | 0.250m |
Shipping Height | 0.300m |
Shipping Length | 0.650m |
