Description
Warn took their most iconic winch and added more performance and more features. It is still the fastest of any WARN winch and has the longest rope length (150’), but we’ve added more power courtesy of a 6hp motor, a 10,000 lb. capacity, contactor control, and available Spydura synthetic rope.
- High-output 6 HP motor for increased 10,000 lb. pulling capacity (up from 8,000 lbs.)—ideal for today’s larger, heavier vehicles
- IP68 waterproof Albright electrical contactor for the ultimate in reliability and control
- Restyled high-strength polymer control pack housing for a modern twist on classic styling
- Ergonomic stainless steel clutch T-handle is easier to use than before
- Two Oilite® bushings installed on pinion gear assembly for improved durability in extreme recovery conditions
- Bolt-and-washer assembly replaces retaining ring on brake shaft
- Made in the USA in Clackamas, Oregon
M8274-S SPECIFICATIONS
| Part Number: M8274-70-106175 |
| Rated Line Pull: 10,000 lbs. (4536 kg) single-line |
| Motor: 12V DC, 6HP Series Wound |
| Electrical Control: Contactor |
| Remote control: Remote switch, 12’ (3.7m) lead |
| Geartrain: 3-stage Spur Gear |
| Gear ratio: 134:1 |
| Clutch (freespooling): Sliding motor pinion gear |
| Brake: Automatic disc type |
| Drum Diameter/Length: 3.5”/8.5” (9cm/22cm) |
| Synthetic rope: 9.5mm x 45M (3/8″ x 150′) |
| Fairlead: Forged Hawse Fairlead |
| Recommended battery: 650 CCA minimum for winching |
| Battery leads: 2 gauge, 72 in. (1.83m) |
| Finish: Powder coat with clear coat |
| Weight: 90lb (40.8kg) |
| Warranty: Limited Lifetime Mechanical Warranty with 7 Year Electrical Warranty) |
Specifications
| SKU | M8274-70-106175 |
|---|---|
| Barcode # | OEBC536227 |
| Brand | WARN |
| Shipping Weight | 40.8000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.400m |
| Shipping Length | 0.650m |

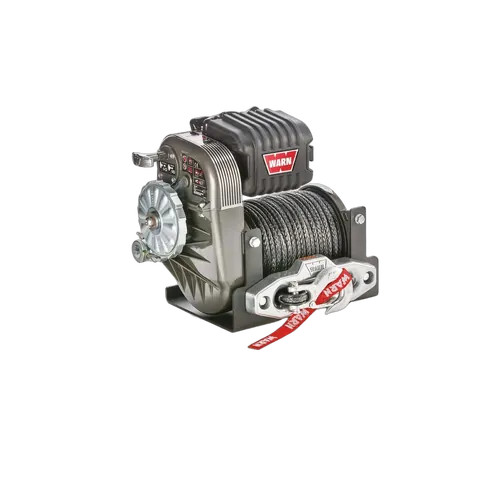

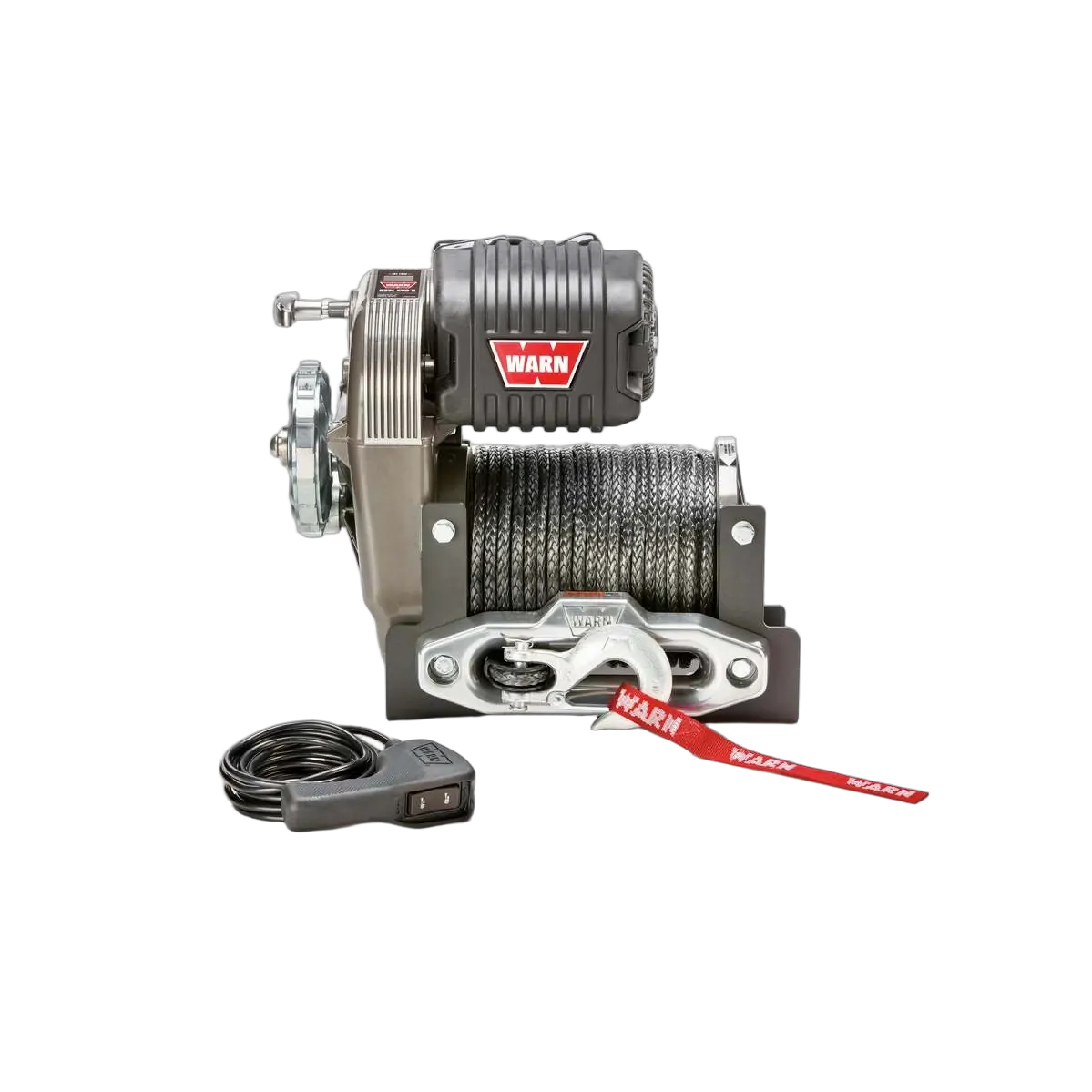

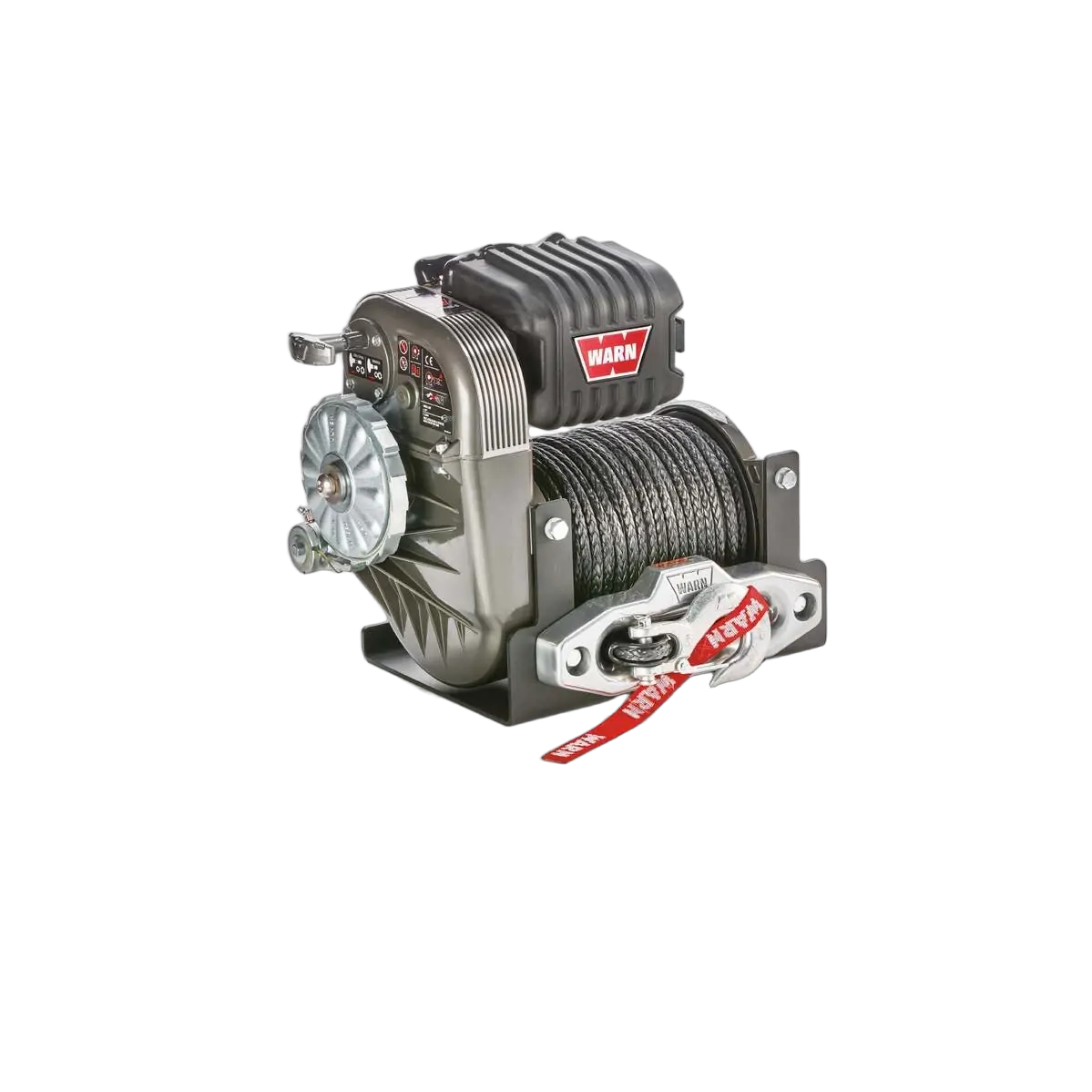

Warn 10,000lb 12V High Mount Winch with 45m Synthetic Rope
SKU: M8274-70-106175
Sale price
$5,999.00
More infoMake 4 payments of $1,499.75 over 8 weeks and get it now!
Calculate Shipping
