Description
We now do 4x4 accessory fitting! Contact Us for a quote.

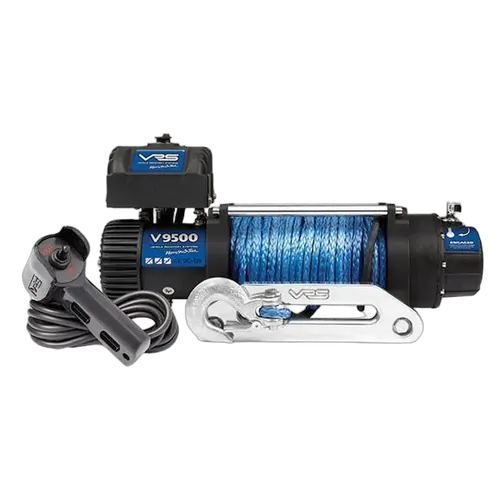

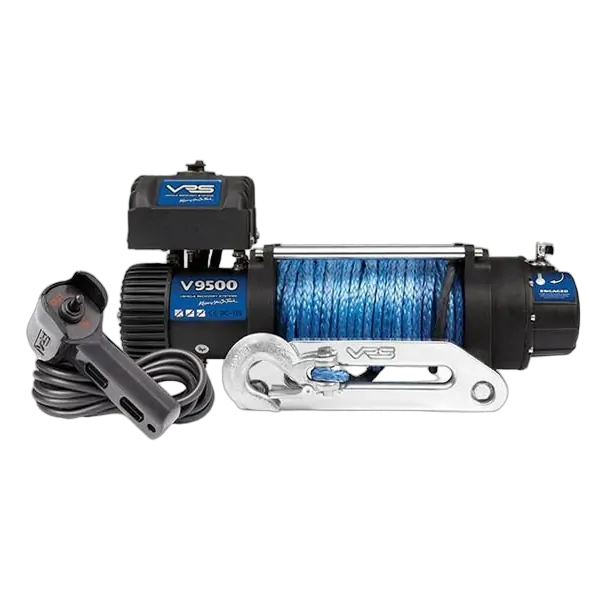

When you’re out there in the thick of it, you need some serious machinery on your side. With an impressive 4300kgs of pulling power and fast line speed under load, the VRS 9500lb winch is the one vehicle recovery winch no driver, from the novice to the serious off-roader, should be without. Even in the most extreme conditions, this tough nut has the muscle to haul your vehicle back on track-fast. Get serious with your safety and get yourself a VRS winch.
Product features:
- IP68 Water & Dust rating
- Textured UV and corrosion resistant finish
- Sealed to resist water penetration
- Stainless steel hardware and fittings
- Heavy duty sealed high amperage contactor controller
- Multi-segmented cam activated brake
- Powerful pulling power
- Fast line speed under load
- Designed in Australia for the World
- Winch Weight 31 kg
Specifications:
- Line Pull 9,500lb / 4,310 kg
- Motor 12V Series Wound 5.3hp/3.9kw 12v DC
- Gear Train 3 stage planetary gears
- Gear Ratio 216 : 1
- Freespool Sliding ring gear
- Brake Automatic, in the drum
- Battery Recommended 650 CCA minimum for winching
- Battery Lead 25mm, 72? (1.83M)
- Synthetic Rope Size 9mm x 30m
- Drum Size 2.5? x 9.0? (64mm x 224mm)

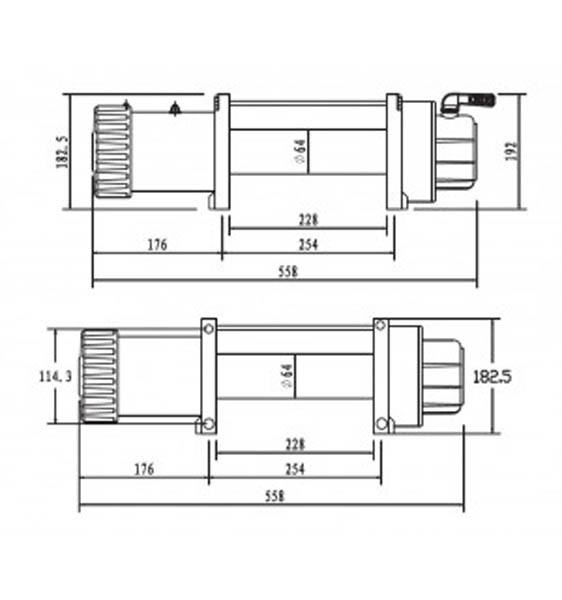

- Mounting Bolt Pattern 10? x 4.5? (254mm x 114.3mm)
- Dimensions 23? x 6.6?x 8.4? (552mm x 168mm x 214mm)
Line pull and rope capacity
- Layer of wire rope Line Pull kg / lb Total Rope on the Drum m/ft
- 1st Layer 4,310 / 9,500 6 / 19.6
- 2nd Layer 3,629 / 8,000 13.2 / 43
- 3rd Layer 3,266 / 7,200 22 / 72
- 4th Layer 2,994 / 6,000 30 / 100
Line speed and Amp draw (1st layer of rope on the drum)
- Line Pull kg/lb Line Speed mpm/fpm Amp. Draw 12V
- No Load 10.8 / 35.4 80
- 907 / 2,000 4.5 / 14.76 160
- 1,814 / 4,000 3.7 / 12.14 220
- 2,722 / 6,000 2.98 / 9.79 280
- 3,629 / 8,000 2.6 / 8.53 320
- 4,310 / 9,500 2.2 / 7.2 360
Standard accessories:
- Detachable Contactor Pack
- Remote control
- Synthetic Rope with Hook
- Hawse offset fairlead
- 1.83m (6?) 25mm battery lead
- Handsaver strap
Warrants the original purchaser that the mechanical components will be free of defects in material and workmanship for the lifetime of the winch and the electrical components will be free of defects in material and workmanship from a period of 2 years from the original date of purchase.
Specifications
| SKU | V9500S |
|---|---|
| Barcode # | V9500S |
| Brand | VRS Vehicle Recovery Systems |
| Shipping Weight | 31.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.220m |
| Shipping Length | 0.620m |
