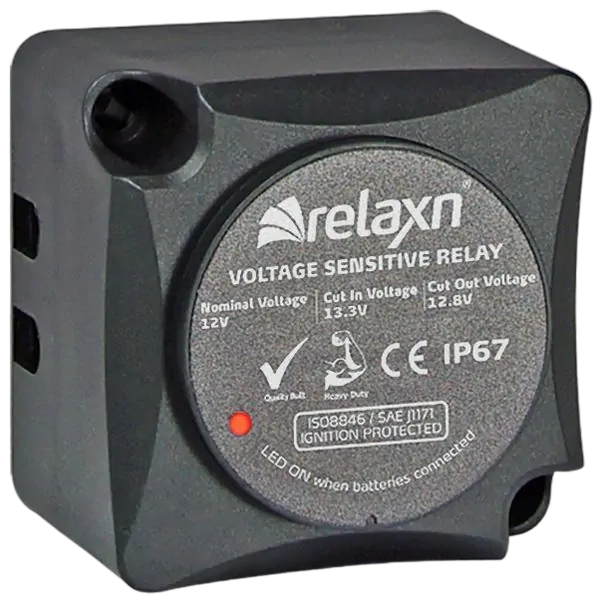

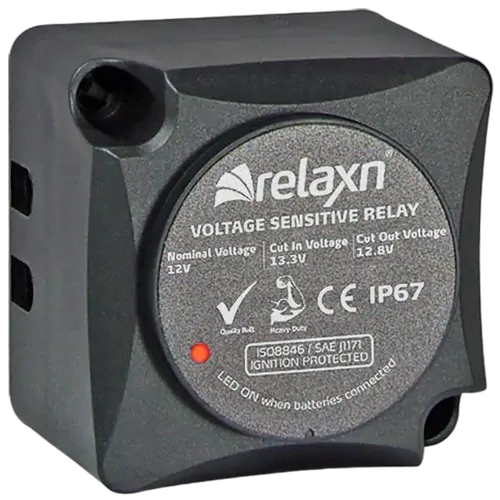

Description
- Ideal for dual battery systems or to switch high current appliances.
- Suits for ATV, boats, RV’s, marine vehicle, caravan and truck.
- VSR allows 2 batteries to be charged at the same time.
- No voltage drops comparing to battery isolator diodes (0.6V).
- Robust glass fiber reinforced nylon enclosure.
- Built-in LED indication (ON when VSR engages).
- Surface or panel mount options provide flexibility when installing.
- Optional Storage Mode allows zero power consumption when the engine is off.
- CE ISO8846 / SAEJ1171 Ignition Protected.
- Patented Made in Taiwan.
| Part No. | 53083 |
| Width | 69mm |
| Height | 69mm |
| Cut Out Voltage | 12.8V |
| Continuous Rating | 125 Amps |
| Intermittent Rating | 140 Amps |
| Power Consumption | 10mA (Standby) / 330mA (Engage) / 0mA (Storage) |
| Terminal Studs | M6 |
| Depth | 58mm |
| Nominal Voltage | 12V |
| Cut In Voltage | 13.3V |
Specifications
| SKU | 53083 |
|---|---|
| Barcode # | 9330420027457 |
| Brand | Relaxn |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.069m |
| Shipping Height | 0.058m |
