AIRLOCK
The new Airlock closure system has been designed to allow easier access for the end user and integrate different features to offer an innovative product, extremely user-friendly.
4 innovative solutions:
Positive door closure, to prevent unwanted openings;
unique Double purpose mounting flange (optional), for both partial built-in (door outside) or total built-in (door inside);
fast reversible opening: thanks to its smart design, it's now extremely quick and easy to operate
integrated "vent position" system, to keep the fridge door ajar, preventing the formation of unpleasant odours and mould when not in use.
Door Inside mounting flange
Door Outside mounting flange
"Vent position"

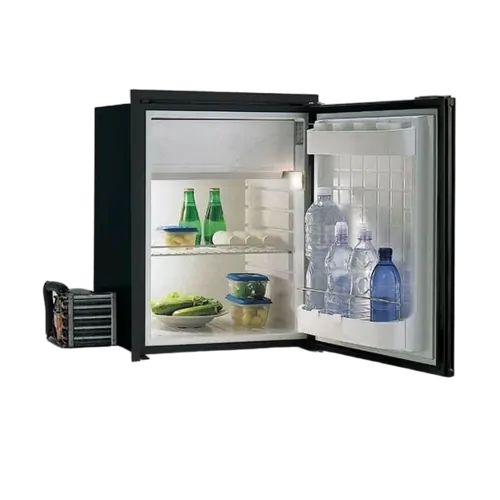

The new refrigerator/freezer series is available in two brand new colours, very popular and elegant at the same time. Door panel finish: glossy.
Two available versions: Light grey, with bright tones of pearl grey, and Black, emphasising the contrasting colours. Door panel finish: glossy. Two graphic interpretations aim to enhance the design, shapes and textures of the materials used, to meet the different needs in terms of the image and surroundings of the refrigerator.
Technical Data:
Total volume lt | 75 |
Freezer volume lt | 10,2 |
Net weight kg. | 20 |
Power supply | 12/24Vdc (also available with dual electronic box 12/24Vdc - 100-240Vac 50/60Hz) |
Power supply | |
Nominal consumption | 40W |
Overall width mm. | 470 |
Overall height mm. | 622 |
Overall depth mm. | 460 |
Panel colour | black / grey |
Also available in "fridge only" version (without freezer compartment) | yes (C75L version only) |
Reversible door | yes |

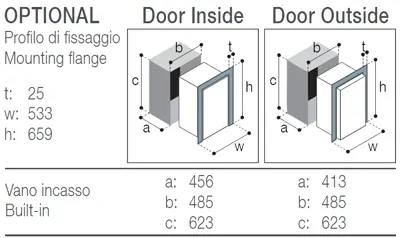

overall dimension (without mounting flange) built-in dimension with mounting flange (optional)
SKU | 043562-A |
---|---|
Barcode # | 043562-A |
Brand | Vitrifrigo |
Shipping Weight | 20.0000kg |
Shipping Width | 0.660m |
Shipping Height | 0.960m |
Shipping Length | 0.760m |
Shipping Cubic | 0.481536000m3 |
