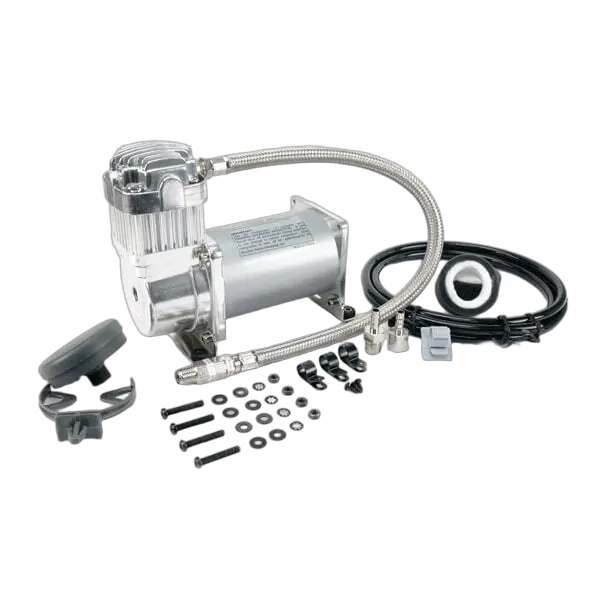

Description
| FEATURES |
|---|
| – Thermal Overload Protector |
| – Check Valve |
| – Vibration Isolators |
| – Mounting Hardware |
| – Stainless Steel Braided Leader Hose |
| – Air Line for Remote Mount Air Filter |
| – Remote Mount Air Filter Assembly |
| – (2) Replacement Air Filter Elements |
| – Installation Instructions |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| SPECIFICATIONS |
|---|
| – 12-Volt / 24-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 33% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Air Tank Size: 5.0 Gallon |
| – Max. 12V Amp Draw: 22-Amps |
| – Max. 24V Amp Draw: 13-Amps |
| – 1/4″ NPT Intake Port |
| – Ingress Protection Rating: IP67 |
| – Max Ambient Temp: +158°F |
| – Min Ambient Temp: -40°F |
| – Dimensions: 8″L x 4″W x 6.75″H |
| – Net Weight: 7.5 lbs. |
| – |
| – |
| – |
| – |
| RECOMMENDED COMPONENTS | |||||
|---|---|---|---|---|---|
| – 1.5 Gallon Tank (P/N 91015) | |||||
| – 2.5 Gallon Tank (P/N 91028) | |||||
| – 5.0 Gallon Tank (P/N 91050) | |||||
| – 12V Relay (P/N 93940) | |||||
| – 24V Relay (P/N 93943) | |||||
| – 12V Sealed Relays (P/N 93944, 93950) | |||||
| – 24V Sealed Relays (P/N 93949, 93950) | |||||
| – Pressure Switches (P/N 90100, 90101, 90104) |
|||||
| – Pressure Switches w/ Relay (P/N 90110, 90111, 90113) |
|||||
| – Sealed Pressure Switches (P/N 90217, 90223, 90227) |
|||||
| – Leader Hose w/out Check Valve (P/N 92802, 92804, 92809) |
|||||
| – Leader Hose w/ Check Valve (P/N 92793, 92805) |
|||||
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| 12-VOLT COMPRESSOR | |||||
|---|---|---|---|---|---|
| PSI | CFM | A | BAR | LPM | A |
| 0 | 1.59 | 14 | 0 | 45.0 | 14 |
| 10 | 1.40 | 16 | 1.0 | 37.6 | 16 |
| 20 | 1.24 | 16 | 2.0 | 34.1 | 18 |
| 30 | 1.20 | 18 | 3.0 | 32.3 | 18 |
| 40 | 1.17 | 18 | 4.0 | 29.1 | 20 |
| 50 | 1.08 | 19 | 5.0 | 26.0 | 21 |
| 60 | 1.01 | 20 | 6.0 | 23.7 | 21 |
| 70 | 0.93 | 21 | 7.0 | 21.5 | 21 |
| 80 | 0.87 | 21 | 8.0 | 19.7 | 21 |
| 90 | 0.82 | 21 | 9.0 | 18.0 | 21 |
| 100 | 0.77 | 21 | 10.0 | 16.5 | 21 |
| 110 | 0.72 | 21 | |||
| 120 | 0.68 | 21 | |||
| 130 | 0.64 | 21 | |||
| 140 | 0.60 | 21 | |||
| 150 | 0.57 | 21 | |||
* Supply Voltage: 13.8 Volts
| 24-VOLT COMPRESSOR | |||||
|---|---|---|---|---|---|
| PSI | CFM | A | BAR | LPM | A |
| 0 | 1.80 | 7 | 0 | 51.0 | 7 |
| 10 | 1.68 | 8 | 1.0 | 44.1 | 8 |
| 20 | 1.41 | 9 | 2.0 | 38.7 | 10 |
| 30 | 1.36 | 10 | 3.0 | 36.5 | 10 |
| 40 | 1.31 | 10 | 4.0 | 34.3 | 11 |
| 50 | 1.25 | 10 | 5.0 | 32.1 | 11 |
| 60 | 1.20 | 11 | 6.0 | 30.0 | 11 |
| 70 | 1.15 | 11 | 7.0 | 28.0 | 12 |
| 80 | 1.09 | 11 | 8.0 | 26.4 | 13 |
| 90 | 1.04 | 11 | 9.0 | 24.6 | 12 |
| 100 | 0.99 | 12 | 10.0 | 22.5 | 12 |
| 110 | 0.95 | 13 | |||
| 120 | 0.92 | 13 | |||
| 130 | 0.87 | 12 | |||
| 140 | 0.81 | 12 | |||
| 150 | 0.78 | 12 | |||
* Supply Voltage: 28.0 Volts
FILL RATES
| 12-VOLT COMPRESSOR | |
|---|---|
| 2.5 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 2 min. 35 sec. (± 10 sec.) |
| 85 to 105 PSI | 40 sec. (± 05 sec.) |
| 0 to 145 PSI | 4 min. 15 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 25 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 5 min. 15 sec. (± 10 sec.) |
| 85 to 105 PSI | 1 min. 25 sec. (± 05 sec.) |
| 0 to 145 PSI | 8 min. 45 sec. (± 15 sec.) |
| 110 to 145 PSI | 2 min. 55 sec. (± 10 sec.) |
| 24-VOLT COMPRESSOR | |
|---|---|
| 2.5 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 2 min. 25 sec. (± 10 sec.) |
| 85 to 105 PSI | 35 sec. (± 05 sec.) |
| 0 to 145 PSI | 3 min. 30 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 10 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 4 min. 45 sec. (± 10 sec.) |
| 85 to 105 PSI | 1 min. 05 sec. (± 05 sec.) |
| 0 to 145 PSI | 7 min. 25 sec. (± 15 sec.) |
| 110 to 145 PSI | 2 min. 25 sec. (± 10 sec.) |
* Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
