Description

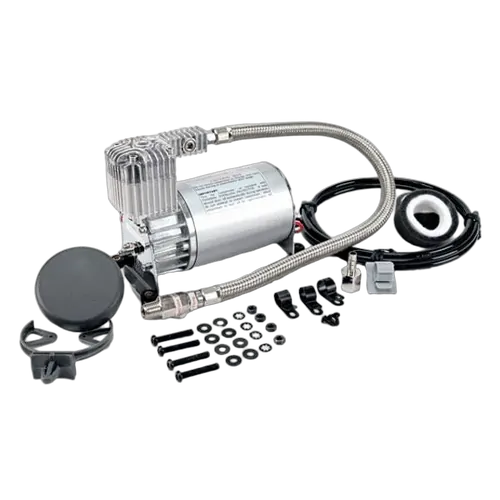

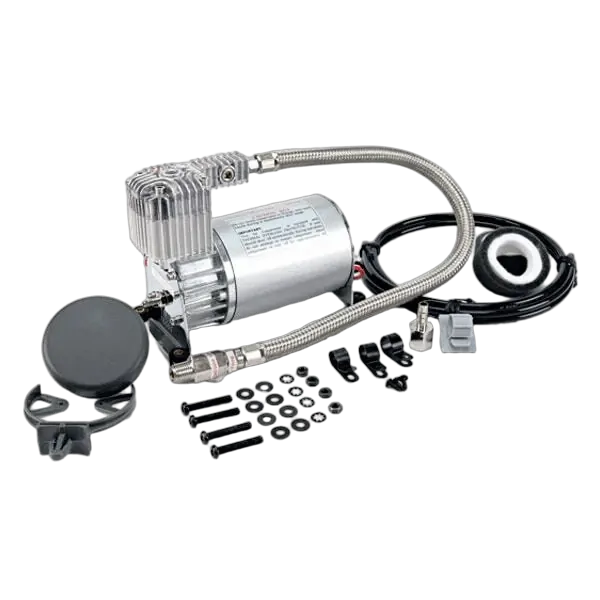

| FEATURES |
|---|
| – Thermal Overload Protector |
| – Check Valve |
| – Vibration Isolators |
| – Mounting Hardware |
| – Stainless Steel Braided Leader Hose |
| – Air Line for Remote Mount Air Filter |
| – Remote Mount Air Filter Assembly |
| – (2) Replacement Air Filter Elements |
| – Installation Instructions |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 25% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Air Tank Size: 2.5 Gallon |
| – Max. 12V Amp Draw: 20-Amps |
| – Ingress Protection Rating: IP54 |
| – Max Ambient Temp: +158°F |
| – Min Ambient Temp: -40°F |
| – Dimensions: 6.5″L x 3.5″W x 4.5″H |
| – Net Weight: 5.20 lbs. |
| – |
| – |
| – |
| – |
| – |
| RECOMMENDED COMPONENTS | |||||
|---|---|---|---|---|---|
| – 0.5 Gallon Tank (P/N 91005) | |||||
| – 1.0 Gallon Tank (P/N 91010, 91014) | |||||
| – 1.5 Gallon Tank (P/N 91015) | |||||
| – 2.0 Gallon Tank (P/N 91022) | |||||
| – 2.5 Gallon Tank (P/N 91025) | |||||
| – 12V Relay (P/N 93940) | |||||
| – 12V Sealed Relays (P/N 93944, 93950) | |||||
| – Pressure Switches (P/N 90100, 90101, 90102) |
|||||
| – Pressure Switches w/ Relay (P/N 90110, 90111, 90113) |
|||||
| – Sealed Pressure Switches (P/N 90217, 90223, 90227) |
|||||
| – Leader Hose w/out Check Valve (P/N 92801, 92803) |
|||||
| – Leader Hose w/ Check Valve (P/N 92807) | |||||
* For 12V Only.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.03 | 10 | 0 | 57.5 | 10 |
| 10 | 1.17 | 12 | 1.0 | 32.0 | 13 |
| 20 | 1.11 | 13 | 2.0 | 30.0 | 14 |
| 30 | 1.04 | 15 | 3.0 | 28.5 | 16 |
| 40 | 1.01 | 15 | 4.0 | 26.5 | 16 |
| 50 | 0.97 | 16 | 5.0 | 24.5 | 17 |
| 60 | 0.92 | 16 | 6.0 | 22.5 | 17 |
| 70 | 0.88 | 17 | 7.0 | 21.5 | 18 |
| 80 | 0.83 | 17 | 8.0 | 20.0 | 18 |
| 90 | 0.79 | 17 | 9.0 | 18.5 | 18 |
| 100 | 0.76 | 18 | 10.0 | 17.0 | 17 |
| 110 | 0.72 | 18 | |||
| 120 | 0.69 | 18 | |||
| 130 | 0.65 | 18 | |||
| 140 | 0.62 | 17 | |||
| 150 | 0.57 | 17 |
* Supply Voltage: 13.8 Volts
FILL RATES
| 1.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 1 min. 05 sec. (± 05 sec.) |
| 85 to 105 PSI | 14 sec. (± 03 sec.) |
| 0 to 145 PSI | 1 min. 45 sec. (± 05 sec.) |
| 110 to 145 PSI | 30 sec. (± 03 sec.) |
| 2.5 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 2 min. 45 sec. (± 10 sec.) |
| 85 to 105 PSI | 40 sec. (± 05 sec.) |
| 0 to 145 PSI | 4 min. 30 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 35 sec. (± 05 sec.) |
* Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
Specifications
| SKU | V27520 |
|---|---|
| Barcode # | 9322046880226 |
| Brand | Bushranger 4x4 Gear |
| Shipping Weight | 4.0000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.250m |
| Shipping Length | 0.150m |
