Features
• Very low profile black bezel follows the curve of the lens to eliminate any water ‘trapping’
• White graphics and pointer on a black dial background
• Where applicable, metric information is shown in blue
• Light piping directs red light behind the translucent dial and white light to the pointer for optimal night vision
• Fog free domed glass lens is scratch resistant
• Suitable for 24 volt application with the addition of a drop resistor (112394, 112396) and 24 volt bulb 112390
• Shielded to prevent magnetic interference
• Silicone dampened
FOG FREE
| DIMENSIONS | A MM | B MM | C MM | D MM |
|---|
| 75mm Tacho | 96 | 86 | 70 | 13 |
| 75mm Speedometer | 96 | 86 | 82 | 13 |
| 50mm Electrical | 61 | 53 | 63 | 11 |
| BLA CODE | DESCRIPTION | FACE DIA. MM | *SENDER STYLE |
|---|
| Tachometers: | |||
| 112224 | Tacho 7000 RPM inboard & outboard | 75 | Coil and O/board alt |
| 112226 | Tacho 4000 RPM diesel alternator | 75 | Motor Alternator |
| Speedometer: | |||
| 112230 | Speedo kit 35 MPH | 75 | G included |
| 112232 | Speedo kit 50 MPH | 75 | G included |
| 112234 | Speedo kit 65 MPH | 75 | G included |
| Kits include 20' of pitot hose | |||
| Water temperature gauge: | |||
| 112242 | Water temperature 100ºF - 240ºF | 50 | D |
| 112246 | Water pressure gauge kit 0 - 40 psi | 50 | WP Included |
| Oil pressure: | |||
| 112252 | Oil pressure 0 - 80 PSI | 50 | C |
| 112254 | Oil pressure 0 - 100 PSI | 50 | C |
| Hourmeter: | |||
| 112258 | Hourmeter, 10,000 Hrs | 50 | Not required |
| Voltmeter: | |||
| 112262 | Voltmeter, 10 - 16 volt | 50 | Not required |
| Fuel: | |||
| 112268 | Fuel | 50 | F |
| Trim: | |||
| 112272 | Evinrude®/Johnson® outboards | 50 | Engine manufacturer |
| 112273 | Honda® outboards | 50 | Engine manufacturer |
| 112274 | Mercury®/Mariner®, Cobra®, Volvo® DP & SX, Yamaha® O/B 2001 on | 50 | Engine manufacturer |
Accessories
112394 Drop resistor suit 75mm gauge
112396 Drop resistor suit 50mm gauge
112390 24 volt bulb
| SKU | 112273 |
|---|---|
| Barcode # | 731957402684 |
| Brand | Veethree Instruments |
| Shipping Weight | 1.0000kg |

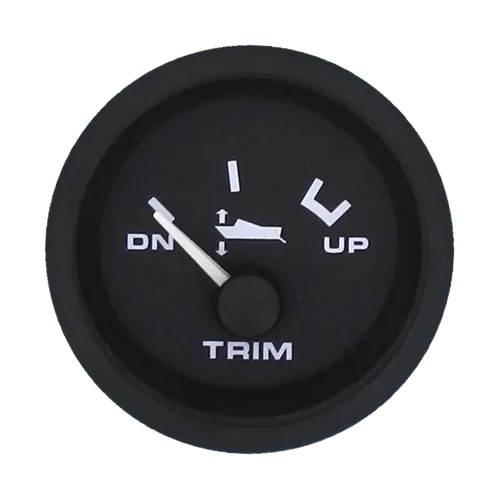

Veethree Instruments - Premier Pro Domed Trim Gauge Suits Honda
