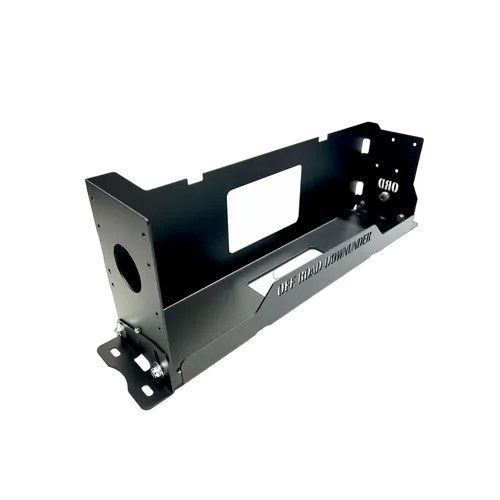

Our latest Off Road Downunder Pty Ltd Slimline Battery Tray is designed for the latest slimline battery to allow a space saving / slimline installation, in particular inside cargo area of SUV wagons and 4×4 canopy installs.

The ORD Slimline Battery Tray is designed for the Invicta 150Ah Slimline Lithium battery which is (561mm Long x 125mm Wide x 316mm High) +-2mm

Design Registered and Certified Product (number: 201916430) – Australian Made and designed by Off Road Downunder Pty Ltd.

Key features:

• Unique registered design mounting system with adjustable rearward tilt: Designed specifically to allow the battery tray to match cargo barrier behind rear seat in SUV wagons. Now with Series 2 LOW PROFILE mounts
• Offers up to 17 degrees of rearward tilting range.
• Mounting provisions for Redarc BCDC1225D, BCDC1240D or BCDC1250D chargers as well as Projecta IDC25 charger.
• Midi Fuse holder provisions x 2
• Option: Battery tray can be mounted straight to battery tray base without slightly raised mounting feet. Rubber insert mat is required part number: BTSL100-UNI-RI suits the BTSL150-UNI (sold separately)
• Zinc under coated and finished in durable black powder-coat.
• Battery location bump stops.
• Heavy duty load rated cam-buckle straps x 2

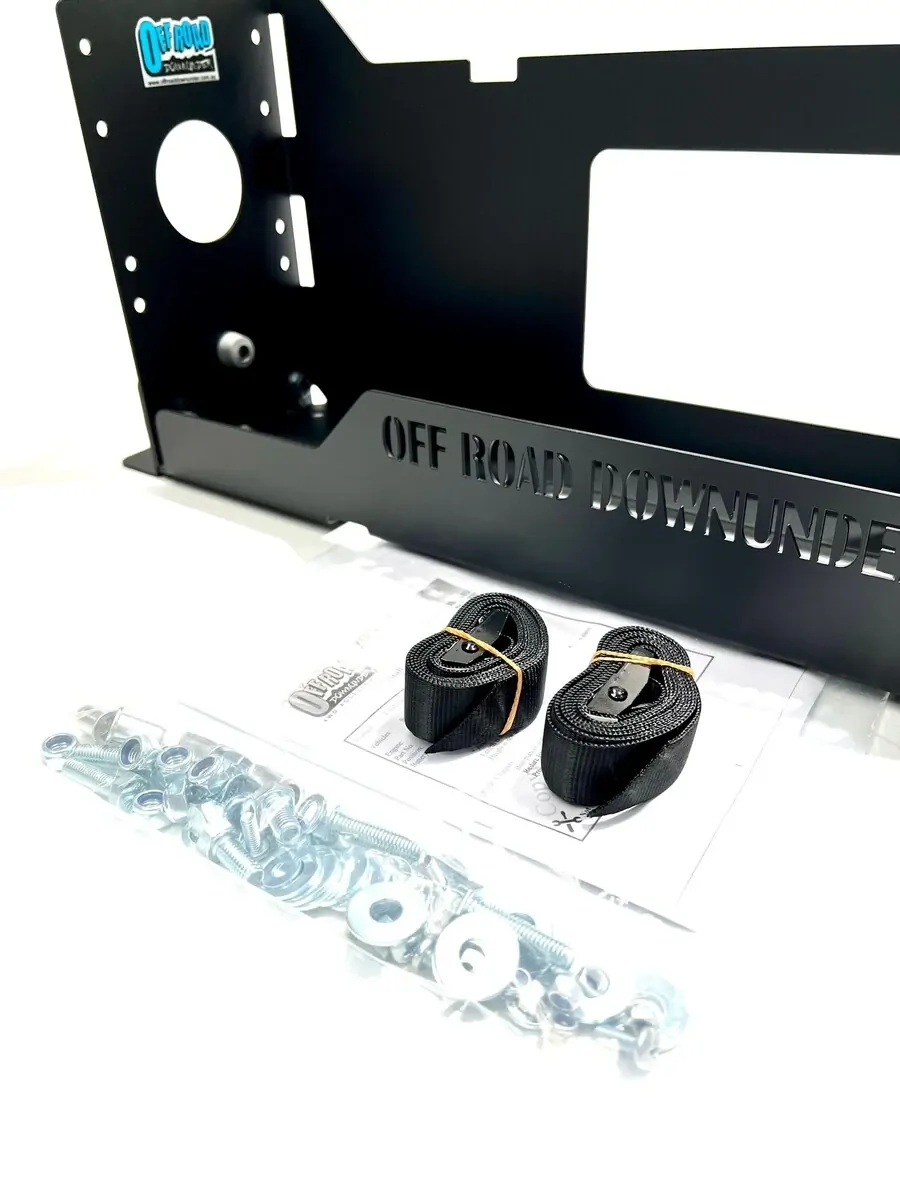

• Installation instructions and mounting hardware provided.

Battery Tray Sizes:

Total External Length of battery tray including mounting feet = 670mm L

External Length of battery tray without mounting feet = 590mm L

Total External Width = 140mm W

Total Height including Series 2 low profile mounting feet = 236mm H

Height without raised mounting feet = 230mm H

Internal Tray Size =565mm L between rubber bump stops x 135mm W

*Invicta 150Ah Lithium Battery , Midi fuse holders and Redarc BCDC charger Sold Separately (shown for display purposes).

NOTE: Some images will display the previous series 1 mounting brackets – The Series 2 low profile is now current as from Aug 2021.
