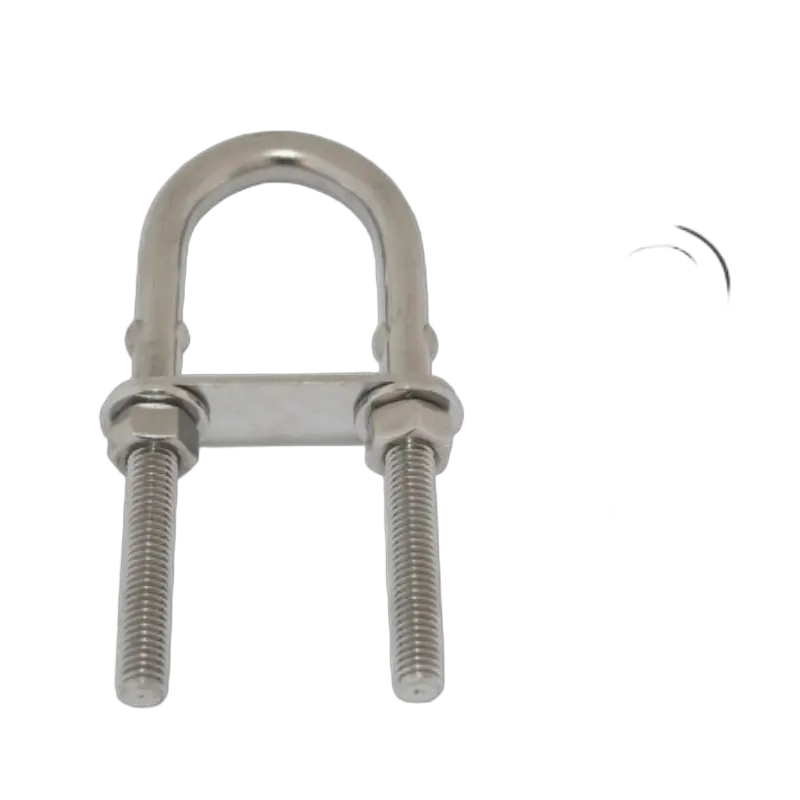

304 grade stainless steel with crimped shaft and metric shaft thread. Supplied with 1 x cross plate,
2 x washers and 2 x hex nuts.
PART NUMBER | GAUGE (D) SIZE | OVERALL LENGTH (L) | TOP LENNGTH (L1) | BOTTOM LENGTH (L2) | WIDTH (A) | THREAD LENGTH (B) |
---|---|---|---|---|---|---|
RWB-2413 | 6mm | 80mm | 30mm | 45mm | 35mm | 40mm |
RWB-2409 | 8mm | 80mm | 35mm | 45mm | 35mm | 40mm |
RWB-2410 | 8mm | 100mm | 40mm | 60mm | 35mm | 48mm |
RWB-2411 | 10mm | 130mm | 55mm | 75mm | 53mm | 55mm |
RWB-2412 | 12mm | 150mm | 75mm | 75mm | 60mm | 60mm |
SKU | RWB2413 |
---|---|
Barcode # | 9324608004507 |
Brand | RWB |
Shipping Weight | 1.0000kg |
