Turning Point Mach4 Express Blade Stainless Steel Propeller only - EX1/EX2 Model. Note that a Turning Point propeller hub kit needs to be purchased separately to the propeller.

The Prop that put the “four” in Perfourmance! Turning Point’s Four Blade Hustler revolutionised the aluminum propeller market when introduced over 6 years ago. No one had ever produced an aluminium propeller with two different blade shapes for 90-300+hp applications and a state-of-the-art Swept Cleaver design for 40-150hp applications.

These props re-wrote the rules, proving that you can run a four-blade that has unprecedented holeshot, handling, and rough water stability without the top-end speed loss you experience with other manufacturers’ propellers.

The Express Mach4 series is perfect for any application that demands enhanced acceleration, cornering, and load carrying capabilities. This prop series is ideally suited for watersports, sterndrive boats, tri-toons, bay boats, and any vessel that can use a stern lift. It is the best upgrade of older stainless designs from the ’70s, ’80s, '90s, and ’00s, and will outrun most newer props, including five blade ski props.

Choosing your Turning Point propeller is a two-step process:

  1. This propeller suits the motors listed below. If your motor is not listed, see other Turning Point propellers.
  2. Purchase the associated Hub Installation Kit which should suit the drive shaft on your outboard.
PART NUMBER PITCH / MODEL DIAMETER MODEL #
TPT-202766 15"/ 4 13.5" EX1/EX2-1315-4
TPT-202776 15" / 4L 13.5" EX1/EX2-1315-4L
TPT-202768 17" / 4 13.25" EX1/EX2-1317-4
TPT-202778 17" / 4L 13.25" EX1/EX2-1317-4L
TPT-202770 19" / 4 13" EX1/EX2-1319-4
TPT-202780 19" / 4L 13" EX1/EX2-1319-4L
TPT-202781 21" / 4 13" EX1/EX2-1321-4
TPT-202782 21" / 4L 13" EX1/EX2-1321-4L
TPT-202765 13" / 4 14" EX1/EX2-1413-4

NOTE - PROPELLER HUB KIT IS SOLD SEPARATELY. SEE TABLE BELOW.

This propeller is compatible with the following outboard motors

MANUFACTURER SUITS MODEL SPLINES HUB KIT SELECTION
Parsun T60, T75, T85, T90 15 500 Hub Kit
Yamaha High Thrust: FT50, FT60 / 2 stroke: 60 to 100hp / 4 stroke: 70, 80, 90 ('03-'16), 100hp.
If prop strikes trim tab, replace with Yamaha part #6E5-45371-10
15 500 Hub Kit
Force 75hp ('99) / 90hp to 150hp ('95+) 15 501 Hub Kit
Honda ('95-'98): 75hp, 90hp 15 501 Hub Kit
Mercury & Mariner 2 & 4 stroke) 40 to 60 Bigfoot / 70 (‘87-’89) / 75, 80 (‘78-’89), 90, 100, 115, 125, 140hp / 150 XR4/6
(thru 1993, includes equivalent Mariner Magnum I, II, III.)
EFI CT & SeaPro 4cyl: 40 to 75hp / OptiMax: 75, 90, 115, 125hp
15 501 Hub Kit
Suzuki & Johnson DF 4 stroke: 50AV, 60AV, 115A, 140, 140A use 4 blade props only 501 Hub Kit
Evinrude & Johnson 2 cyl: 50hp ('71-'74) / 45 to 55hp commercial
3 cyl: 55, 60, 65, 70hp, 75hp with large gearcase, 65hp commercial
4 cyl: 75, 85, 88, 90, 100, 110, 115, 120 ('86-'94), 125, 135 ('73-'76), 140 ('77-'84, '86-'94) /
H.O. (includes E-TEC H.O.): 60, 90, 115hp
E-TEC: 40, 50, 60, 65, 75hp / 20” shaft: 90, 115hp (not pontoon series), 130hp ('09-'10)
13 503 Hub Kit
OMC Cobra 400: 2.3 to 3.0L ('78-'89) / Sea Drive: 1.6 to 1.8L 13 503 Hub Kit
Nissan & Tohatsu 60C, 70C / 90 to 140hp(not BFT) 15 505 Hub Kit
Yamaha 2 stroke: 115 to 130hp / 4 stroke: 90 ('17+), 115hp.
Note: If prop strikes trim tab, replace with Yamaha part #6E5-45371-10
15 505 Hub Kit
Evinrude & Johnson 4 stroke: 60hp, 70hp 13 506 Hub Kit
Suzuki DT 2 Stroke ('89+): 75 to 140hp / DF 4 Stroke ('98-'09): 60hp, 70hp 13 506 Hub Kit
Honda P60 / 75, 90 (‘99+) / 100, 115, 130hp. (not 115D) 15 507 Hub Kit
Nissan & Tohatsu BFT (‘14+): W60, 60, 75, 90hp 15 507 Hub Kit
Suzuki & Johnson 4 stroke: (‘09+) 70A, 80A, 90A, 70, 80 / (‘01+) 90, 100, 115 (Not 115A) Use 4 blade props only 509 Hub Kit
SKU 202768
Barcode # 652480200731
Brand Turning Point
Shipping Weight 9.9000kg

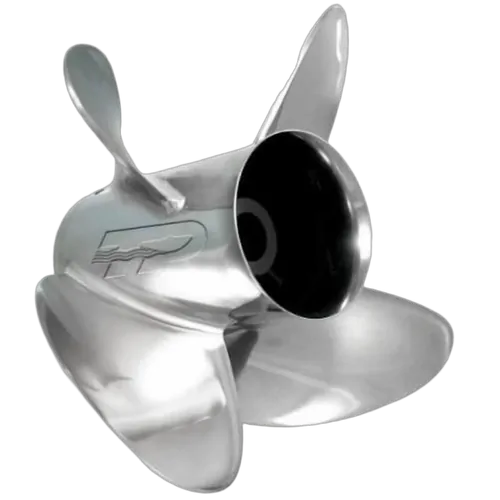

TURNING POINT EXPRESS PROPELLER -EX1/EX2 13.25" X 17P" 4 BLADE

SKU: 202768
