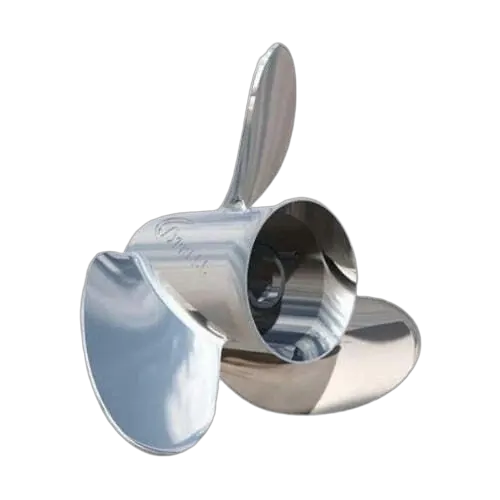

Turning Point Mach3 Express Blade Stainless Steel Propeller only - EX1/EX2 Model. Note that a Turning Point propeller hub kit needs to be purchased separately to the propeller.
Utilizing almost 40 years of race boat and high-performance prop design expertise, the Express Mach3 series of props captures all the best techniques and technologies available to get the most out of the boat.
Aggressive pitch angles, radical designs, sharp cup profiles, these 3 blade propellers excel at achieving maximum speed while delivering Best-in-Class handling and acceleration.
Upgrading your current propeller from aluminum to stainless steel, or from an old generation design to the latest technology, Express Mach3 Propeller is the best investment in boat improvement you can make. Today's New Designs will run circles around the competition and can make dramatic improvements in boat performance.
The gain in fuel economy can often pay for the cost of a new propeller in one or two seasons, making it a sound investment in your time on the water. Express Mach3 props are available for 9.9 (Bigfoot) to 300+hp outboards and sterndrives.
Choosing your Turning Point propeller is a two-step process:
- This propeller suits the motors listed below. If your motor is not listed, see other Turning Point propellers.
- Purchase the associated Hub Installation Kit which should suit the drive shaft on your outboard.
PART NUMBER | PITCH | DIAMETER | MODEL |
---|---|---|---|
TPT-202715 | 15" | 13.75" | EX1/EX2-1315 |
TPT-202717 | 17" | 13.25" | EX1/EX2-1317 |
TPT-202719 | 19" | 10.25" | EX1/EX2-1319 |
TPT-202721 | 21" | 10.25" | EX1/EX2-1321 |
NOTE - PROPELLER HUB KIT IS SOLD SEPARATELY. SEE TABLE BELOW.
This propeller is compatible with the following outboard motors:
MANUFACTURER | SUITS MODEL | SPLINES | HUB KIT SELECTION |
---|---|---|---|
Parsun | T60, T75, T85, T90 | 15 | 500 Hub Kit |
Yamaha | High Thrust: FT50, FT60 / 2 stroke: 60 to 100hp / 4 stroke: 70, 80, 90 ('03-'16), 100hp. If prop strikes trim tab, replace with Yamaha part #6E5-45371-10 |
15 | 500 Hub Kit |
Force | 75hp ('99) / 90hp to 150hp ('95+) | 15 | 501 Hub Kit |
Honda | ('95-'98): 75hp, 90hp | 15 | 501 Hub Kit |
Mercury & Mariner | 2 & 4 stroke) 40 to 60 Bigfoot / 70 (‘87-’89) / 75, 80 (‘78-’89), 90, 100, 115, 125, 140hp / 150 XR4/6 (thru 1993, includes equivalent Mariner Magnum I, II, III.) EFI CT & SeaPro 4cyl: 40 to 75hp / OptiMax: 75, 90, 115, 125hp |
15 | 501 Hub Kit |
Suzuki & Johnson | DF 4 stroke: 50AV, 60AV, 115A, 140, 140A | use 4 blade props only | 501 Hub Kit |
Evinrude & Johnson | 2 cyl: 50hp ('71-'74) / 45 to 55hp commercial 3 cyl: 55, 60, 65, 70hp, 75hp with large gearcase, 65hp commercial 4 cyl: 75, 85, 88, 90, 100, 110, 115, 120 ('86-'94), 125, 135 ('73-'76), 140 ('77-'84, '86-'94) / H.O. (includes E-TEC H.O.): 60, 90, 115hp E-TEC: 40, 50, 60, 65, 75hp / 20” shaft: 90, 115hp (not pontoon series), 130hp ('09-'10) |
13 | 503 Hub Kit |
OMC | Cobra 400: 2.3 to 3.0L ('78-'89) / Sea Drive: 1.6 to 1.8L | 13 | 503 Hub Kit |
Nissan & Tohatsu | 60C, 70C / 90 to 140hp(not BFT) | 15 | 505 Hub Kit |
Yamaha | 2 stroke: 115 to 130hp / 4 stroke: 90 ('17+), 115hp. Note: If prop strikes trim tab, replace with Yamaha part #6E5-45371-10 |
15 | 505 Hub Kit |
Evinrude & Johnson | 4 stroke: 60hp, 70hp | 13 | 506 Hub Kit |
Suzuki | DT 2 Stroke ('89+): 75 to 140hp / DF 4 Stroke ('98-'09): 60hp, 70hp | 13 | 506 Hub Kit |
Honda | P60 / 75, 90 (‘99+) / 100, 115, 130hp. (not 115D) | 15 | 507 Hub Kit |
Nissan & Tohatsu | BFT (‘14+): W60, 60, 75, 90hp | 15 | 507 Hub Kit |
Suzuki & Johnson | 4 stroke: (‘09+) 70A, 80A, 90A, 70, 80 / (‘01+) 90, 100, 115 (Not 115A) | Use 4 blade props only | 509 Hub Kit |
SKU | 202717 |
---|---|
Barcode # | 652480200724 |
Brand | Turning Point |
Shipping Weight | 9.9000kg |
