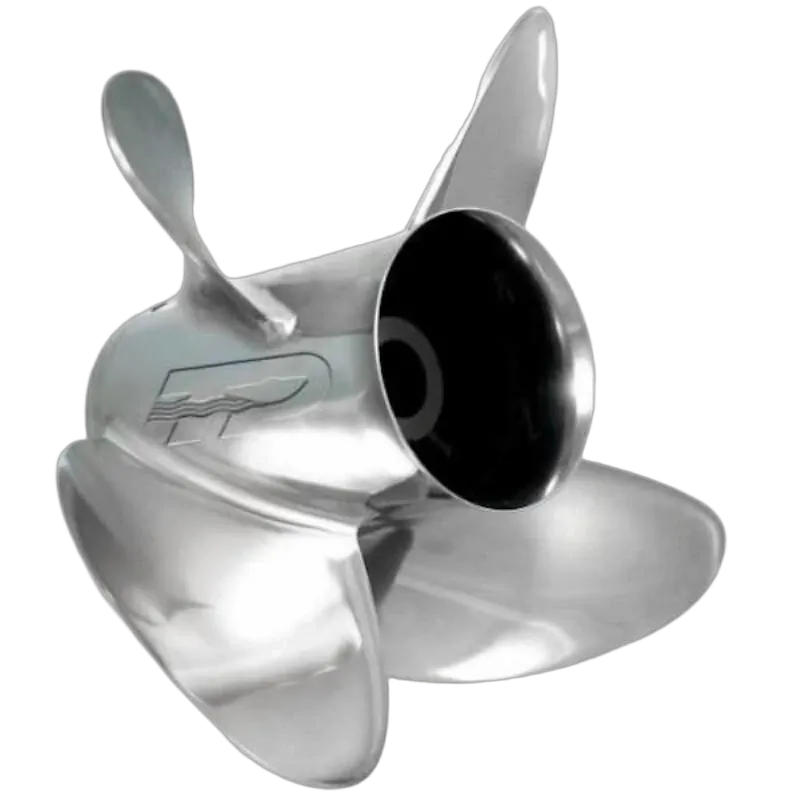

Turning Point Mach4 Express Blade Stainless Steel Propeller only - EX1/EX2 Model. Note that a Turning Point propeller hub kit needs to be purchased separately to the propeller.
The Prop that put the “four” in Perfourmance! Turning Point’s Four Blade Hustler revolutionised the aluminum propeller market when introduced over 6 years ago. No one had ever produced an aluminium propeller with two different blade shapes for 90-300+hp applications and a state-of-the-art Swept Cleaver design for 40-150hp applications.
These props re-wrote the rules, proving that you can run a four-blade that has unprecedented holeshot, handling, and rough water stability without the top-end speed loss you experience with other manufacturers’ propellers.
The Express Mach4 series is perfect for any application that demands enhanced acceleration, cornering, and load carrying capabilities. This prop series is ideally suited for watersports, sterndrive boats, tri-toons, bay boats, and any vessel that can use a stern lift. It is the best upgrade of older stainless designs from the ’70s, ’80s, '90s, and ’00s, and will outrun most newer props, including five blade ski props.
Choosing your Turning Point propeller is a two-step process:
- This propeller suits the motors listed below. If your motor is not listed, see other Turning Point propellers.
- Purchase the associated Hub Installation Kit which should suit the drive shaft on your outboard.
PART NUMBER | PITCH / MODEL | DIAMETER | MODEL # |
---|---|---|---|
TPT-202766 | 15"/ 4 | 13.5" | EX1/EX2-1315-4 |
TPT-202776 | 15" / 4L | 13.5" | EX1/EX2-1315-4L |
TPT-202768 | 17" / 4 | 13.25" | EX1/EX2-1317-4 |
TPT-202778 | 17" / 4L | 13.25" | EX1/EX2-1317-4L |
TPT-202770 | 19" / 4 | 13" | EX1/EX2-1319-4 |
TPT-202780 | 19" / 4L | 13" | EX1/EX2-1319-4L |
TPT-202781 | 21" / 4 | 13" | EX1/EX2-1321-4 |
TPT-202782 | 21" / 4L | 13" | EX1/EX2-1321-4L |
TPT-202765 | 13" / 4 | 14" | EX1/EX2-1413-4 |
NOTE - PROPELLER HUB KIT IS SOLD SEPARATELY. SEE TABLE BELOW.
This propeller is compatible with the following outboard motors
MANUFACTURER | SUITS MODEL | SPLINES | HUB KIT SELECTION |
---|---|---|---|
Parsun | T60, T75, T85, T90 | 15 | 500 Hub Kit |
Yamaha | High Thrust: FT50, FT60 / 2 stroke: 60 to 100hp / 4 stroke: 70, 80, 90 ('03-'16), 100hp. If prop strikes trim tab, replace with Yamaha part #6E5-45371-10 |
15 | 500 Hub Kit |
Force | 75hp ('99) / 90hp to 150hp ('95+) | 15 | 501 Hub Kit |
Honda | ('95-'98): 75hp, 90hp | 15 | 501 Hub Kit |
Mercury & Mariner | 2 & 4 stroke) 40 to 60 Bigfoot / 70 (‘87-’89) / 75, 80 (‘78-’89), 90, 100, 115, 125, 140hp / 150 XR4/6 (thru 1993, includes equivalent Mariner Magnum I, II, III.) EFI CT & SeaPro 4cyl: 40 to 75hp / OptiMax: 75, 90, 115, 125hp |
15 | 501 Hub Kit |
Suzuki & Johnson | DF 4 stroke: 50AV, 60AV, 115A, 140, 140A | use 4 blade props only | 501 Hub Kit |
Evinrude & Johnson | 2 cyl: 50hp ('71-'74) / 45 to 55hp commercial 3 cyl: 55, 60, 65, 70hp, 75hp with large gearcase, 65hp commercial 4 cyl: 75, 85, 88, 90, 100, 110, 115, 120 ('86-'94), 125, 135 ('73-'76), 140 ('77-'84, '86-'94) / H.O. (includes E-TEC H.O.): 60, 90, 115hp E-TEC: 40, 50, 60, 65, 75hp / 20” shaft: 90, 115hp (not pontoon series), 130hp ('09-'10) |
13 | 503 Hub Kit |
OMC | Cobra 400: 2.3 to 3.0L ('78-'89) / Sea Drive: 1.6 to 1.8L | 13 | 503 Hub Kit |
Nissan & Tohatsu | 60C, 70C / 90 to 140hp(not BFT) | 15 | 505 Hub Kit |
Yamaha | 2 stroke: 115 to 130hp / 4 stroke: 90 ('17+), 115hp. Note: If prop strikes trim tab, replace with Yamaha part #6E5-45371-10 |
15 | 505 Hub Kit |
Evinrude & Johnson | 4 stroke: 60hp, 70hp | 13 | 506 Hub Kit |
Suzuki | DT 2 Stroke ('89+): 75 to 140hp / DF 4 Stroke ('98-'09): 60hp, 70hp | 13 | 506 Hub Kit |
Honda | P60 / 75, 90 (‘99+) / 100, 115, 130hp. (not 115D) | 15 | 507 Hub Kit |
Nissan & Tohatsu | BFT (‘14+): W60, 60, 75, 90hp | 15 | 507 Hub Kit |
Suzuki & Johnson | 4 stroke: (‘09+) 70A, 80A, 90A, 70, 80 / (‘01+) 90, 100, 115 (Not 115A) | Use 4 blade props only | 509 Hub Kit |
SKU | 202781 |
---|---|
Barcode # | 652480206696 |
Brand | Turning Point |
Shipping Weight | 9.9000kg |
