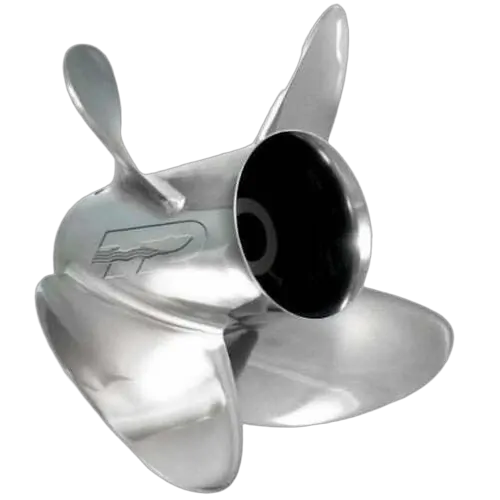

Turning Point Mach4 Express Blade Stainless Steel Propeller only - EX Model. Note that a Turning Point propeller hub kit needs to be purchased separately to the propeller.
The Prop that put the “four” in Perfourmance! Turning Point’s Four Blade Hustler revolutionised the aluminum propeller market when introduced over 6 years ago. No one had ever produced an aluminium propeller with two different blade shapes for 90-300+hp applications and a state-of-the-art Swept Cleaver design for 40-150hp applications.
These props re-wrote the rules, proving that you can run a four-blade that has unprecedented holeshot, handling, and rough water stability without the top-end speed loss you experience with other manufacturers’ propellers.
The Express Mach4 series is perfect for any application that demands enhanced acceleration, cornering, and load carrying capabilities. This prop series is ideally suited for watersports, sterndrive boats, tri-toons, bay boats, and any vessel that can use a stern lift. It is the best upgrade of older stainless designs from the ’70s, ’80s, '90s, and ’00s, and will outrun most newer props, including five blade ski props.
NOTE: **Motors 200HP and above must use series 700 Hub Kits. Failure to use will void warranty.
Choosing your Turning Point propeller is a two-step process:
- This propeller suits the motors listed below. If your motor is not listed, see other Turning Point propellers.
- Purchase the associated Hub Installation Kit which should suit the drive shaft on your outboard.
PART NUMBER | PITCH / ROTATION | DIAMETER | MODEL # |
---|---|---|---|
TPT-202850 | 15" / Right | 15" | EX-1515-4 |
TPT-202860 | 15" / Left | 15" | EX-1515-4L |
TPT-202852 | 17" / Right | 14.5" | EX-1417-4 |
TPT-202862 | 17" / Left | 14.5" | EX-1417-4L |
TPT-202854 | 19" / Right | 14" | EX-1419-4 |
TPT-202864 | 19" / Left | 14" | EX-1419-4L |
TPT-202856 | 21" / Right | 14" | EX-1421-4 |
TPT-202866 | 21" / Left | 14" | EX-1421-4L |
NOTE - PROPELLER HUB KIT IS SOLD SEPARATELY. SEE TABLE BELOW.
This propeller is compatible with the following outboard motors
MANUFACTURER | SUITS MODEL | SPLINES | HUB KIT | NOTES |
---|---|---|---|---|
Mercury & Mariner | EFI CT / SeaPro : 90 to150hp / V6 & I6: 135 to 300hp / Verado 135 to 300hp(not HD) / OptiMax: 150, 200, 250hp | 15 | 501 & 701 | Use 701 Super Duty Kit for 200+hp Engines. 115hp ProXS CT Only; For ProXS & Verado w/ 1.25 prop shaft, use Mercury Solid Hub kit with the Turning Point Prop. |
Mercruiser | Alpha One and Bravo One ('83+) | 15 | 501 & 701 | Use 701 Super Duty Kit for 200+hp Engines. If propeller strikes trim tab, replace with Mercury part #822777A1 |
Evinrude & Johnson | V4 with V6 large gearcase: 100hp commercial, 120hp ('85),130hp ('95-'96), 140hp ('85), Pleasure ('95+): 115hp, 130hp / H.O. (includes E-TEC H.O.): (25" shaft) 90, 115, 135, 150, 200, 225, 250hp E-TEC (includes pontoon series - not for E-TEC G2): (25" shaft) 90hp, 115hp, 130hp ('09-'10), 135hp to 300hp / V6: 135hp to 250hp / V8: 250hp to 300hp |
15 | 502 | |
Honda | Cobra 800: 3.0 to 7.5L / King Cobra: 454, 502 / Sea Drive: 2.0 to 4.0L | 15 | 502 | |
Volvo | Penta SX & OMC SX Cobra: (19 spline) ('94+): 3.0 to 8.2L. Not available for Volvo DuoProp or Aquamatic drives | 19 | 504 | |
Yamaha | 15 | 505 | Use 705 Super Duty Kit for 200+hp Engines. If Express Mach3 OS Prop strikes trim tab, replace with part #6E5-45371-10-00 |
|
Honda | BF115D, BF135, BF150, BF200 ('02-'12), BF225 ('02-'12). Use 707 Super Duty Kit for 200+hp Engines | 15 | 507 & 707 | |
Suzuki | DT 2 stroke: 150hp to 225hp. DF 4 stroke: 150 to 300hp. Use 707 Super Duty Kit for 200+hp Engines | 15 | 507 & 707 | Use Express Mach3 OS series props only |
Tohatsu | BFT115, BFT150, BFT200, BFT225, BFT250. Use 708 Super Duty Kit for 200+hp Engines | 15 | 508 & 708 | |
Volvo | Penta AQ; 200, 250, 270, 280, 290. (Use 4 blade props only) | 17 | 510 | |
Evinrude | E-TEC G2: G2 Series Only: 150 to 300hp | 15 | 511 | |
Yamaha | 2 and 4 stroke: 150 to 250hp / F300 (V6 only ‘09+) / Sterndrives 3.0 to 7.4L | 15 | 705 | |
Johnson | 4 stroke: 200hp, 225hp. (Use Express Mach3 OS series props only) | 15 | 707 | |
Honda | BF200A ('13+), BF225A ('13+), BF250A ('12+). Use 708 Super Duty Kit for 200+hp Engines | 15 | 708 | |
Yamaha | F350 | 15 | 715 |
SKU | 202852 |
---|---|
Barcode # | 652480200816 |
Brand | Turning Point |
Shipping Weight | 9.9000kg |
