FEATURES |

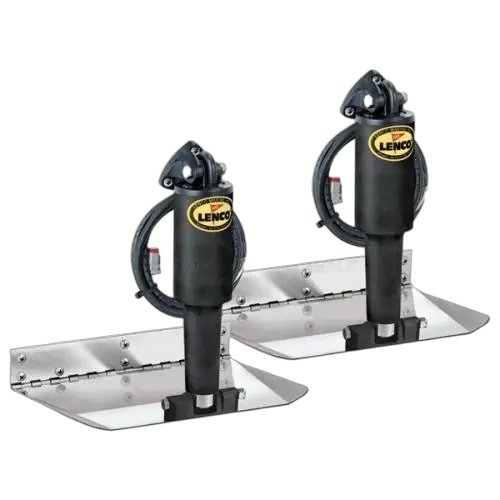

• The reverse mount trim tab has a short ram, perfect where space is limited on the transoms or reverse if there is a swim platform. • The actuator can be installed on the underside of a swim platform and does not impede tab movement (as seen in Diagram A). • Lenco Electric Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small boat or a large yacht. • The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. • Plates 12 gauge - 304G stainless steal and 1/8 inch diameter hinge pin. • Equipped with a fast response electric actuators for precise control. • Fully submersible with all Plug and Play Deutsch connections. • Compliance: CE Certified . • 5 Year Warranty (Recreational Use). Kit Includes: • 2 x 12 gauge stainless steel trim tab blades L 9 inch x W 12 inch with welded on lower mount bracket 5/16 inch hole. • 2 x 101XDS actuators with 6' lead and Deutsch plugs. • 2 x 20' actuator extension wiring harnesses. • 2 x Upper mounting bracket with gland seal. • 2 x XD lower mounting bracket. • All necessary stainless steel mounting hardware. |
Part No. | 55498 |
Length | 9 inch (229mm) |
Width | 12 inch (305mm) |
Hinge Height | 54mm |
Min. Transom Height | 300mm |
Approx Boat Length | 5Mtr - 8Mtr |
Finish | Electro Polished |
Series | Reverse Mount |
Switch | Not Included |
Volts | 12V |
Note | Switch kits sold separately. 12 Volt only. |
SKU | 55498 |
---|---|
Barcode # | 9330420186376 |
Brand | Lenco |
Shipping Weight | 12.0000kg |
