Fitment: For Ford Ranger PXI, II, III 2011-Onwards

The new release Upper Control Arms from Tough Dog are designed to return a vehicle’s suspension and steering geometry to standard after it has been lifted. When an IFS vehicle is fitted with a suspension lift, the original caster and camber specifications are pushed outside the acceptable limit. The vehicle loses caster which makes the steering vague, and positive camber is introduced, which contributes to uneven and accelerated tyre wear. While most of this can be adjusted using the factory wheel alignment adjustment points, the geometry of the suspension is not quite the same as OEM. The Tough Dog Upper Control Arms are fixed length and position arms, which guards against the alignment being knocked out of specification by a solid offroad hit. On top of the alignment issues, clearance problems between the strut and the upper control arm on down travel can also occur. The slim line tubular design of Tough Dog Upper Control Arms create the maximum possible clearance.

Product features:

  • Chromely ball joints
  • Heavy duty high felex bushing
  • Improved clearance
  • Corrects caster & camber
  • 1020 grade forged housings

Tough Dog UCA’s are built tough. The end housings are forged from 1020 grade steel, as is the ball joint housing, which has been specifically crafted with a slim line design to maximise clearance. The bushings are heavy duty, high flex style design requiring no lubrication, for maximum life span in rough terrain. The ball joint is constructed of high strength Chromoly steel. For ease of servicing, all Tough Dog UCAs are designed to accept original equipment bushings and ball joint parts as spares should you ever need to. Tough Dog Upper Control arms can help get the maximum performance and lifespan from your suspension and steering components.

SKU TDCA-003-RA-KT
Brand Tough Dog
Shipping Weight 8.0000kg

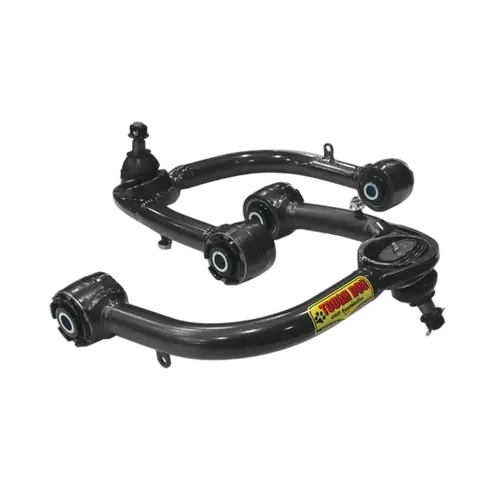

Tough Dog Upper Control Arm to Suit Ford Ranger PXI, II, III 2011-Onwards 4WD 4X

SKU: TDCA-003-RA-KT
Sale price
$580.99
RRP $799.99
Earn 5,800 Outback Rewards Points
Sale price
$580.99
DON'T PAY RRP $799.99
PayPal Checkout
4 payments of $145.25

afterpay More info.

Make 4 payments of $145.25 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $145.25
The Tough Dog Upper Control Arm is designed to restore the suspension and steering geometry in your Ford Ranger after it has been lifted. Made from high strength, durable 1020 grade steel.

Calculate Shipping

Fitment: For Ford Ranger PXI, II, III 2011-Onwards

The new release Upper Control Arms from Tough Dog are designed to return a vehicle’s suspension and steering geometry to standard after it has been lifted. When an IFS vehicle is fitted with a suspension lift, the original caster and camber specifications are pushed outside the acceptable limit. The vehicle loses caster which makes the steering vague, and positive camber is introduced, which contributes to uneven and accelerated tyre wear. While most of this can be adjusted using the factory wheel alignment adjustment points, the geometry of the suspension is not quite the same as OEM. The Tough Dog Upper Control Arms are fixed length and position arms, which guards against the alignment being knocked out of specification by a solid offroad hit. On top of the alignment issues, clearance problems between the strut and the upper control arm on down travel can also occur. The slim line tubular design of Tough Dog Upper Control Arms create the maximum possible clearance.

Product features:

  • Chromely ball joints
  • Heavy duty high felex bushing
  • Improved clearance
  • Corrects caster & camber
  • 1020 grade forged housings

Tough Dog UCA’s are built tough. The end housings are forged from 1020 grade steel, as is the ball joint housing, which has been specifically crafted with a slim line design to maximise clearance. The bushings are heavy duty, high flex style design requiring no lubrication, for maximum life span in rough terrain. The ball joint is constructed of high strength Chromoly steel. For ease of servicing, all Tough Dog UCAs are designed to accept original equipment bushings and ball joint parts as spares should you ever need to. Tough Dog Upper Control arms can help get the maximum performance and lifespan from your suspension and steering components.

SKU TDCA-003-RA-KT
Brand Tough Dog
Shipping Weight 8.0000kg
