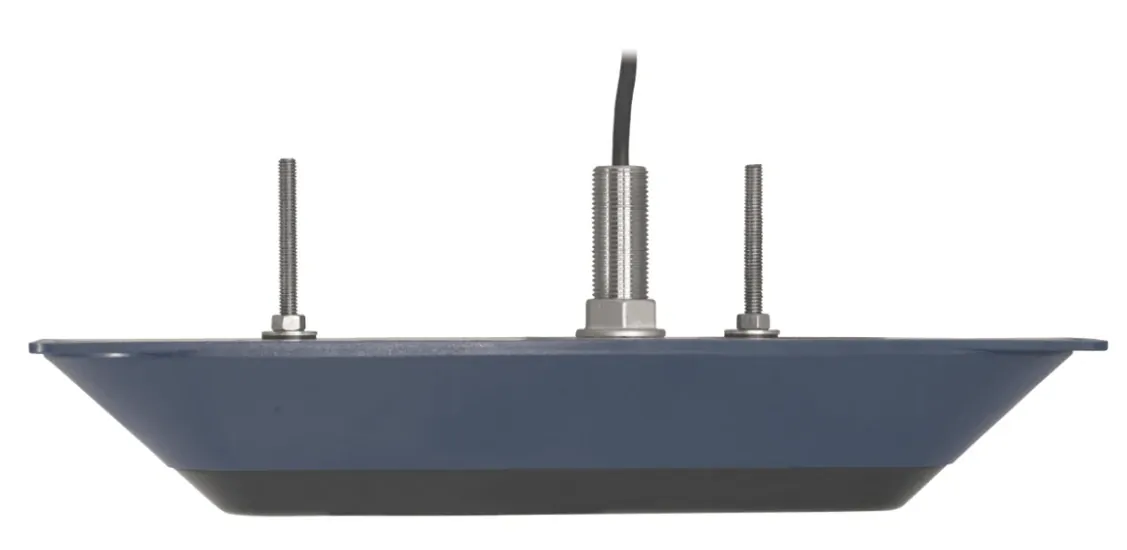

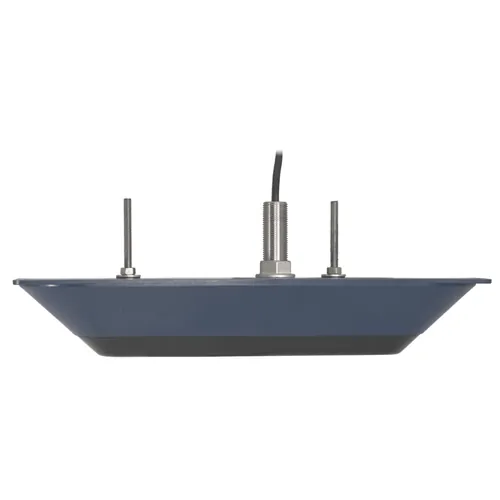

TotalScan™ Through-Hull Transducer with Medium/High Chirp and 455/800kHz Down and SideScan.

TotalScan thru hull transducer with Medium and High CHIRP. Single transducer. Use the fairing block if the deadrise angle of the hull exceeds 10 degrees. The fairing can accommodate a dead rise angle of up to 22 degrees.

The TotalScan™ Transducer allows anglers to access Medium CHIRP, High CHIRP, DownScan™ Imaging and StructureScan™ using only a single transducer.

Key Features

All-in-one transducer featuring Broadband, CHIRP, StructureScan HD and DownScan Imaging™ Supports 83/200kHz Broadband sonar frequencies Supports Medium and High CHIRP frequencies Supports 455/800kHz StructureScan® frequencies Supports Water Temperature
