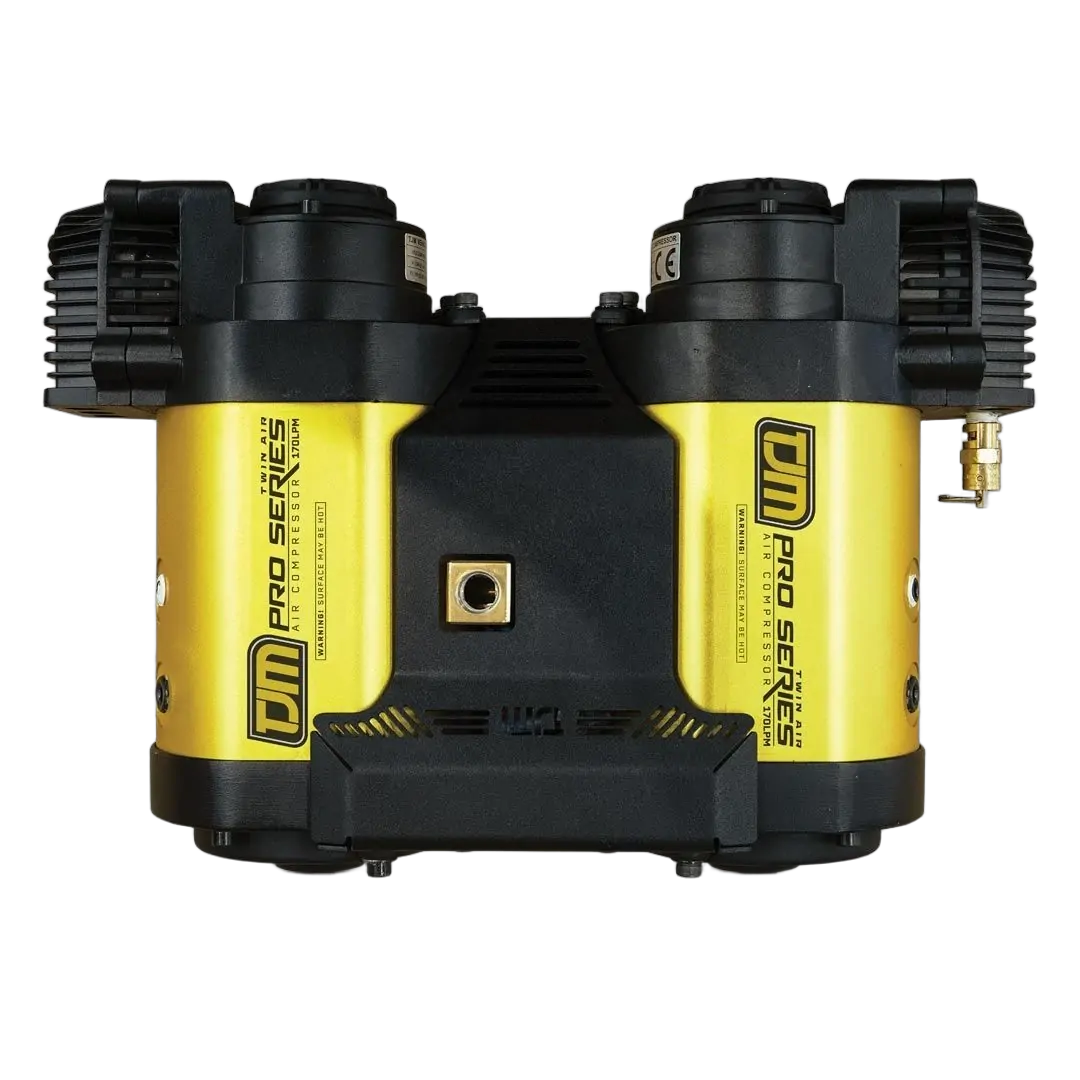

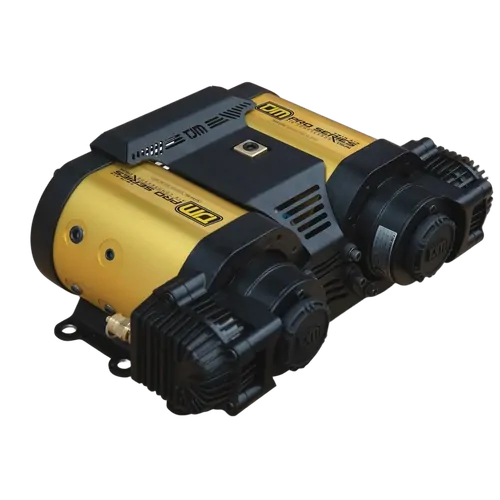

Stay ahead of the pack with a TJM Pro Series Twin Air Compressor. It delivers a blazing 170 liters-per-minute for lightning-fast inflation, which is made possible thanks to its powerful internal componentry and advanced convection cooling system (patent no. 2019202008). Each TJM Pro Series Twin Air Compressor’s exterior is constructed from a careful combination of cast and extruded aluminum. This seamless anodised exterior provides superior protection for its oversized internals, hard-anodized cylinder bore and Teflon-impregnated piston seal. The Pro Series Twin can be mounted vertically or horizontally, while it includes multiple tyre inflation points, auxiliary ports and a Pressure Cut-Out switch for exceptional utility. TJM Pro Series Airline Kit not included.
Specifications
Flow rate: | 170LPM |
Tyre inflation: | 10-40PSI (285/75/R16) |
External ports: | 4 x 1/8” BSPT, fits TJM Pro Locker actuator and pressure switch | 5 x ¼” BSPT (sized for female hose connector supplied in Airline Kit) | 1 x 1/8” NPT port for safety relief valve |
Air tank: | 0.48L with integrated air tank extrusion |
Independent power output: | Dual fuse and relays allows unit to operate independently (one unit fails, one unit continues to operate) |
Mounting: | Vertically or horizontally |
Bore size: | 48mm cylinder bore with oversized internals |
Fuse rating: | 2x 40A (ANS type) |
Cooling system (patent pending): | Convection cooling with internal fan |
Supply voltage: | 12V |
Warranty: | 3 years |
SKU | 013COMPVPROTAA |
---|---|
Barcode # | OEBC694777 |
Brand | TJM |
Shipping Weight | 14.6000kg |
Shipping Width | 0.340m |
Shipping Height | 0.430m |
Shipping Length | 0.200m |
Shipping Cubic | 0.029240000m3 |
