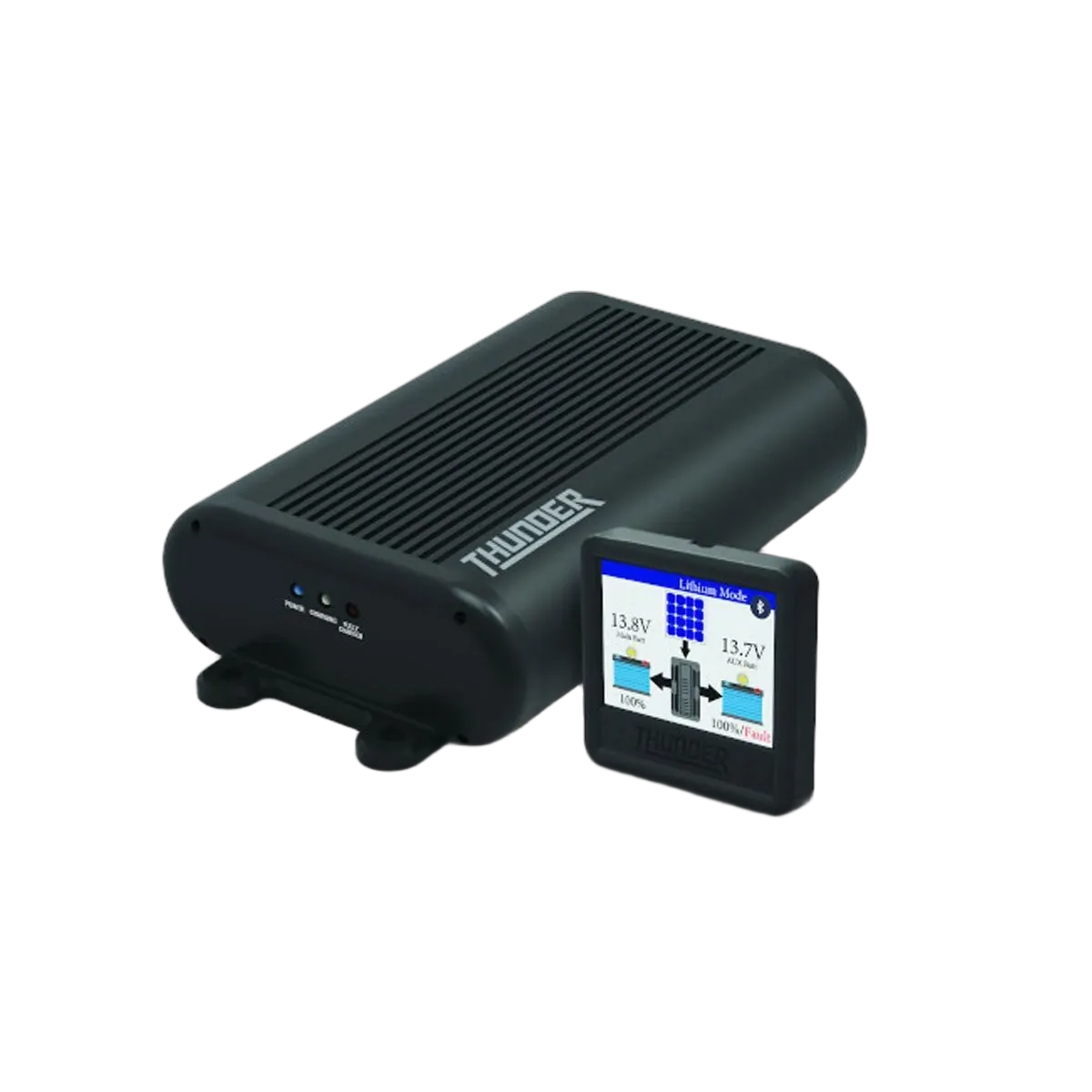

20A DC-DC Charger
Compact in size and easy to install, the new Thunder DC-DC Charger is the smart way to charge your auxiliary battery, no matter your vehicle. Utilising a unique pulse charging algorithm with the intelligence to determine the best charge rate for your auxiliary battery, this charger is the perfect addition to any
vehicle requiring the management of a dual battery setup.

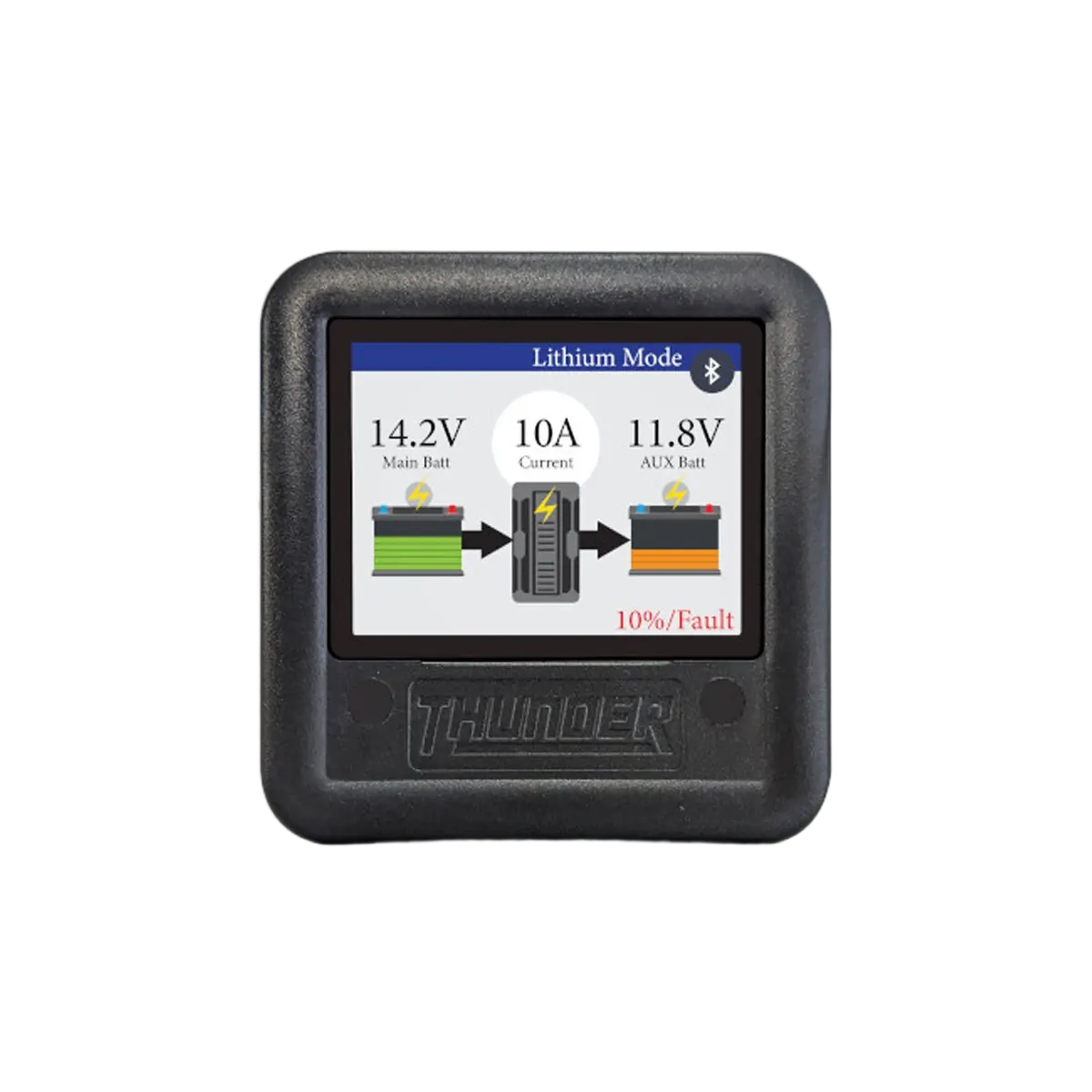

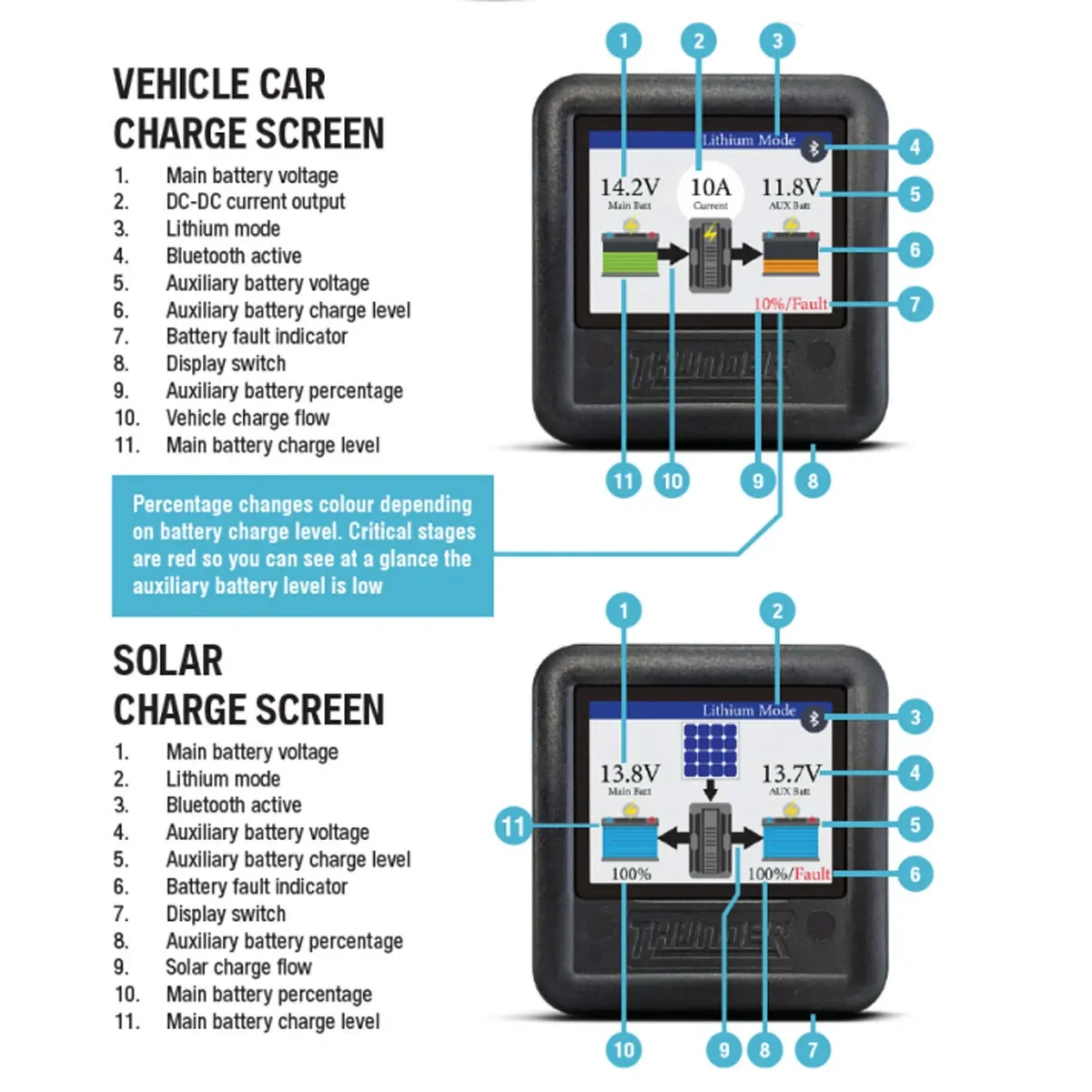

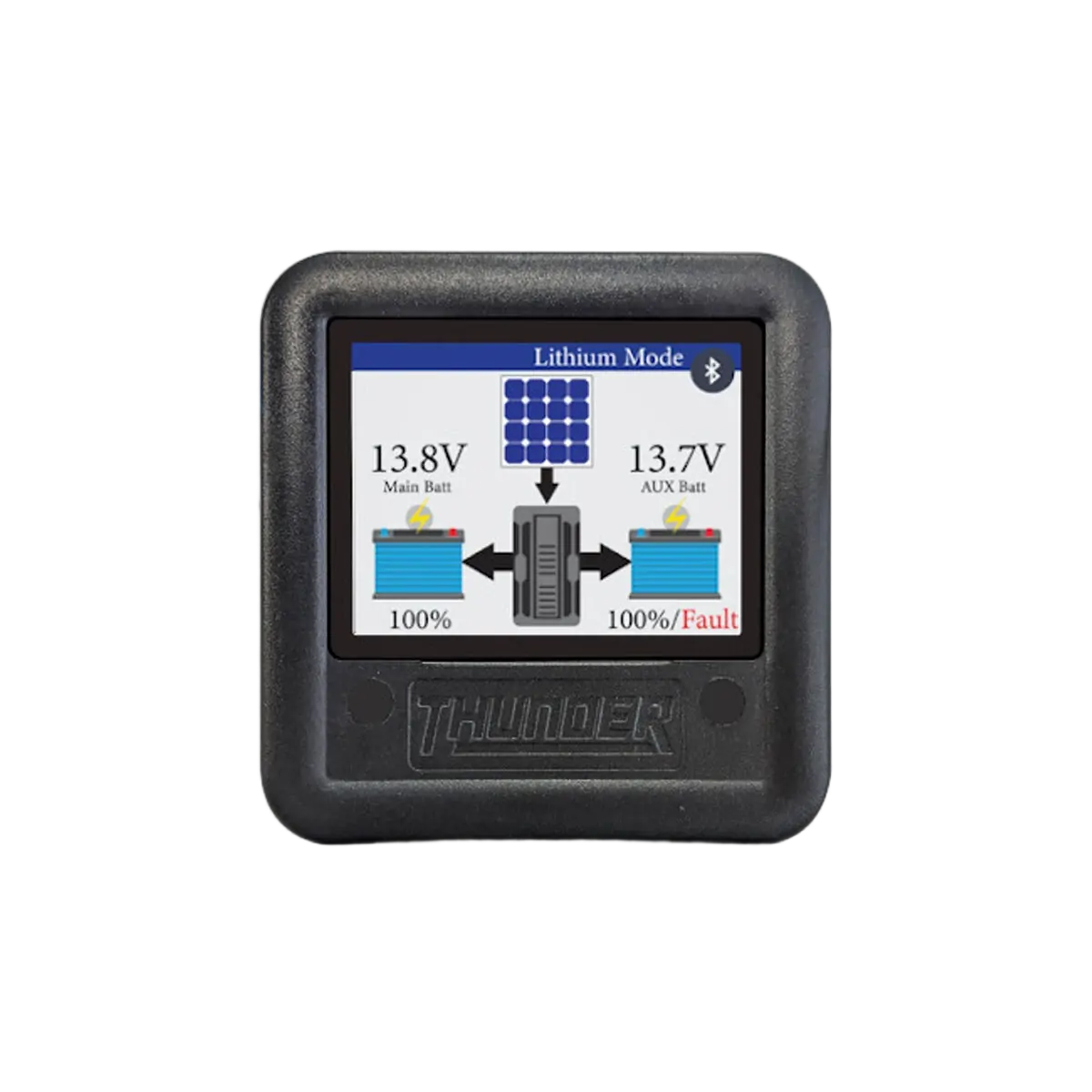

One of the greatest features of the new DC-DC Battery Charger, is the new remote Bluetooth LCD screen; giving you better visibility on your battery’s state of charge. The new charger also features Modular Sense Technology (MST) allowing you to link multiple units together giving you a 20, 40 or 60A output without having to outlay for a larger unit upfront.
Suitable for Gel, AGM, Calcium, Lead Acid and now Lithium batteries, Thunder’s new DC-DC Charger is an ideal addition for caravans, camper trailers and 4WD’s.
Product Features:
- Sleek new heavy duty aluminium case
- Easy to read remote mount Bluetooth LCD screen
- 12-24V System input with 12V output
- Upgraded operating temperature of 0-90° allowing under bonnet mounting
- IP67 Rated – water and dust proof, ready for harsh environments
- New linkable design to easily increase amperage outputs using Modular Sense Technology
- Microchip monitoring and control fully automates high frequency multistage charging
- Pulse mode technology that reduces oxidation and minimises temperature equating to longer battery life
- Unit will automatically change charge rate mapping for GEL, AGM and standard Lead Acid
- New Lithium battery charging profile option
- Internal charger temperature monitoring and power output control
- Over charging, short circuit and over temperature protection
- Reverse polarity protection
- New 50V solar input with MPPT regulated output allowing 300W of solar
Specifications:
- Output: 20A
- Input Fuse Rating Minimum: 30A
- Output Fuse Rating Minimum: 30A
- Vehicle Input Voltage Range: 12.2V – 26V *(If voltage increases over 26V the Thunder DC-DC will shut off, reset will be needed)
- Minimum/Maximum Charging Voltages: 13.1V – 15.2V (stops charging when alternator or vehicle battery below 12.2V)
- Solar Input Voltage Range: 13V-50V
- Maximum Solar Watt Input: 300W *(exceeding 300W of Solar will damage the Thunder DC-DC charger)
- Charging Style: 8 stage from vehicle and 3 stage from solar
- Operating Temperature: 0°C to 90°C (current de-rates after 90°)
- IP Rating: IP67
- Float Voltage: 13.8V
- Standby Current: 10mA
- Battery Range: 18 to 250Ah
- Dimensions (LxWxH): Charger: 190x125x35mm / Display: 75x75x20mm
SKU | TDR02021 |
---|---|
Barcode # | 9324310093943 |
Brand | Thunder |
Shipping Weight | 1.5000kg |
