The Wall Kit 270 XT MAX Awning is the perfect solution if you want more privacy & protection from the elements for your270 XT MAX Awningset-up.

The Wall Kit 270 XT MAX Awning comes as a complete kit with 5 main walls and a 6 wall that can be used to screen off either the front arm area, or to section off an area underneath the awning.

The kit comes wth 6 aluminium telescopic poles.

Wall Kit 270 XT MAX Awning - Overview

The Wall Kit 270 XT MAX Awning is ideal If you are looking to provide privacy or a wind break and protection from the elements to your270 XT MAX™ Awningset-up,

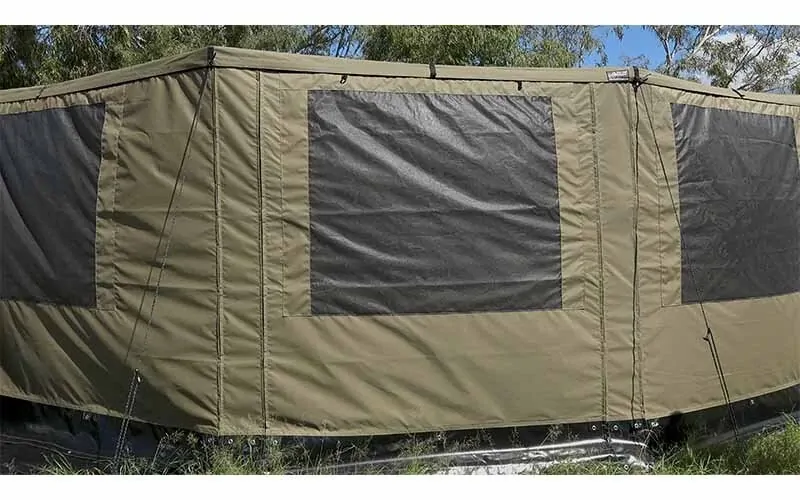

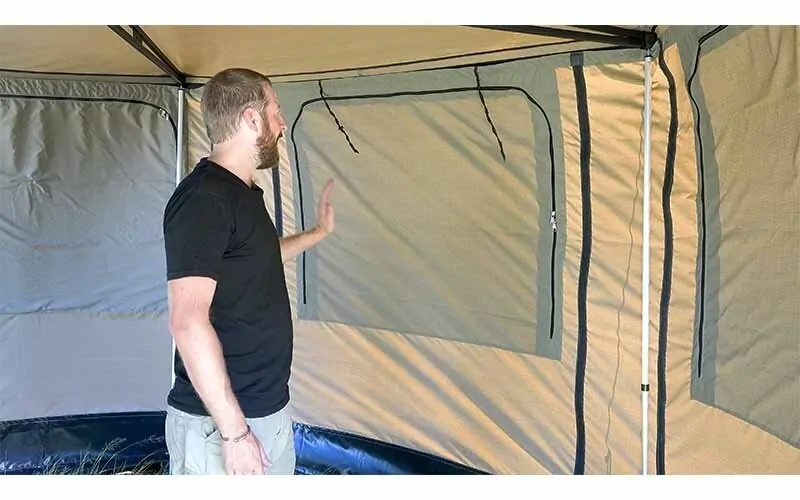

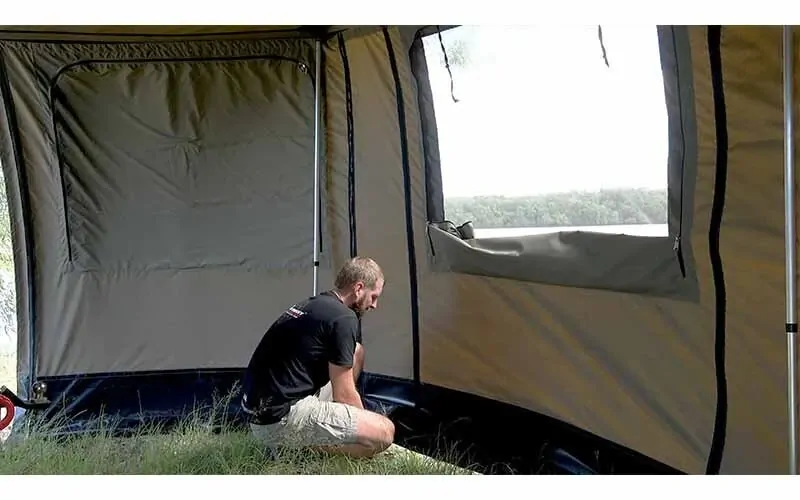

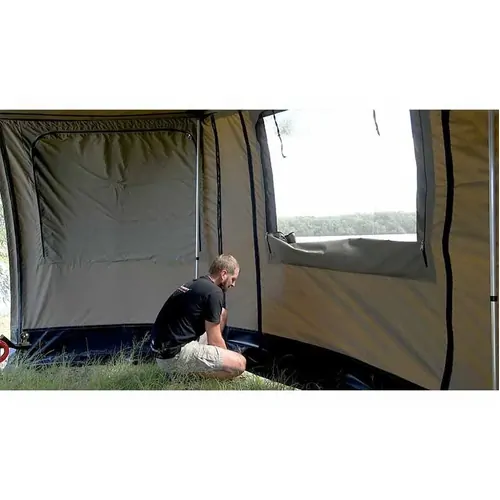

The Wall Kit 270 XT MAX Awning come as a complete kit with five main walls and telescopic poles. Three of the walls have a large window in them and two walls have a large door opening that rolls up to the top, the door also has a large window in it. These door sections can also be pegged out horizontally to provide additional shade (pegs ropes and poles for this are not supplied). The windows all have high quality midge mesh on the outside and a canvas flap that zips up from the bottom enabling easy management of airflow from the inside. There is also a solid wall supplied that is designed to be attached to the front folding arm on the awning, this wall provides privacy and shelter for the opening above the vehicles bonnet. The Wall Kit 270 XT MAX Awning also comes with a unique privacy feature that enables you to attach one of your walls directly to one of the trussed awning arms to section off an area underneath the awning to use as either a changing area, shower or WC.

The canvas used in the Wall Kit 270 XT MAX Awning is a heavy duty 260gsm rip-stop polyesters canvas that is acrylic impregnated for waterproofing. There is a 50mm wide Velcro strip across the top edge for attaching to the awning and the walls are attached to each other using a quality YKK plastic zip. The walls have a large 400mm high 600gsm PVC 'mud skirt' running around the base of the walls, the variable tie down points for the walls are stitched into the PVC skits to accomodate different vehicle heights. The poles that are supplied with the walls extend to a maximum height of 2.6m, these are inserted into the pre-drilled holes in the trussed arms of the awning, and for the rear arm there is a loop supplied that is used to secure the pole.

The Wall Kit 270 XT MAX Awning comes with a large canvas storage bag for the walls and the poles come in their own canvas bag. All storage bags are made from our heavy-duty rip stop canvas and have YKK zips.
