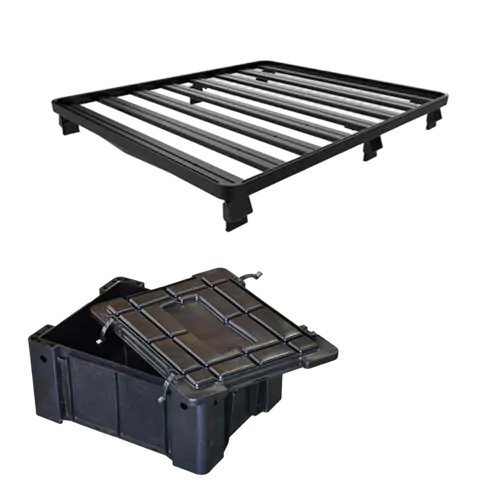

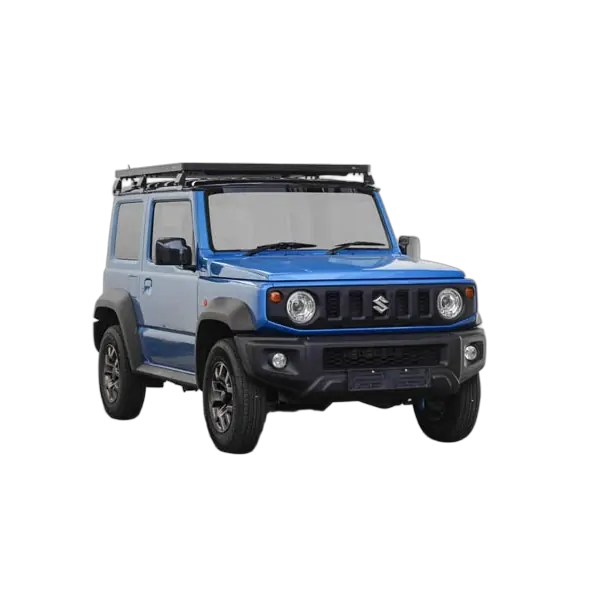

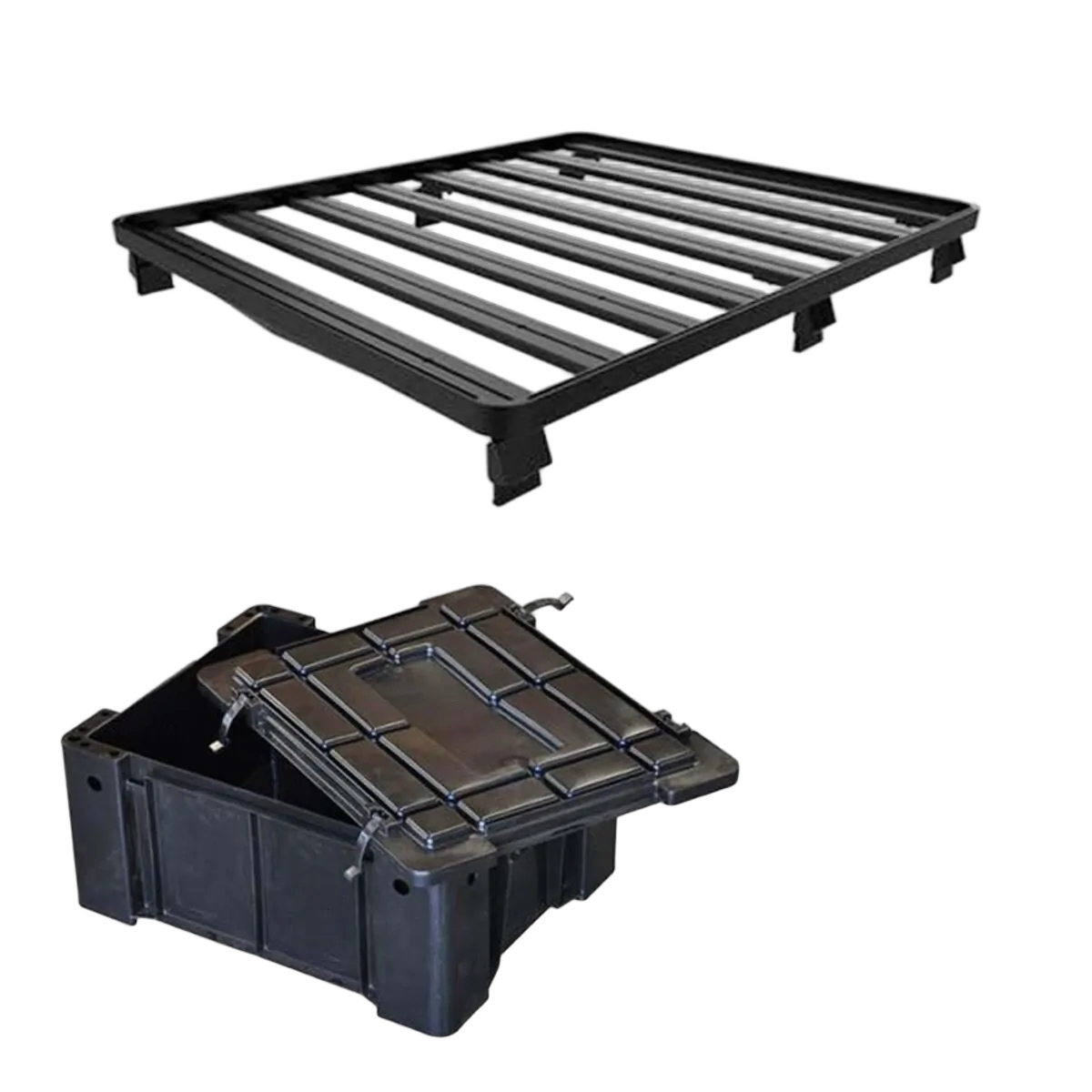

To suit: Suzuki JimnyThis 1560mm/61.4" long, full-size, Slimline II cargo carrying roof rack kit for the Suzuki Jimny 2018+ contains Slimline II Tray and Wind Deflector, as well as 6 Gutter Mount Legs for mounting the Tray to the vehicle. Installs easily with no drilling required.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

Kit contents:

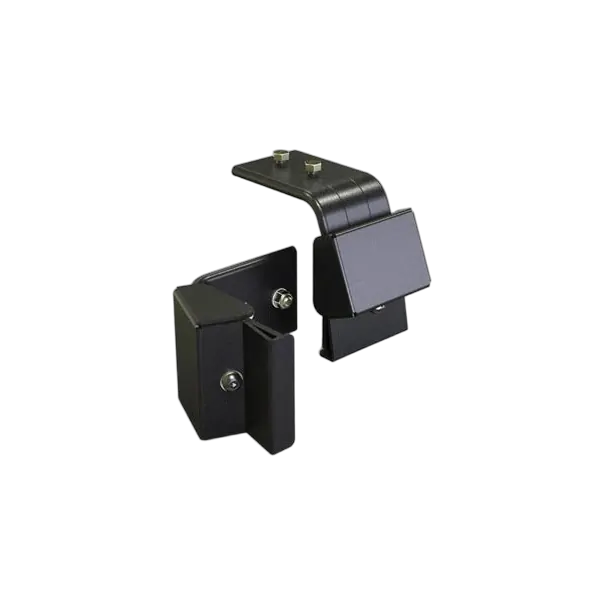

• 3 x LASS102 - No 2 Leg 130mm (Pair) - by Front Runner
• 1 x RRSTG08 - Slimline II Tray - 1345mm(W) X 1560mm(L) - by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel

Product specifications:

• Approximate Installed Weight 26kg (58lbs)

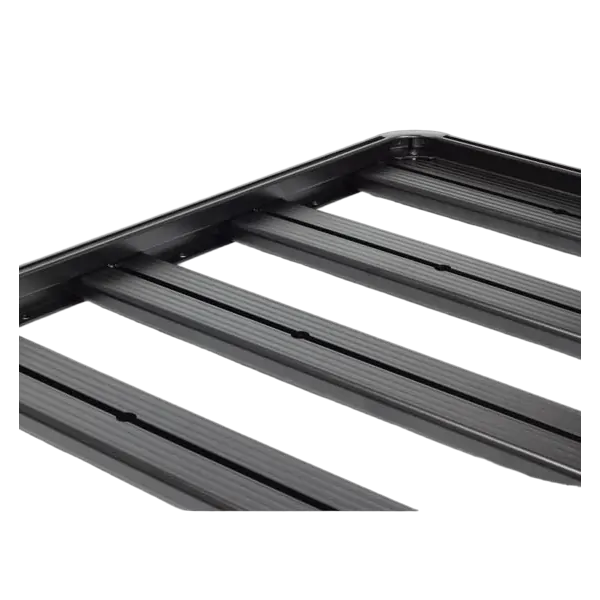

• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• Shipping Dimensions:
  Width 455mm (18")
  Length 1610mm (63")
  Height 250mm (10")
• Shipping Weight:
  Weight 30.4kg (66.9lbs)

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

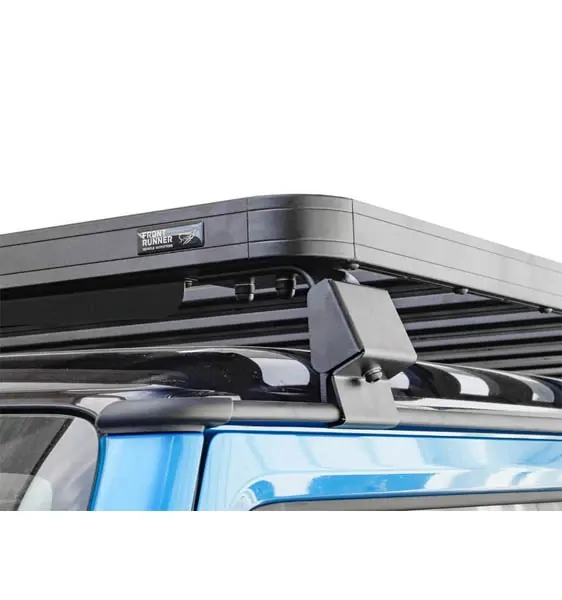

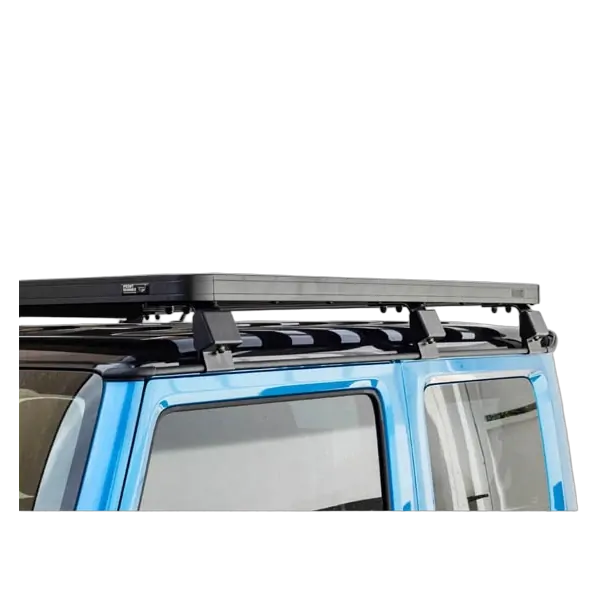

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
