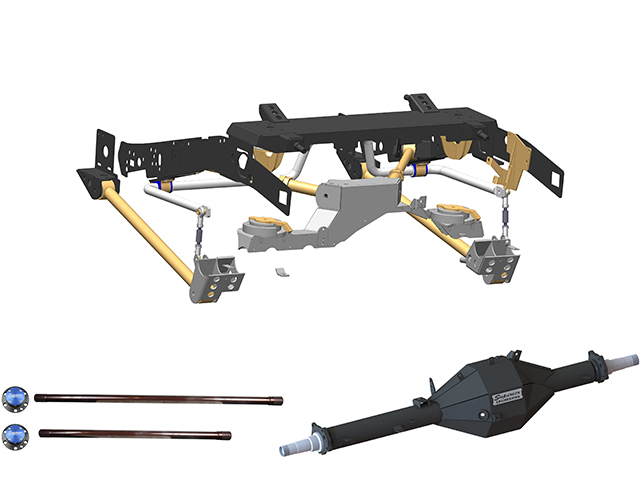

Superior Weld-in\ Coil Conversion VSB14 Approved Base Kit with Track Corrected Chromoly Diamond\ Diff Housing Suitable For Toyota LandCruiser 79 Series Gen 2 (VSC Models)
\ \Note: Superior Engineering highly recommends the use of an EPRS rust prevention unit when fitting any weld on chassis components.
\
The Use of Electronic Rust Prevention can assist in the prevention of rust formation.
\
Superior recommends using an 8 Coupler system for most vehicles, please see the related products tab above.
The Superior Engineering LandCruiser 79 coil kits can be supplied to suit a wide range of applications. We have packages and options from – VSB / State approved kits that use your factory housing in either Bolt-In or Weld-In to our bigger kits that can be Federally approved. These larger Federally approved kits allow a metric equivalent or imperial 35†tire, 4†suspension lift kit, 4-tonne GVM, Wide-Track Chromoly housing.
\ \With so many options available Superior Engineering can supply a kit to suit just about any application, whether you’re just a weekend wheeler that has no weight and puts the dog in the back, a tradie that is loaded through the week and unloaded on the weekends or a fully kitted-out 4T+ tourer.
\ \The Ultimate diff housing starts with 4140 Chromoly 13.5mm wall housing tubes that are ~900Mpa average Yield Strength where our competition uses ~6mm wall carbon hollow bar that is ~470Mpa, meaning just in the tubes alone a Superior Engineering housing is almost double the strength over our competitors. FEA tests were completed with a 15-tonne load on the rear axle, and even then they only showed a deflection in the housing of less than 1mm, no other brand of LandCruiser housing comes close!
\ \For more detailed information please Click Here
\ \\ \
FEATURES & HIGHLIGHTS
\ \- \
- Weld-In Kit Featuring 4 x Chassis Side Strengthening Braces \
- Heavy Duty Sway bar & Coil Tower Brace \
- Uses Factory Mounting Locations For A Precise Fit \
- Supplied Pre-Fabricated For An Easy Installation \
- Improved Roll Axis For Tyre Clearance \
- Increased Wheel Travel & Articulation \
- Adjustable Upper Control Arms \
- 40mm OD Fixed Lower Control Arms \
- Reduced Bush Bind Over A 5-Link \
- Compatible with Coil Air Bags \
- 4-Link Rear Suspension Setup \
- Fully Adjustable Pinion Angle \
- Provides More Precise Handling \
- Improved Comfort & Ride \
- 350 Grade Steel Mounts \
- Supplied with Sway Bar \
- Will work on up to 5†lift \
- Superior Track Corrected Chromoly Diamond Diff Housing, with a Higher load rating than competitors at 3150kg \
Kit Contains
\ \- \
- Side Chassis Brace \
- Sway Bar Kit \
- Upper Control Arm Mounts (Diff and Chassis) \
- Lower Control Arm Fixed Pins \
- Lower Control Arm/Shock Mount \
- Coil Tower/Bracing \
- Lower Coil Mounts \
- Upper Adjustable Control Arms \
- Lower Control Arms \
- Handbrake Relocation Bracketry \
- All Required Bolts and Fasteners \
- Superior Engineering Track Corrected Chromoly Diamond Diff Housing, with a Higher load rating than competitors at 3150kg \
NOTE: Some modifications to the rear of the exhaust system will be required to fit this kit.
\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \NOTE: The welding of this kit must meet or exceed Australian Standard AS 1554 Structural steel
\
welding Category SP. In general, for approval purposes, this part needs to be welded by a qualified
\
welded who has performed and understands the correct welding procedure that is required.
For warranty reasons, when fitting a lift kit you should always fill out a "Fitment Form".
\SKU | SE-33913 |
---|---|
Barcode # | OEBC559941 |
Brand | superior engineering |
Shipping Weight | 404.0100kg |
Shipping Width | 1.400m |
Shipping Height | 1.200m |
Shipping Length | 1.800m |
