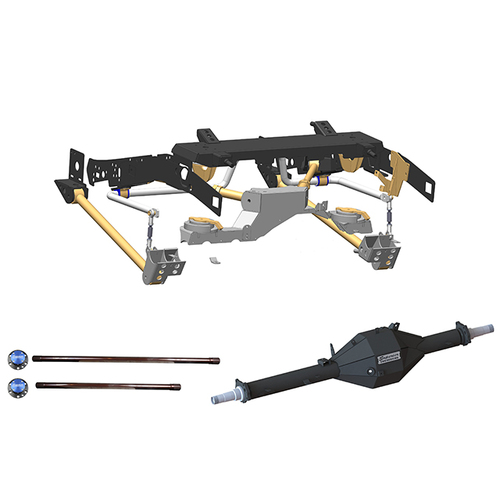

Superior Weld-in\ Coil Conversion VSB14 Approved Base Kit with Track Corrected Chromoly Diamond\ Diff Housing Suitable For Toyota LandCruiser 79 Series Gen 1 (Non-VSC Models)

\ \

Note: Superior Engineering highly recommends the use of an EPRS rust prevention unit when fitting any weld on chassis components.
\ The Use of Electronic Rust Prevention can assist in the prevention of rust formation.
\ Superior recommends using an 8 Coupler system for most vehicles, please see the related products tab above.

\ \

\ \

The Superior Engineering LandCruiser 79 coil kits can be supplied to suit a wide range of applications. We have packages and options from – VSB / State approved kits that use your factory housing in either Bolt-In or Weld-In to our bigger kits that can be Federally approved. These larger Federally approved kits allow a metric equivalent or imperial 35” tire, 4” suspension lift kit, 4-tonne GVM, Wide-Track Chromoly housing.

\ \

With so many options available Superior Engineering can supply a kit to suit just about any application, whether you’re just a weekend wheeler that has no weight and puts the dog in the back, a tradie that is loaded through the week and unloaded on the weekends or a fully kitted-out 4T+ tourer.

\ \

The Ultimate diff housing starts with 4140 Chromoly 13.5mm wall housing tubes that are ~900Mpa average Yield Strength where our competition uses ~6mm wall carbon hollow bar that is ~470Mpa, meaning just in the tubes alone a Superior Engineering housing are almost double the strength over our competitors. FEA tests were completed with 15-tonne load on the rear axle, and even then they only showed a deflection in the housing of less than 1mm, no other brand LandCruiser housing come close!

\ \

For more detailed information please Click Here

\ \



\ \

FEATURES & HIGHLIGHTS

\ \

\
• Weld-In Kit Featuring 4 x Chassis Side Strengthening Braces
\
• Heavy Duty Sway bar & Coil Tower Brace
\
• Uses Factory Mounting Locations For A Precise Fit
\
• Supplied Pre-Fabricated For An Easy Installation
\
• Improved Roll Axis For Tyre Clearance
\
• Increased Wheel Travel & Articulation
\
• Adjustable Upper Control Arms
\
• 40mm OD Fixed Lower Control Arms
\
• Reduced Bush Bind Over A 5-Link
\
• Compatible with Coil Air Bags
\
• 4-Link Rear Suspension Setup
\
• Fully Adjustable Pinion Angle
\
• Provides More Precise Handling
\
• Improved Comfort & Ride
\
• 350 Grade Steel Mounts
\
• Supplied with Sway Bar
\
• Will work on up to 5” lift
\
• Superior Track Corrected Chromoly Diamond Diff Housing, with a Higher load rating than competitors at 3150kg
\

\ \

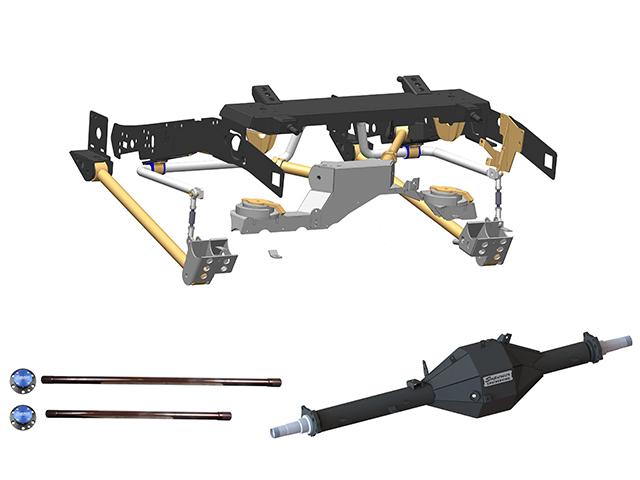

Kit Contains

\ \

\
• Side Chassis Brace
\
• Sway Bar Kit
\
• Upper Control Arm Mounts (Diff and Chassis)
\
• Lower Control Arm Fixed Pins
\
• Lower Control Arm/Shock Mount
\
• Coil Tower/Bracing
\
• Lower Coil Mounts
\
• Upper Adjustable Control Arms
\
• Lower Control Arms
\
• Handbrake Relocation Bracketry
\
• All Required Bolts and Fasteners
\
• Superior Engineering Track Corrected Chromoly Diamond Diff Housing, with a Higher load rating than competitors at 3150kg
\

\ \

NOTE: Some modifications to the rear of the exhaust system will be required to fit this kit.

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

NOTE: The welding of this kit must meet or exceed Australian Standard AS 1554 Structural steel
\ welding Category SP. In general, for approval purposes, this part needs to be welded by a qualified
\ welded who has performed and understands the correct welding procedure that is required.

\ \

For warranty reasons, when fitting a lift kit you should always fill out a "Fitment Form".

\
