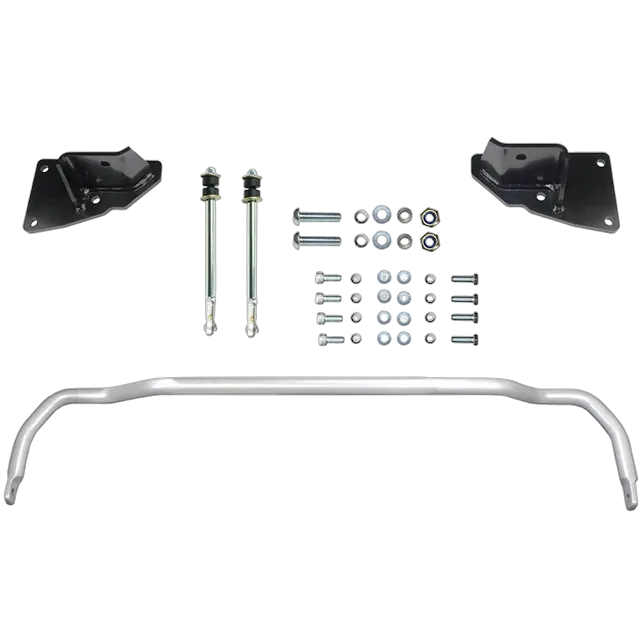

Superior Engineering is proud to announce our Front Super Flex Sway Bar Kit Suitable For Nissan GQ/GU Patrol.

The patented design and superior materials of this kit will permit your Patrol unbelievable levels of flex and still retain great on-road handling.

With the Super Flex, Sway Bars fitted sway bar disconnects are almost a thing of the past.

Combined with the correct suspension components these Super Flex Sway Bars will have you out flexing your friends and still have excellent on-road handling.

While your friends are under their cars connecting and disconnecting their sway bars, you can be ready with full flex with no need to crawl in the dirt.

And when it’s time to drive home your vehicle will still have the full effect of having a sway bar fitted, So no more "NO SWAY BAR" scary moments.

Please Read: Choosing the correct Sway Bar Design.
\ Drop Down Style - This sway bar offers the most clearance around the exhaust and tail shaft but offers less ground clearance than the straight style sway bar.
\
\

Straight Style - This sway bar can be fitted when using Drop Boxes or Hybrid Style Arms.
\ The straight style sway bar cannot be used on pin style Radius Arms as you will not have enough clearance for the exhaust or tail shaft.

\

NOTE: Recommended Maximum Bar Angle is 25 Degree’s(Exceeding this angle can void warranty)
\ Using these with 5link or any other system other than Standard, Radius or Super Flex arms will void the warranty.
\ These sway bars are designed only to be used with Standard Radius, Superior or other Aftermarket Radius,
\ Superior Super Flex Radius Arms and Superior or other Aftermarket Hybrid Radius Arms

Superior Engineering Radius Arms now come drilled to suit 85mm sway bar saddles and ABS lines.

The Green GU below is fitted with 2" coils, 3" AmadaXtreme Shocks and 2 degree Castor Bushes

The GQ if fitted with 3" coils, 4" Procomp Shocks and Superior Engineering Superflex Arms

IN SOME IMAGES THE VEHICLES HAVE THE SHOCKS REMOVED TO SHOW THE MAXIMUM UNRESTRICTED FLEX AND SOME IMAGES SHOW AN OLDER DESIGN

Please note: The fitment of the rear sway bar mounts are designed for those vehicles with OE style sub tanks or standard size tanks.

Attention should also be paid to where the mounting position is for the rear main exhaust bracket, in some circumstances it may need to be adjusted or modified for clearance to the passenger side link and mount.

ALSO, THIS SWAYBAR KIT MAY NOT WORK ON SWB VEHICLES

Patent Application number: 2014100156

Design Application number: 10785/2014

This product has passed testing for approval under the NCOP system.
\ See the flow chart below.
\
