Australian Made and Owned

\ \

600% Stronger then H-Beam Radius Arms

\ \ \

Superior Superflex Radius Arm

\ \

Lifetime Warranty

\ \

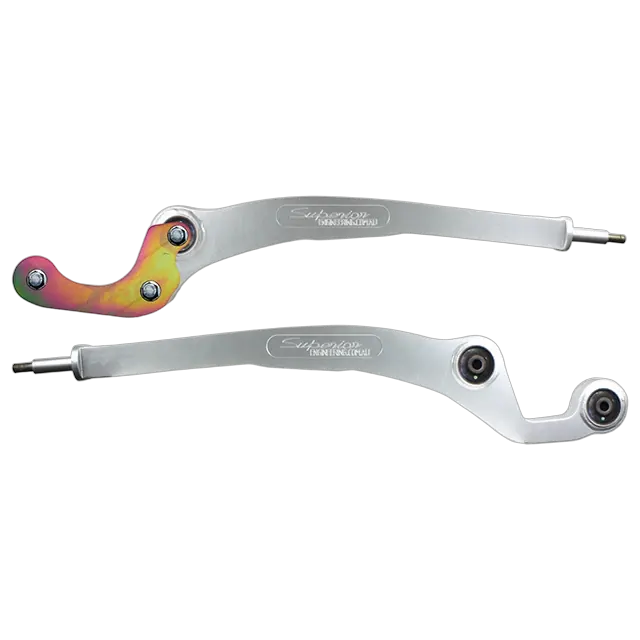

This is a pair of Superior Engineering Superflex Radius Arms suitable for a GQ/GU Nissan Patrol (Offroad Series) with a 2-6 inch lift.

\ \

Superior Engineering SUPERFLEX Radius arms were designed in 2008 for Competition Trucks to benefit from maximum articulation as well as Excellent High-Speed Handling as well.

\ \

Since their introduction to the Australian and overseas market, there has been a huge trend towards choosing Superior Engineering SUPERFLEX Arms over the standard Radius Arm design.

\ \

Why not have extra flex as well as good on-road handling?

\ \

NOTE: To fit Sway Bar Mounts you will require 85mm sway bar mounts and bushes.
\ If you do not have sway bar mounts or you have 75mm mounts you can purchase the required ones below.\
85mm Sway Bar Mount
\ Sway Bar Bushes to suit 85mm Mounts

\ \

Features:

\ \
    \
  • Benefits of Superior Engineering SUPERFLEX Drop Radius Arms
  • \
  • Manufactured from High Tensile Plate
  • \
  • High Tensile Plate Bush Eyes
  • \
  • Massive 32mm main Beam thickness for maximum strength
  • \
  • Rubber Bushes pre-fitted into arms
  • \
  • Laser-cut to precise measurement and caster location
  • \
  • Authentic Superior Engineering Logo machined into the side of Arms
  • \
  • SUPERFLEX ARMS are manufactured Suitable For various lifts
  • \
  • Sandblasted with rust prevention applied
  • \
  • Powder Coated for maximum durability and finish
  • \
  • High Tensile Plate will not crack unlike Cast Radius Arms
  • \
  • Sway Bar Adapter plate bracket and bolts have a SA5 Zinc coating for rust prevention
  • \
  • Allows vehicle to track correctly on road due to correct caster
  • \
  • Maximum Clearance between the Tie Rod and the Radius Arms
  • \
  • Factory bushes fit the SUPERFLEX ARMS, We don't use special size Bushes
  • \
  • Superior Engineering's Superflex arms are a Patented Design
  • \
  • Patent No's. 2008202797, 2010100451, 2011904187
  • \
  • 100% money-back Guarantee if you don't get more flex than your original or aftermarket Radius Arms!
  • \
\

\ \

Fig. 1 shows the Superior Arm deflecting only 4.1mm under load with real-world load points.
\ Fig. 2 shows the Competitor's Arm deflecting 24.91mm under the same load points and loads, almost the same as the width of the Arm itself.
\ Also of note is the Competitor's Arm deflected to a point that may cause metal fatigue over time, which may lead to total failure.

\ \



\ \

Cast radius arms are more vulnerable to breaking, leaving your vehicle undrivable and you stranded.

\ \

In the event of a major crash or major impact Superior Engineering Radius arms may bend but will never crack and fail

\ \

\

This product has passed testing for approval under the NCOP system.
\ See the flow chart below.

\ Approval flow chart

\ \

Below is a video of Nissan Patrol GU passing an LT2 Lane Change Test with ease, this test shows the Patrol passing the test loaded to GVM at 110km/h.
\ Proof that Superior Engineering Superflex and Radius Arms can still handle when on-road as well as the added flex off-road.

\ \

\ \

Note: Factory bump stops may need to be extended depending on the coils and shock combination used.
\ Due to the huge variances in different weights of vehicles/heights variances  and suspension combinations in
\ vehicles it is highly recommended to move your suspension in the full range of the
\ shock absorber compression/rebound travel and also taking into consideration coil bind,
\ check all areas for clearance issues,  if you require more assistance in this talk to one of our sales team for further advice

\ \

Please note that the rear Mushroom bushes are not supplied, and they can be purchased separately. CLICK HERE

\ \

Check out more information https://www.superiorengineering.com.au/the-science-behind-superflex-arms

\ \

NOTE: Please check ABS sensor lines (if fitted) are free to move through the full range of travel.

\ \ \

Below is a comparison chart showing different forms of Castor correction and how they compare in Cost, Flex, Handling and Offroad Ability.

\ \

Suspension component performance chart

\ \ \ \ \ \ \ \

\
SKU SE-28872
Barcode # OEBC559724
Brand Superior Engineering
Shipping Weight 41.0600kg
Shipping Width 0.100m
Shipping Height 1.100m
Shipping Length 0.300m

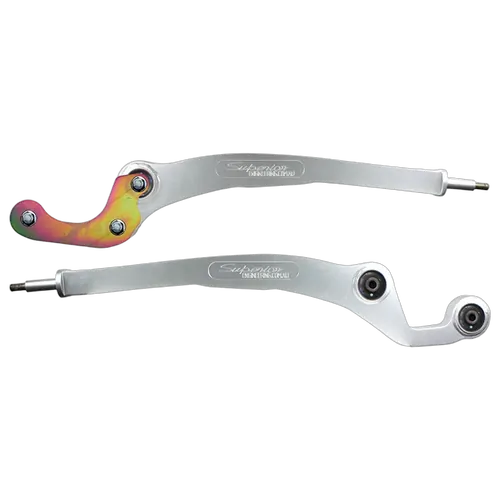

Superior Superflex Radius Arms Suitable For Nissan Patrol GQ/GU 2 Inch (50mm) Castor Correction

SKU: SE-28872
Sale price
$1,414.00
RRP $1,572.00
Earn 14,140 Outback Rewards Points
SALE ENDS
Sale price
$1,414.00
RRP $1,572.00
PayPal Checkout
4 payments of $353.50

afterpay More info.

Make 4 payments of $353.50 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $353.50

Calculate Shipping
